Calibrating the Touchscreen
In the event that you need to calibrate the touchscreen, follow these steps.

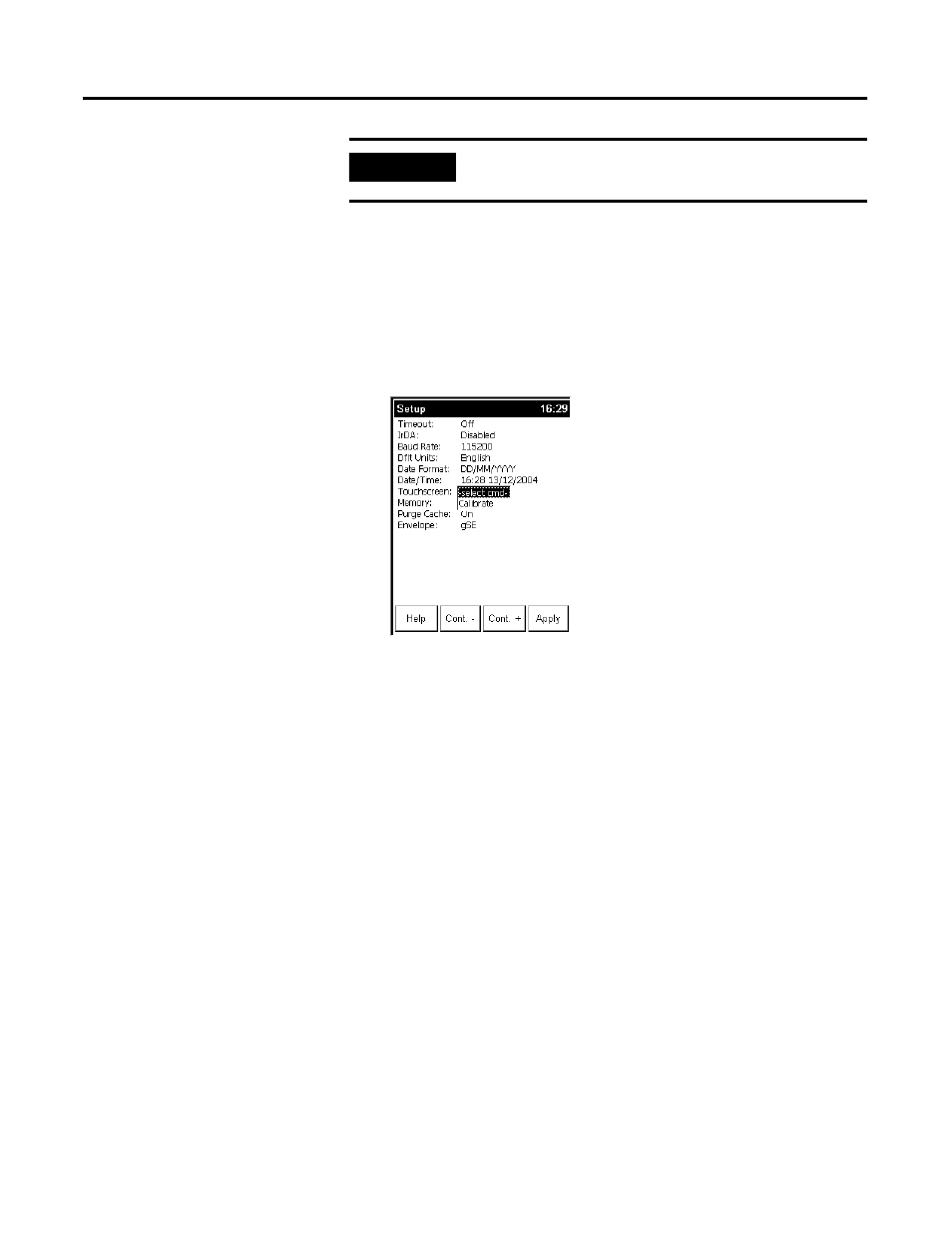

1. Select Instrument Setup from the Main Menu and press the
READ/OK key. The Setup screen appears.
2. Highlight Touchscreen and press the RIGHT ARROW key to display
the touchscreen options.
3. Select Calibrate and press the LEFT ARROW key. The calibration
routine starts.
4. Follow the instructions on the screen to complete the calibration
process.
5. When the calibration process is complete, the Instrument Setup screen
appears. Tap the Apply button to return to the Main Menu.
Viewing Settings for Current Measurement Definition
You can review the measurement definitions for the current measurement
point from the online help.
IMPORTANT
Any data held in internal memory is secure and will not be
lost nor destroyed during a hardware reset.
