Publication GMSI00-UM001A-EN-E - February 2005

20 The Enpac Ex

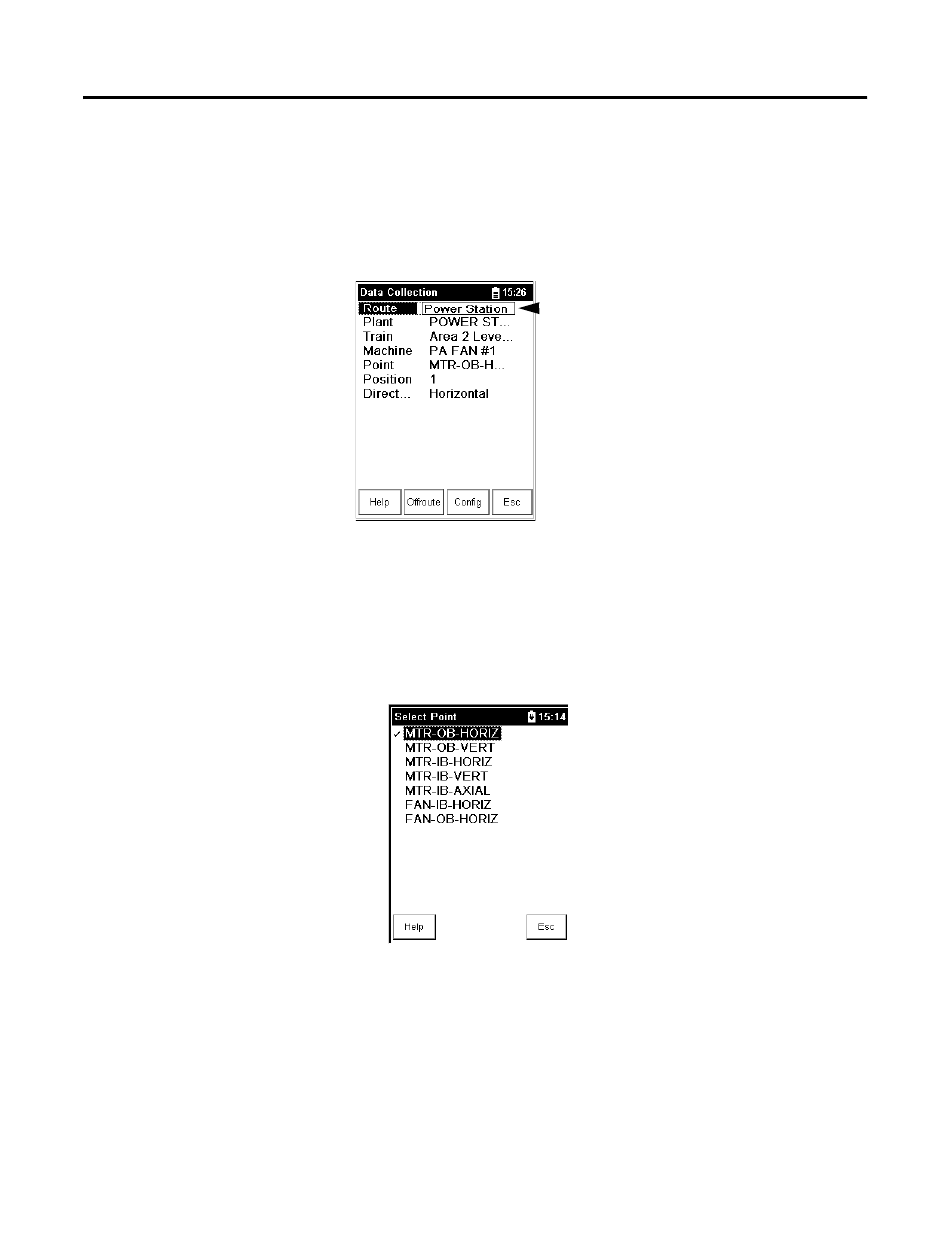

Data Collection Screen

The Data Collection screen allows you to navigate around the Routes loaded in
the data collector, collect and store route and off route data, and edit the data
collection options. To access the Data Collection screen, select Data
Collection
from the Main Menu.

To move around in the Data Collection screen, follow these steps.

1. Highlight the item on the screen.

2. To display the next screen of information, for example a list of

measurement points, press the RIGHT ARROW key. A selection screen
appears.

3. To return to the previous screen, press the LEFT ARROW key.

When you are finished in the Data Collection screen, tap the Esc button to
return to the Main Menu. Refer to Chapter 5 for more information about data
collection.

To highlight an item:

• press the UP or DOWN

ARROW key

• tap the item on the

touchscreen with the stylus
