Publication GMSI00-UM001A-EN-E - February 2005

Setting Up Measurements 41

The table for the transducer specification in the STD (Hz) 2000 collection
specification would look like this.

Measurement Input Types

The input type is part of the transducer specification (Setup > Calibration).
The transducer is part of the collection specification (Setup > Collection).
You select the collection specification when you set up the measurement
definition.

Emonitor and the Enpac Ex support the following input types.

ICP Accel - Use for ICP accelerometers requiring current from a power

supply.

AC Coupled - Use for AC voltage measurements and non-ICP

accelerometers.

DC Coupled - Use for DC voltage measurements. This includes

numeric (process) measurements taken from a DC voltage output.

Manual Entry - Use for numeric (process) measurements where you

enter the value for the measurement with the data collector keyboard.

To specify an input type, select Setup > Calibration, then select the correct
Enpac from the Collector list. You can then assign Input types, Calibration,
and appropriate Units to the transducer you wish to use.

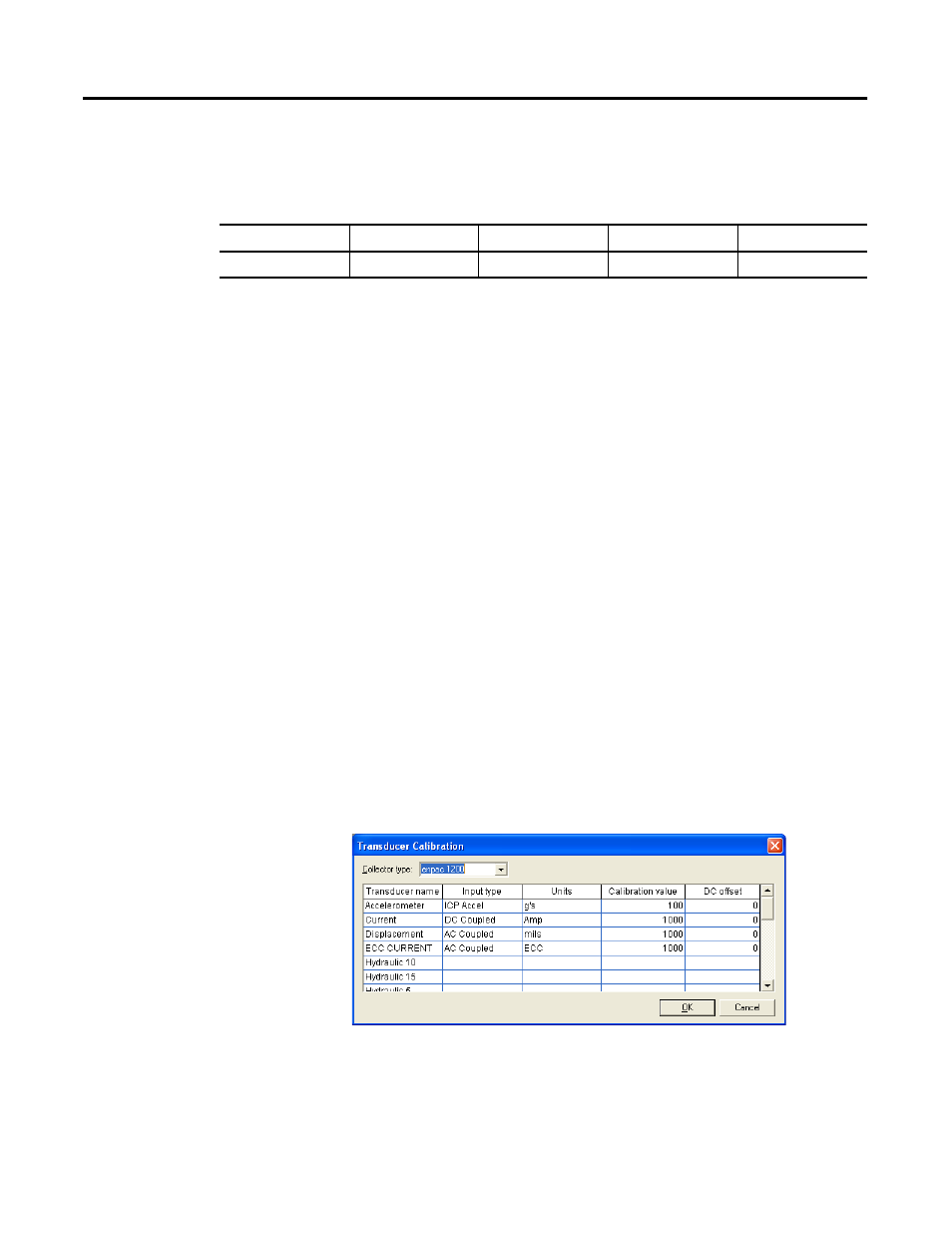

Figure 3.6 Transducer Calibration dialog box

Table 3.2 Transducer specification in STD (Hz) 2000 collection specification

Name

Base Unit

Input Type

Units

DC Offset

Accelerometer

Acceleration

ICP Accel

g’s

0
