A hardware reset allows you to reconfigure the Enpac Ex back to the factory
default setup. The reset switch is located behind the battery access panel on
the underside of the instrument. The reset switch can only be pressed using a
1/16th inch diameter pin or a straightened paper clip.

1. Press the ON/OFF key for a period of one second to power off the

Enpac Ex.

2. Using a flat head screwdriver, remove the two 1/4 turn fasteners on the

battery access panel.

3. Remove the battery access panel.

4. Press the Reset switch using a 1/16th inch diameter pin or a

straightened paper clip.

5. Replace the battery access panel and tighten the two 1/4 turn fasteners.

6. Press the ON/OFF key to power on the Enpac Ex. Allow at least thirty

seconds for the unit to reconfigure and activate the LCD display after
which the Instrument Setup screen appears.

IMPORTANT

The current date, time and some status information will be
lost, and the contrast setting will be returned to the default
setting following a hardware reset.

Refer to Setting the Date, Time, and Date Format on
page 22 for information on how to set date, time and date
format.

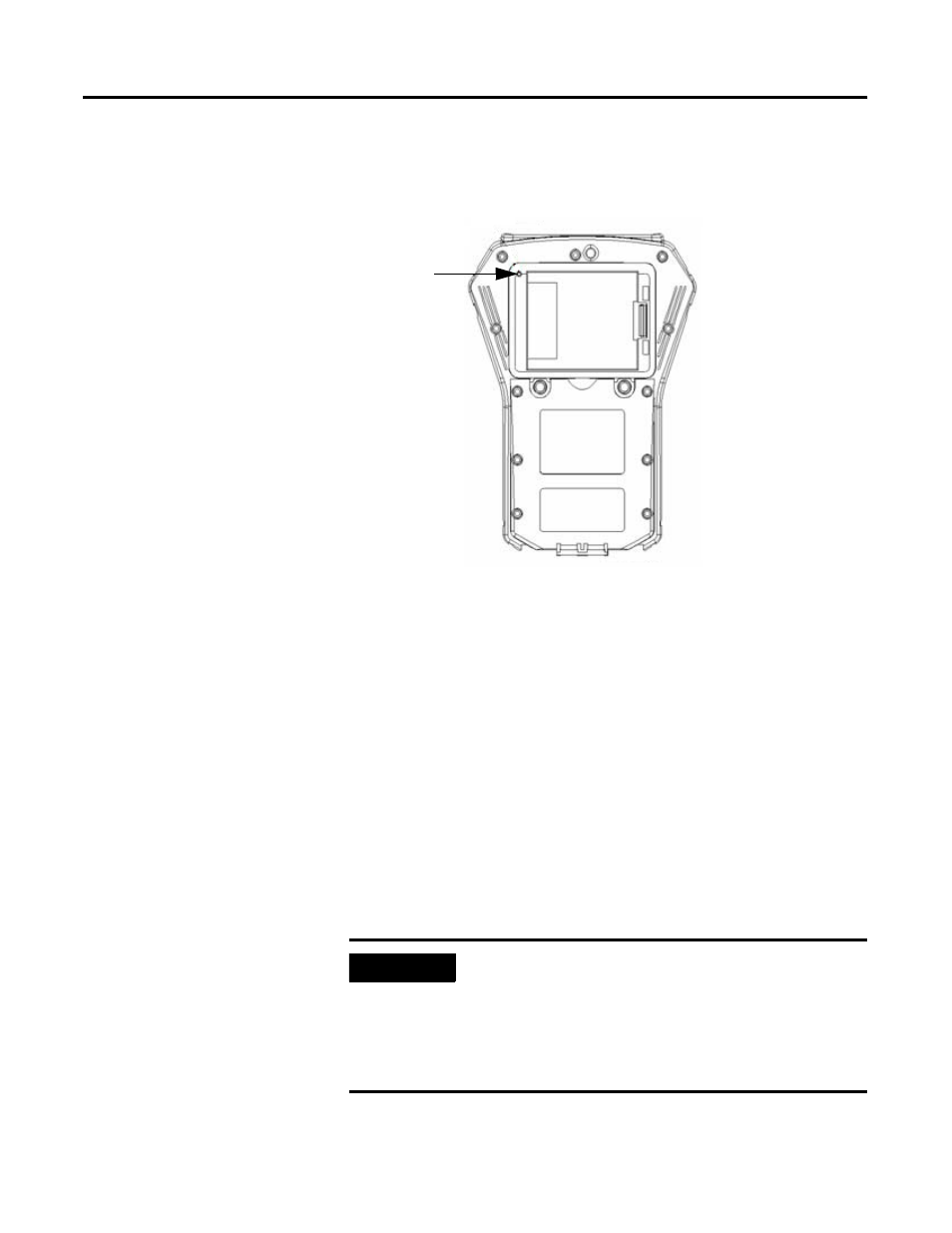

Reset switch
