Publication GMSI00-UM001A-EN-E - February 2005
8 The Enpac Ex

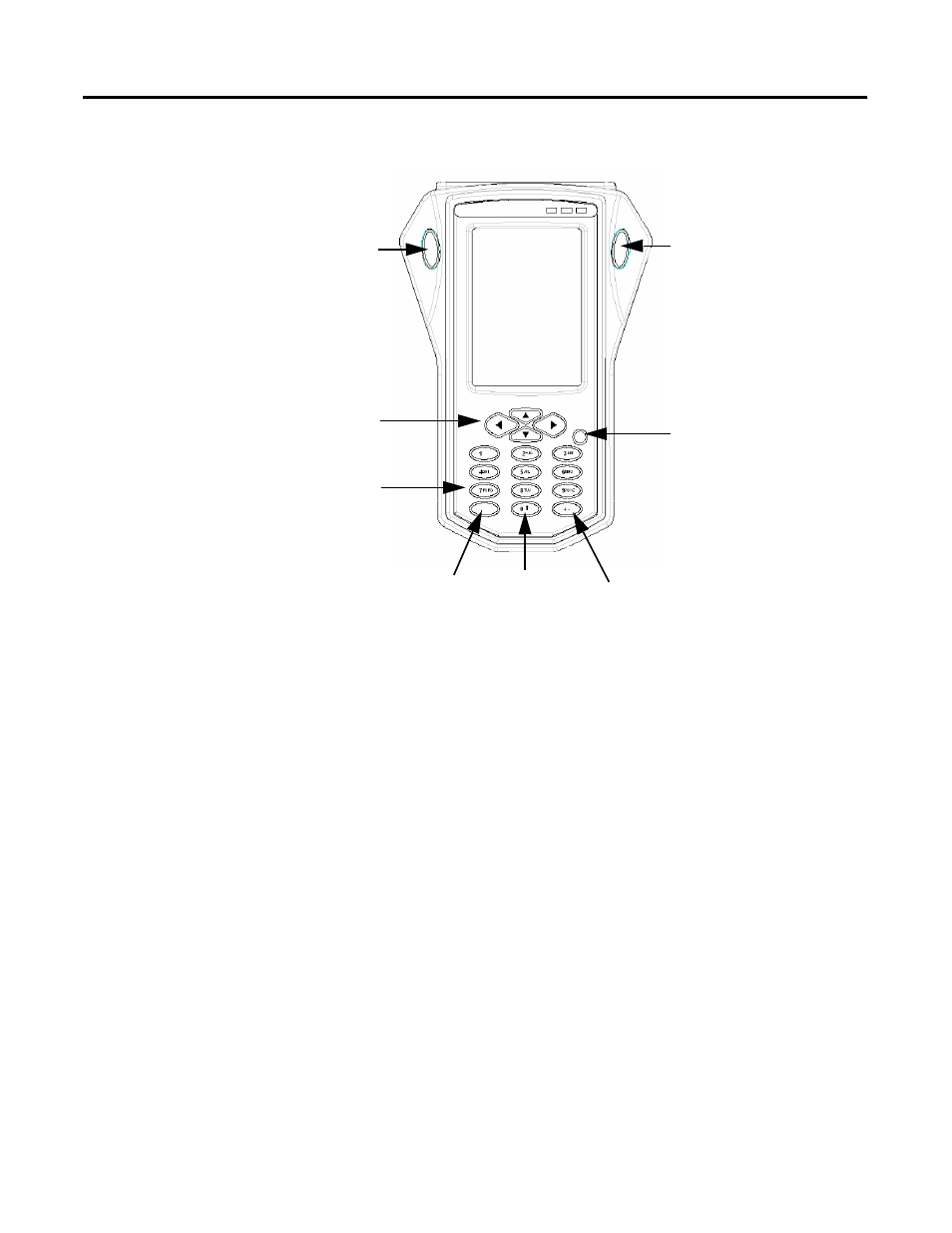

Figure 2.1 Diagram of the Enpac Ex
READ/OK Key
The READ/OK key starts collecting data for the current point or accepts the
current measurement. There are two keys so you can use the Enpac Ex with
either your left or right hand.
Arrow Keys
The arrow keys are located below the display screen.
UP ARROW
• Moves to the previous field or menu selection.
• Decreases the Y-axis scaling in a signature plot.
DOWN ARROW
• Moves to the next field or menu selection.
• Increases the Y-axis scaling in a signature plot.
READ/OK Key
Arrow Keys
ON/OFF
Numeric Keys
+/-
Decimal
0 or
Shift
READ/OK
Key
