Publication GMSI00-UM001A-EN-E - February 2005
Collecting and Reviewing Data 91
• Accel - acceleration spectrum point (10kHZ, 800 lines, 4 averages)
• Velocity - accel - velocity spectrum point (2kHz, 400 lines, 4 averages)
• Accel Time - time point (10kHz, 2046 points)
• High Res - high resolution point (increase number of lines by a factor
of two, for example, the current point having 400 lines becomes 800
lines)
• gSE - spike energy point (Envelope parameter in Instrument Setup
must be set to "gSE." See Instrument Setup Parameters on page 105.
• ESP - standard Envelope Spectrum Processing (ESP) point (Envelope
parameter in Instrument Setup must be set to "ESP." See Instrument
Setup Parameters on page 105.
You do not set any parameters when you use a pre-defined measurement. The
Enpac Ex uses similar settings as the measurement definitions for the current
point. Follow these steps to collect an off route measurement for the current
point.
1. Select Data Collection from the Main Menu and press the READ/OK
keys. The Data Collection screen appears.
2. Select the route and measurement point.

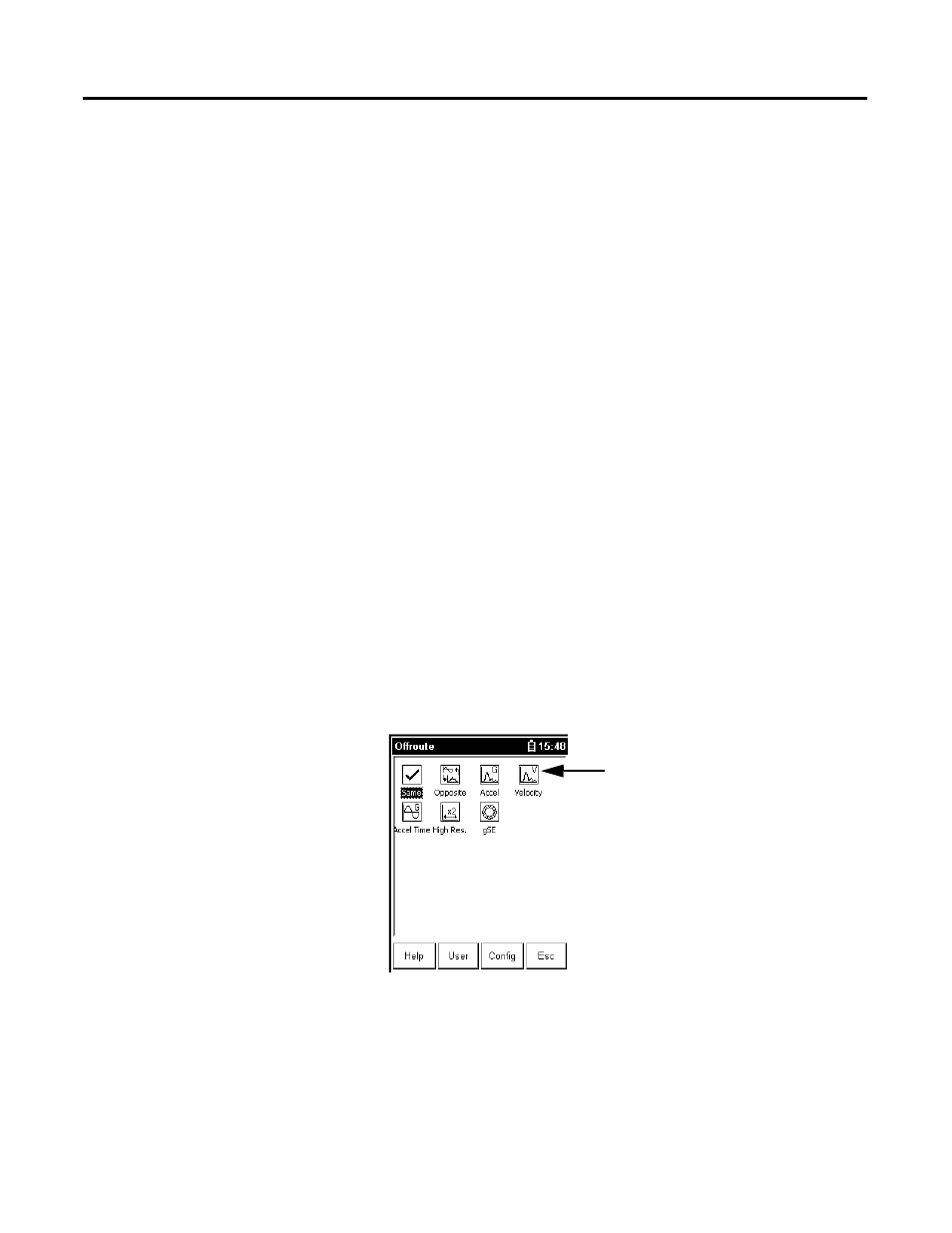

3. Tap the Offroute button to collect an off route measurement. The Off
Route Measurement screen appears.
4. Highlight the appropriate pre-defined measurement icon to store an off
route measurement at the current point.
5. Connect the proper transducer and press READ/OK to start the
measurement. The measurement screen appears.
To highlight a icon:
• press the ARROW keys
• tap the icon on the
touchscreen with the stylus
