Publication GMSI00-UM001A-EN-E - February 2005

Setting Up Measurements 55

• You must set Trigger to "Yes" for any alarms you want to appear in the

Enpac Ex during data collection. If you set Trigger to "Yes" for two or
more alarms for the same measurement definition, Emonitor combines
the alarms before sending the combined alarm to the Enpac Ex.

• For more on how Emonitor combines alarms before sending them to

the Enpac Ex, see Alarms and the Data Collector on page 60.

The Enpac Ex does not support spectrum alarms. You can still set up the
alarms for the spectrum measurement definitions. Emonitor tests the data
against the alarms after you unload the data.

Typical spectrum measurement definitions

Figure 3.11 shows the setup for typical spectrum measurement definitions.
The first is a standard spectrum, the second is an order normalized spectrum,
and the third is a time synchronous spectrum.

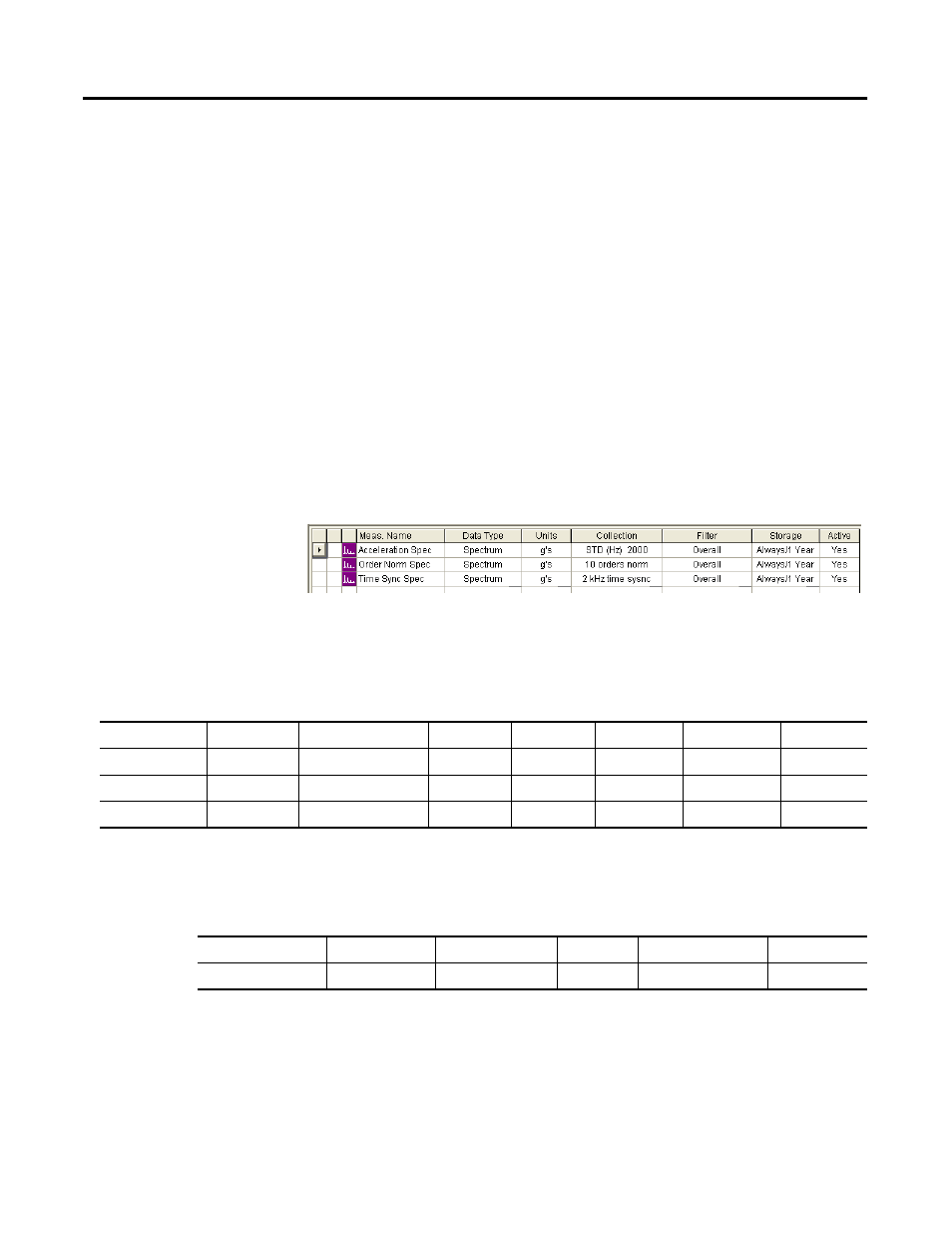

Figure 3.11 Spectrum measurement definitions

The following table shows the collection specifications (in the same order as
the measurement definition table above).

The following table shows the

transducer specification in the collection

specifications.

Table 3.13 Collection specifications for spectrum measurement definitions

Transducer

Window

Signal Detection

Fmax

Lines

Phase

Order Norm?

Averages

Accelerometer

Hanning

Peak

2 kHz

400

No

No

4 linear

Accelerometer

Hanning

Peak

10 orders

400

No

Yes

4 linear

Accelerometer

Hanning

Peak

2 kHz

400

No

No

4 time synch.

Table 3.14 Transducer specification in spectrum collection specifications

Name

Base Unit

Input Type

Units

Calibration Value

DC Offset

Accelerometer

Acceleration

ICP Accel

g’s

100

0
