Publication GMSI00-UM001A-EN-E - February 2005
58 Setting Up Measurements
Typical time waveform measurement definitions
Figure 3.12 shows the setup for a typical time waveform measurement
definition.

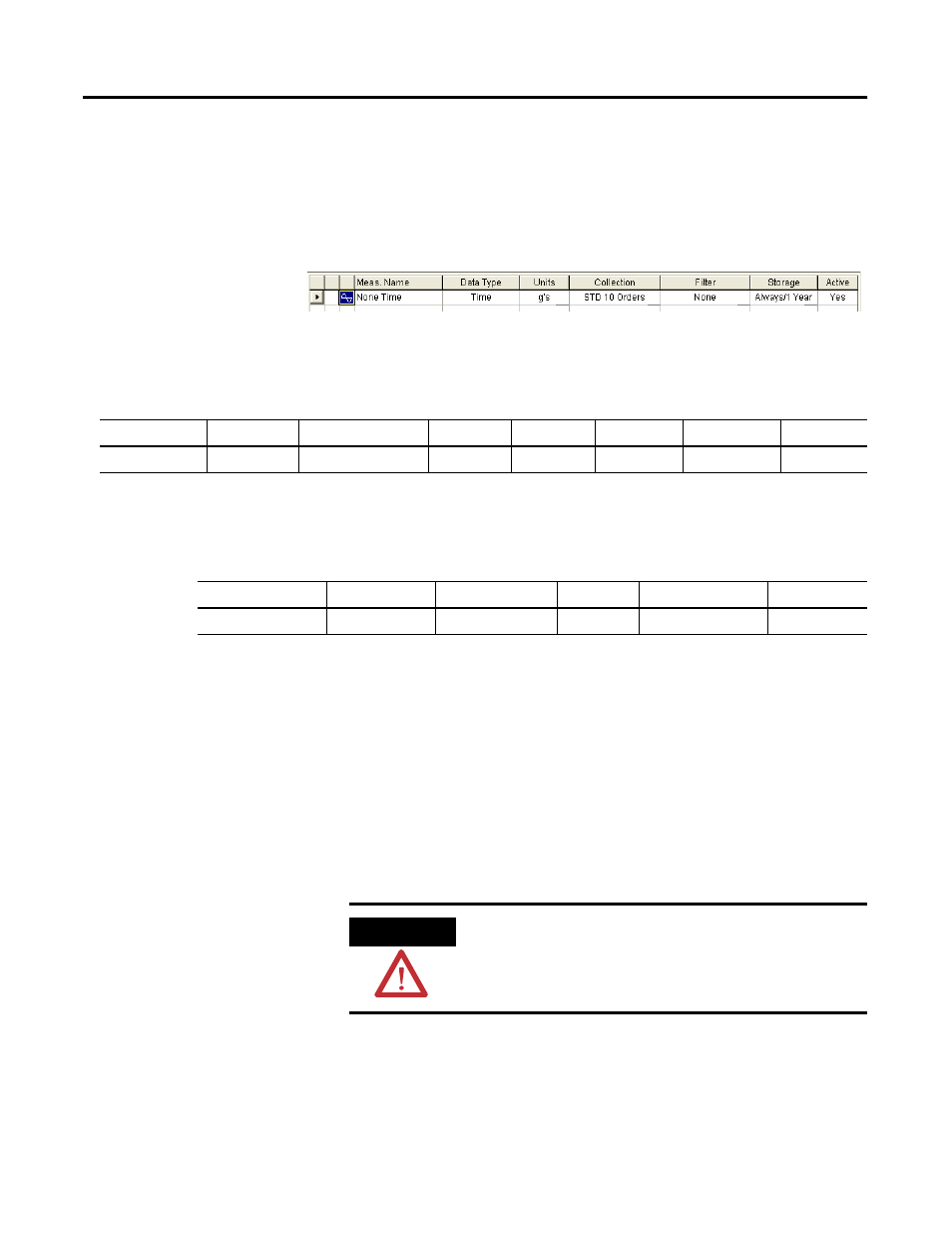

Figure 3.12 Time waveform measurement definitions
The following table shows the
collection specification
.
The following table shows the
transducer specification in the collection
specification.
Voltage Measurement Definitions
Emonitor and the Enpac Ex support measurement definitions with units of
volts (AC or DC). You can collect several different types of voltage
measurements. This topic shows the typical measurement definition setup for
three voltage measurements.
Voltage is similar to other units in that you can collect magnitude, numeric,
spectrum, and time waveform voltage measurements.
Table 3.15 Collection specification for time waveform measurement definition
Transducer Window Signal Detection Fmax Lines Phase Order Norm? Averages
Accelerometer Hanning Peak 2 kHz 400 No No 1 linear
Table 3.16 Transducer specification in time waveform collection specification
Name Base Unit Input Type Units Calibration Value DC Offset
Accelerometer Acceleration ICP Accel g’s 100 0
WARNING
Do not collect voltage measurements unless the area is
known to be nonhazardous.
