Publication GMSI00-UM001A-EN-E - February 2005

Collecting and Reviewing Data 89

1. Highlight the desired hierarchy level (Plant, Train, Machine, and Point)

in the Data Collection screen.

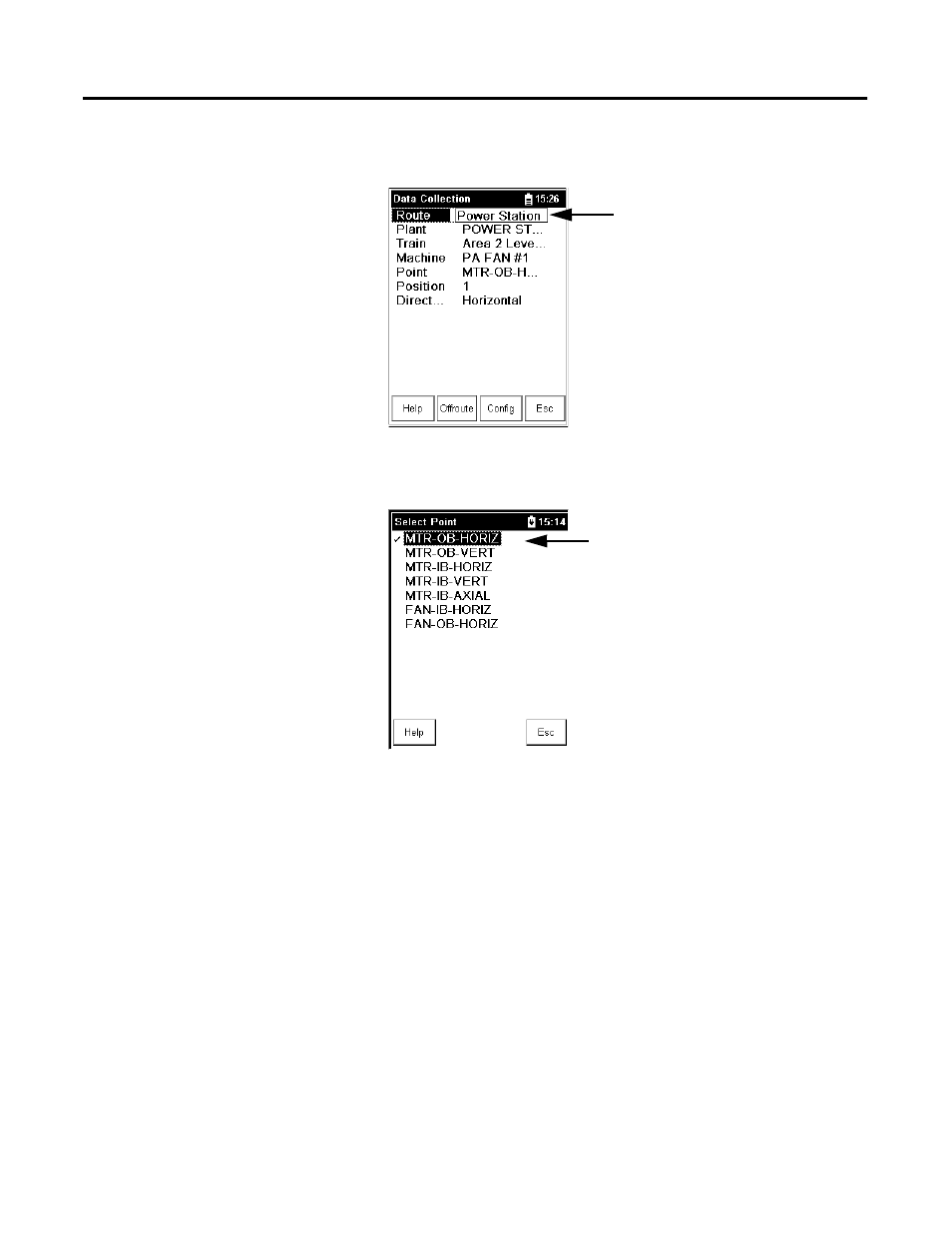

2. Press the RIGHT ARROW key. A Selection screen appears. A check

mark next to the item indicates that a measurement has been stored.

3. Highlight the item in the list that you want to select and press the LEFT

ARROW key. Tap the Esc button to leave the Selection screen without
selecting an item.

4. Continue collecting data and moving through the list until you until you

reach the end of the list.

To highlight an level:

• press the UP or DOWN

ARROW key

• tap the level on the

touchscreen with the stylus

To highlight an item:

• press the UP or DOWN

ARROW key

• tap the item on the

touchscreen with the stylus
