96 Collecting and Reviewing Data
present only if data is available. Tap the appropriate button to view the data.
The Enpac Ex attempts to display a stored measurement.
To navigate through the collected data, follow these steps.
1. Highlight the desired hierarchy level (Plant, Train, Machine, and Point)
in the Review Data screen.
2. Press the RIGHT ARROW key. A Selection screen appears.
3. Highlight the item that you want to review and press the LEFT
ARROW key. Tap the Esc button to leave the Selection screen without
selecting an item.
Reviewing Overall Data
The Overall Data screen shows overall measurements taken as RMS, Peak,
Peak to Peak, True Peak, True Peak to Peak, or RSS values. To review overall
data, tap the Overall button on the Review Data screen.
TIP
The Enpac Ex indicates that a measurement has been
stored by placing a check mark next to the measurement.
IMPORTANT
The Overall button is present on the Review Data screen
only if overall data is available.

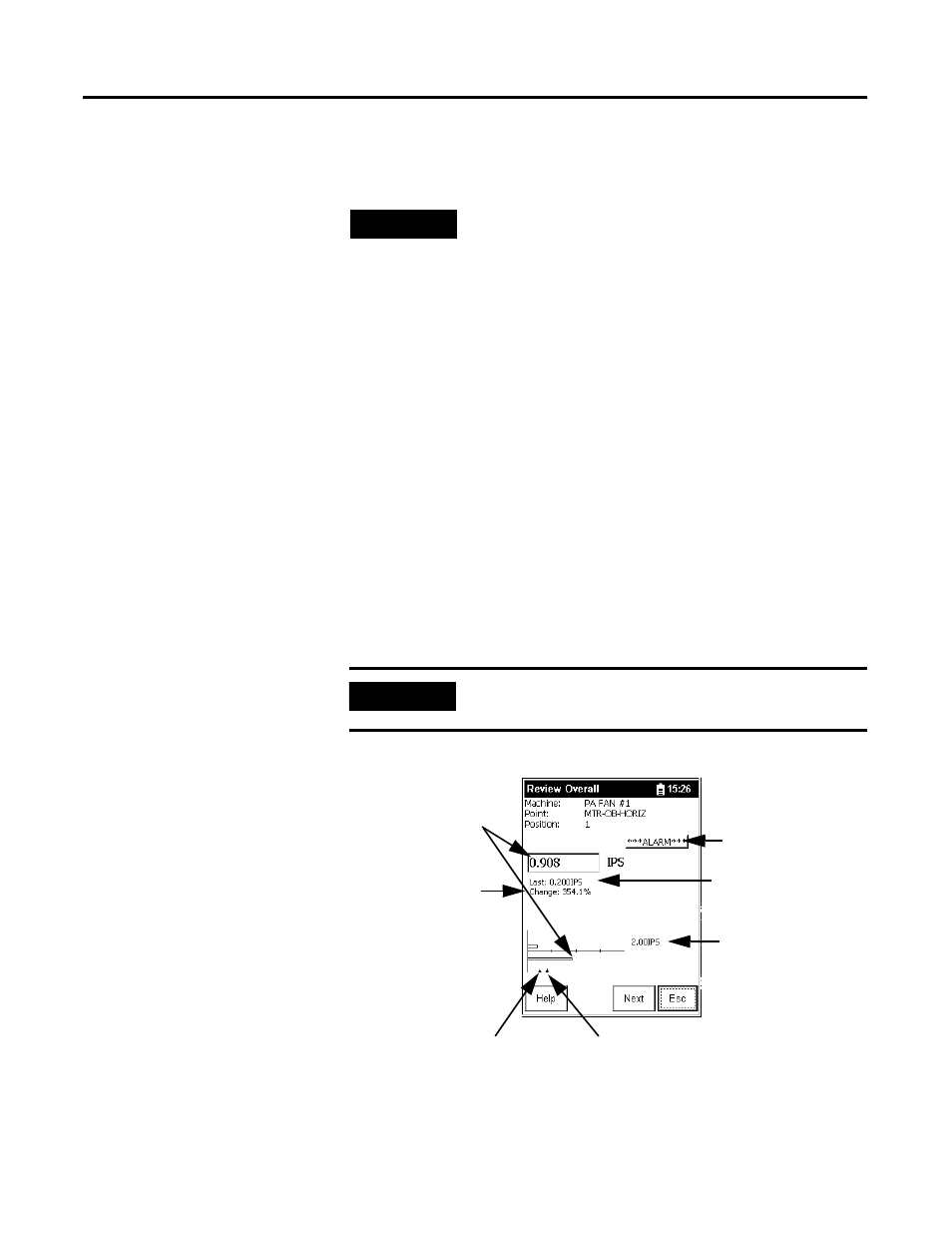

Full scale range
Lower alarm level
Upper alarm level
Last recorded
value
% changed from last
recorded value to
current reading
Current signal
amplitude
Measurement in
alarm
