Publication GMSI00-UM001A-EN-E - February 2005
10 The Enpac Ex

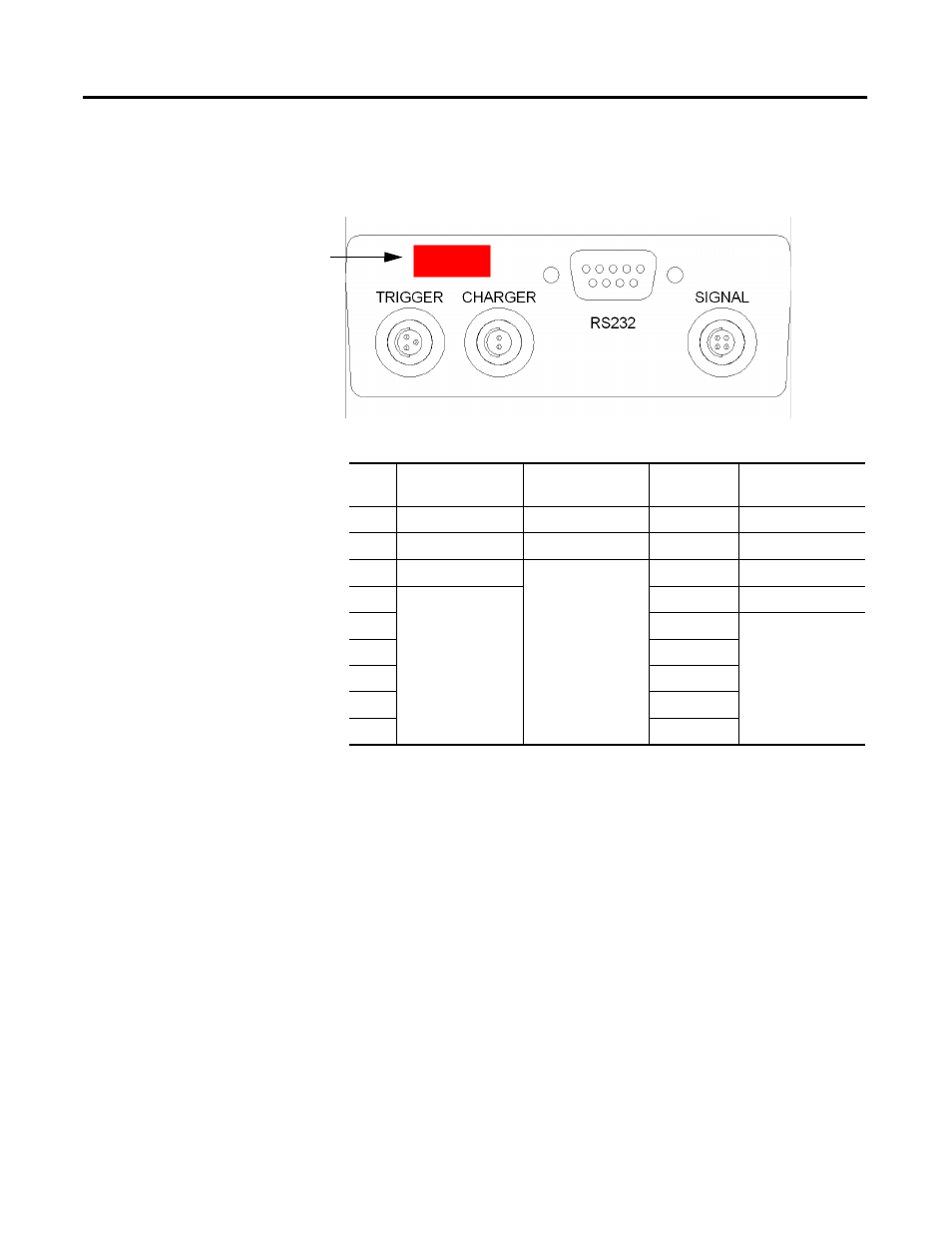

External Connectors The external hardware connections for communications and data collection
are located on the top panel of the Enpac Ex, as illustrated below.
Figure 2.2 External hardware connections
Signal Connector
The Signal connector connects a transducer to the Enpac Ex. The pin
assignments for the signal connector are shown in Table 2.2.
IrDA Window
Table 2.2 Pin Assignments
Pin
No. Trigger
(Fischer 102A052) Charger
(Fischer 102A051)
RS-232
Signal
(Fischer 102A053)
1 Trigger In Ext-DC-IN Signal In
2 Ground TxD-In ICP In
3 Ground RxD-Out Ground
4 Ground
5 Ground
6
7 CTS-Out
8 RTS-In
9
