Setting Up Measurements 47

Collecting magnitude measurements in multiple frequency bands

You can set up multiple measurement definitions at a location to collect
magnitude values for individual frequency bands. Use band filters to define the
different frequency bands in the measurement definitions. Make sure you
select None in the Band Filter dialog box. This forces the Enpac Ex to
collect a spectrum measurement. After you unload the measurement,
Emonitor calculates the magnitude values in the bands from the spectrum.

If your measurements include both magnitude and phase, the Enpac Ex can
collect up to eight orders. If your measurements include magnitude only, the
Enpac Ex can collect up to 200 orders.

Typical magnitude measurement definitions

Figure 3.7 shows the setup for a typical magnitude measurement definition

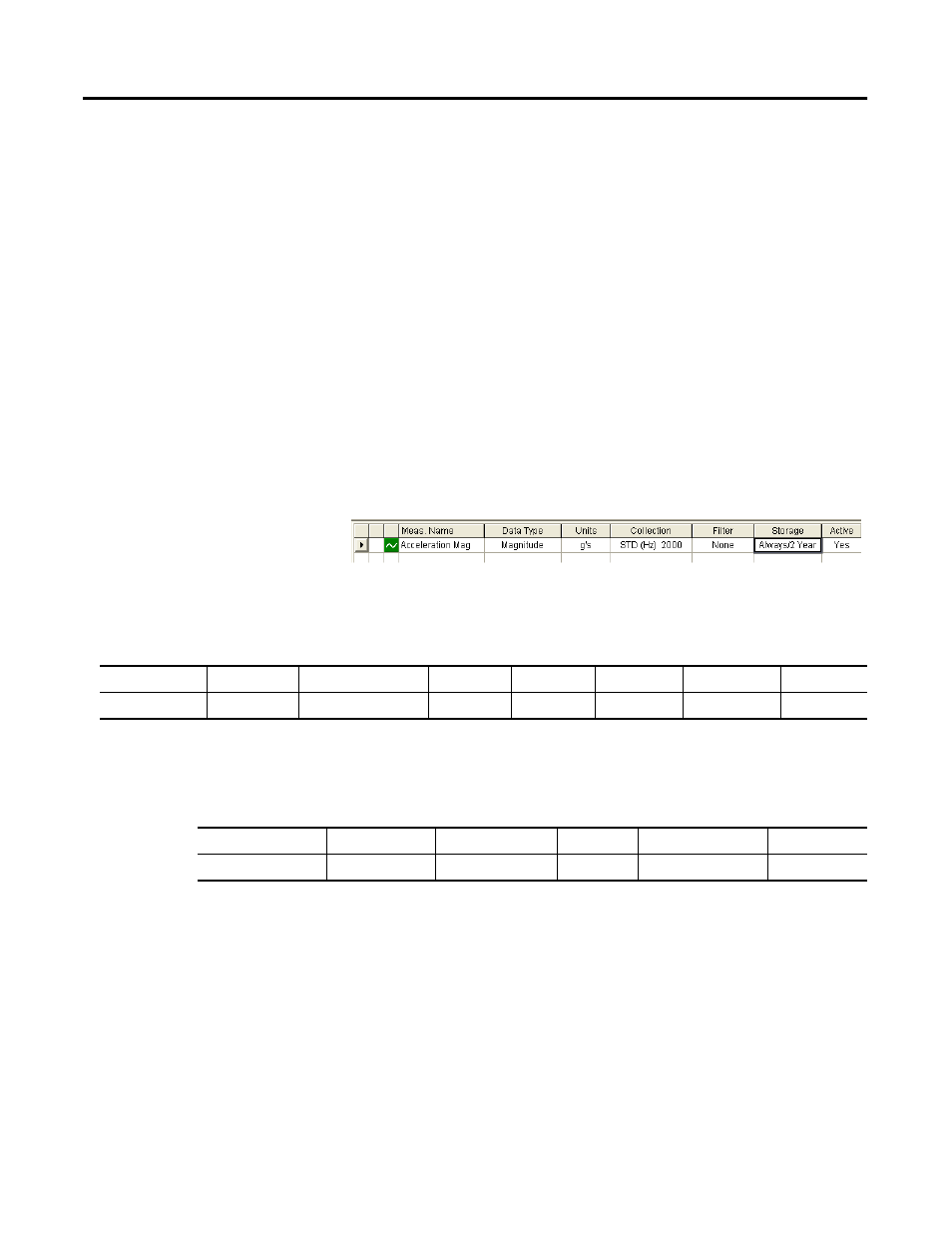

Figure 3.7 Magnitude measurement definition.

The following table shows the STD (Hz) 2000 collection specification.

The following table shows the transducer specification in the STD (Hz) 2000
collection specification.

Figure 3.8 shows the setup for a typical set of measurement definitions with
multiple frequency bands. Note that the filter specifications used in the tables
are not currently defined in the Emonitor database. To define a new filter
specification, select Setup > Band Filters and click New.

Table 3.5 Collection specification for magnitude measurement definition

Transducer

Window

Signal Detection

Fmax

Lines

Phase

Order Norm?

Averages

Accelerometer

Hanning

Peak

2 kHz

400

No

No

4 linear

Table 3.6 Transducer specification in STD (Hz) 2000 collection specification

Name

Base Unit

Input Type

Units

Calibration Value

DC Offset

Accelerometer

acceleration

ICP Accel

g’s

100

0
