Rockwell Automation 2364F Regenerative DC Bus Supply Unit (RGU) User Manual
Page 195

Publication 2364F-5.01– October 2003
Programming Parameters
D-51
266
SCANport Remote Data Out: D2
[Rem Data Out:D2]
This parameter shows the value of datalink D2
which is being passed to a SCANport device.
Link this parameter to the parameter that is to be
passed through datalink D2.
Parameter Type
Sink (Read/Write)
Display Units
None
Drive Units
Display Units * 1
Factory Default
0.00
Minimum Value
0.00
Maximum Value
65535
Related Parameters
P251, P259
267
RGU-to-RGU Transmit Address
[R2R Xmit Addr]
This parameter indicates the unit address, which
identifies this unit when communicating on the
R2R network.
Parameter Type
Source (Read Only)
Display Units
None
Drive Units
Display Units * 1
Factory Default
0.00
Minimum Value
0.00
Maximum Value
32.00
Related Parameters
P5, P271, P272
268
RGU-to-RGU Receive 1 Address
[R2R Rcv Addr 1]
This parameter indicates the address of a
paralleled RGU on the R2R network.
For slave units, this parameter should indicate the
transmit address from the master unit (P267).
Parameter Type
Source (Read Only)
Display Units
None
Drive Units
Display Units * 1
Factory Default
0.00
Minimum Value
0.00
Maximum Value
32.00
Related Parameters
P5, P273, P274
269
RGU-to-RGU Receive 2 Address
[R2R Rcv Addr 2]
This parameter indicates the address of a
paralleled RGU on the R2R network.
Parameter Type
Source (Read Only)
Display Units
None
Drive Units
Display Units * 1
Factory Default
0.00
Minimum Value
0.00
Maximum Value
32.00
Related Parameters
P5
270
RGU-to-RGU Receive 3 Address
[R2R Rcv Addr 3]
This parameter indicate the address of a
paralleled RGU on the R2R network.
Parameter Type
Source (Read Only)
Display Units
None
Drive Units
Display Units * 1
Factory Default
0.00
Minimum Value
0.00
Maximum Value
32.00
Related Parameters
P5
271
RGU-to-RGU Transmit Indirect 1
[R2R Xmit Ind 1]
This parameter directs the value in P96 (Iq
Current Reference) to the R2R network.
Parameter Type
Source (Read Only)
Display Units
Parameter Number
Drive Units
Display Units * 1
Factory Default
96 (Iq Current Reference)
Minimum Value
1
Maximum Value
Maximum Defined Parameter Number
Related Parameters
P5, P96, P267

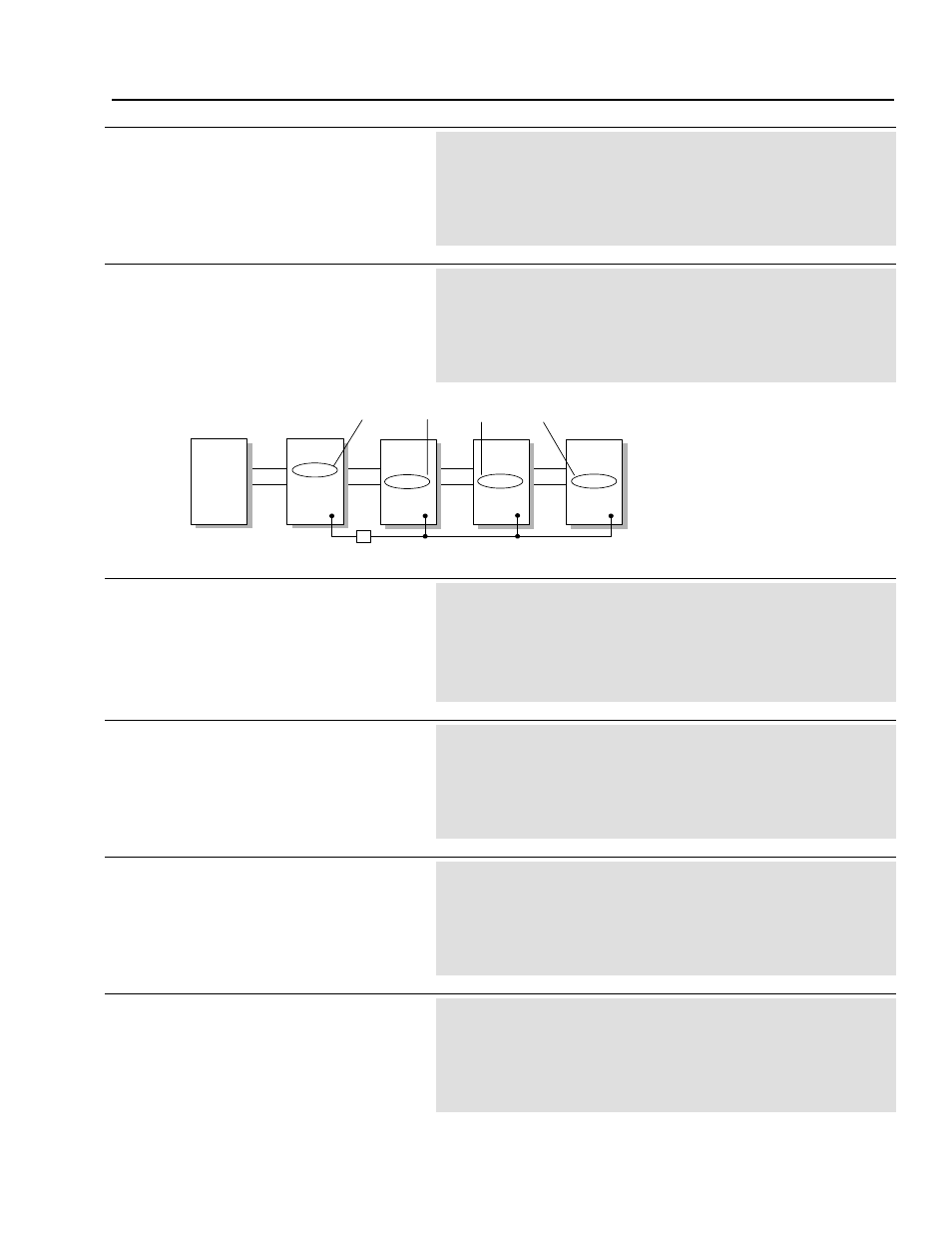

NR U
R G U
(M a ster)
P2 67 = 0
P2 68 = 1
P2 69 = 2
P2 70 = 3
R G U
(S la ve 1)
P2 67 = 1
P2 68 = 0
P2 69 = 2
P2 70 = 3
R G U
(S la ve 2)
P2 67 = 2
P2 68 = 0
P2 69 = 1
P2 70 = 3
R G U
(S la ve 3)
P2 67 = 3
P2 68 = 0
P2 69 = 1
P2 70 = 2
T h e first receive ad d ress (P 26 8) for th e slave u n its w ill
in d icate th e m aster R G U 's tran sm it ad d ress (P2 67 ).
R 2R n etw ork
Typica l R G U-to-R G U A rrangem ent
H u b
B oard
