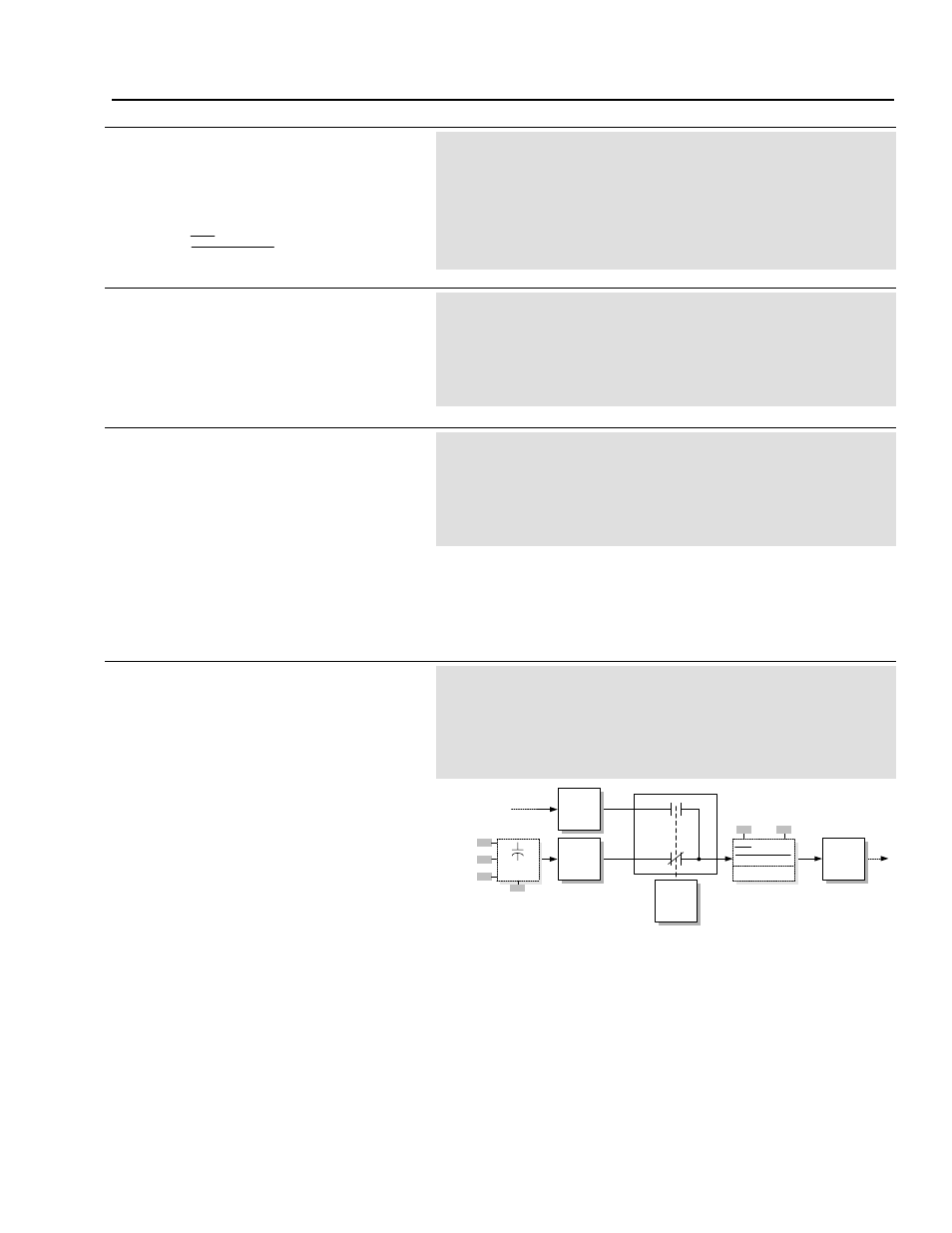

Programming Parameters
D-29
137
Wn, Bus Feedback Filter Bandwidth
[Leadlag Freq, Wn]
This parameter specifies bandwidth for the bus
feedback filter. This filters the feedback using the
following formula:
Parameter Type
Sink (Read/Write)
Display Units
R/S (rad/sec)
Drive Units
Display Units * 1
Factory Default
1000
Minimum Value
0
Maximum Value
32767
Related Parameters
P138, P140, P141
138
Kn, Bus Feedback Filter Gain
[Leadlag Gain, Kn]
This parameter specifies gain for the bus feedback
filter. This filters the feedback using the formula
listed in P137.
Parameter Type
Sink (Read/Write)
Display Units
None
Drive Units
Display Units * 1
Factory Default
0.63
Minimum Value
0.00
Maximum Value
5.00
Related Parameters
P137, P140, P141
139
Bus Voltage Input Select
[Volt Mode Sel]
This parameter selects the input used for the bus
voltage feedback.
Parameter Type
Sink (Read/Write)
Display Units
None
Drive Units
Display Units * 1
Factory Default
0
Minimum Value
0
Maximum Value
2
Related Parameters
P38, P60, P61, P143
Value Description
0
DSP Averaged
Selects P61 (DSP Average Bus Voltage) as the input used for the Scaled Bus Feedback (P143).
1
DSP Channel
Selects P60 (DSP DC Bus Voltage) as the input used for the Scaled Bus Feedback (P143).
2
Host Channel
Selects P38 (A/D Converter 2 Input) as the input used for the Scaled Bus Feedback (P143). P38 provides a sample
from the DC bus.
140
Bus Prefiltered Feedback
[Bus Prefil Fbk]
This parameter displays the bus feedback value
before it is filtered (by the formula shown in the
P138 listing) and passed to P141 (Bus Feedback).
Parameter Type
Sink (Read Only)
Display Units
Volt
Drive Units
Display Units * 4096/P16
Factory Default
0
Minimum Value
0
Maximum Value
1.5 x P16
Related Parameters
P137, P138, P141, P143, P218, P219
P219 (Feedback Select) can select feedback
from the DC bus (P143), or can select a
simulated feedback (P218) as the input for
this parameter.
P138
256
P140 + P137
x P140 x P137
P219
Feedback
Select
P143
Scaled Bus
Feedback
P218
Simulated
Bus
Feedback
P141
Bus
Feedback
Simulator
P217
P96
P216
P215
Filter
P138
P137
P138
256
P140 + P137
x P140 x P137
