Rockwell Automation 2364F Regenerative DC Bus Supply Unit (RGU) User Manual
Page 174

Publication 2364F-5.01– October 2003
D-30
Programming Parameters
141
Bus Feedback
[Bus Feedback]
This parameter displays the value of the bus
feedback. This bus feedback value is compared
with the Bus Reference (P128) to determine the
bus error (P142) which needs to be corrected by
the PI regulator.
Parameter Type
Sink (Read Only)
Display Units
Volt
Drive Units
Display Units * 4096/P16
Factory Default
0
Minimum Value
0
Maximum Value
1.5 x P16
Related Parameters
P128, P140, P142
142
Voltage Loop Error
[Bus Error]
This parameter shows the error in the DC bus that
needs to be corrected through the PI regulator.
This value is used to adjust the bus voltage
(shown by the Bus Feedback (P141)) to the
commanded voltage (shown by the Bus
Reference (P128)).
Parameter Type
Sink (Read Only)
Display Units
Volt
Drive Units
Display Units * 4096/P16
Factory Default
0
Minimum Value
0
Maximum Value
1.5 x P16
Related Parameters
P128, P140, P142
143
Scaled Bus Feedback
[Scaled Bus Fbk]
This parameter shows the calibrated bus
feedback. The value of this parameter is used to
determine the Bus Feedback (P141) and is used
to calculate the DC Bus Current (P107).
Parameter Type
Source (Read Only)
Display Units
Volt
Drive Units
Display Units * 4096/P16
Factory Default
0
Minimum Value
0
Maximum Value
1.5 x P16
Related Parameters
P38, P60, P61, P144
144
Bus Voltage Feedback Calibration
[Bus Volt Cal]
This parameter is used to adjust the voltage value
shown in the bus feedback parameters (i.e. P140,
P141, P143).
To calibrate the feedback, adjust this parameter
until P143 (Scaled Bus Feedback) is equal to the
Parameter Type
Sink (Read/Write)
Display Units
% of P143
Drive Units
Display Units * 1125/1000
Factory Default
0.0
Minimum Value
-3.1
Maximum Value
3.1
Related Parameters
P141, P143
voltage of the DC bus (use a voltmeter). This
parameter can only be set when the RGU is
Disabled.
145
Positive DC Bus to Ground Voltage
[+Bus Volt to Gnd]
This parameter indicates the voltage between the
positive DC bus and the ground (PE).
P40 (A/D Converter 4 Input) supplies the raw data
for this parameter.
Parameter Type
Source (Read Only)
Display Units
Volt
Drive Units
Display Units * 4096/P16
Factory Default
0
Minimum Value
0
Maximum Value
1.15 x P16
Related Parameters
P40, P146
146
Negative DC Bus to Ground Voltage
[-Bus Volt to Gnd]
This parameter indicates the voltage between the
negative DC bus and the ground (PE).
P39 (A/D Converter 3 Input) supplies the raw data
for this parameter.
Parameter Type
Source (Read Only)
Display Units
Volt
Drive Units
Display Units * 4096/P16
Factory Default
0
Minimum Value
0
Maximum Value
1.15 x P16
Related Parameters
P39, P145

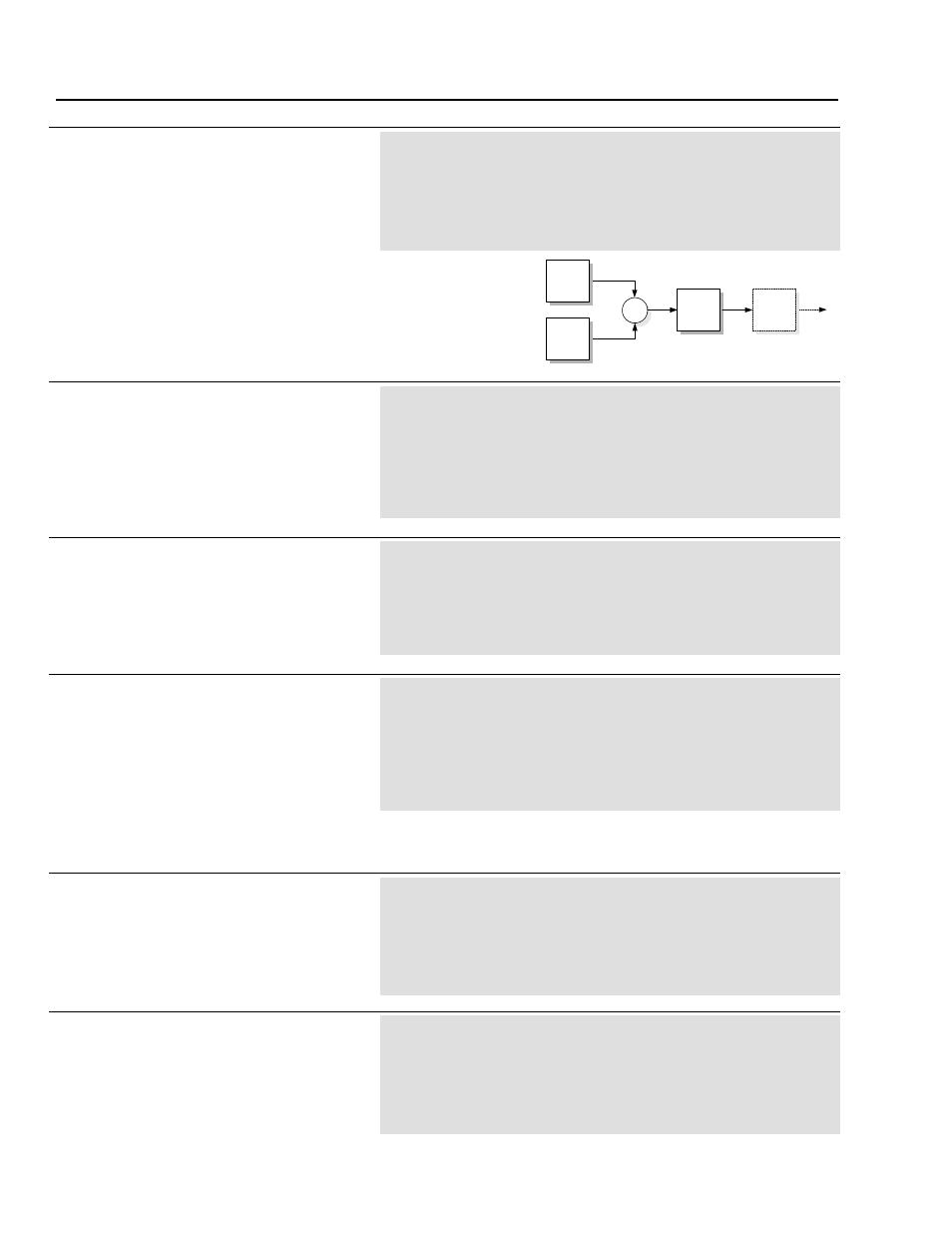

Σ
PI Regulator
+
_
P142
Voltage
Loop Error
P141
Bus
Feedback
P128
Bus
Reference
