Rockwell Automation 2364F Regenerative DC Bus Supply Unit (RGU) - Manual (Page 194)

Publication 2364F-5.01– October 2003
D-50 Programming Parameters
260
SCANport Remote Data Out: A2
[Rem Data Out:A2]
This parameter shows the value of datalink A2
which is being passed to a SCANport device.
Link this parameter to the parameter that is to be
passed through datalink A2.
Parameter Type Sink (Read/Write)
Display Units None
Drive Units Display Units * 1
Factory Default 0.00
Minimum Value 0.00
Maximum Value 65535
Related Parameters P251, P259
261
SCANport Remote Data Out: B1
[Rem Data Out:B1]
This parameter shows the value of datalink B1
which is being passed to a SCANport device.
Link this parameter to the parameter that is to be
passed through datalink B1.
Parameter Type Sink (Read/Write)
Display Units None
Drive Units Display Units * 1
Factory Default 0.00
Minimum Value 0.00
Maximum Value 65535
Related Parameters P251, P259
262
SCANport Remote Data Out: B2
[Rem Data Out:B2]
This parameter shows the value of datalink B2
which is being passed to a SCANport device.
Link this parameter to the parameter that is to be
passed through datalink B2.
Parameter Type Sink (Read/Write)
Display Units None
Drive Units Display Units * 1
Factory Default 0.00
Minimum Value 0.00
Maximum Value 65535
Related Parameters P251, P259
263
SCANport Remote Data Out: C1
[Rem Data Out:C1]
This parameter shows the value of datalink C1
which is being passed to a SCANport device.
Link this parameter to the parameter that is to be
passed through datalink C1.
Parameter Type Sink (Read/Write)
Display Units None
Drive Units Display Units * 1
Factory Default 0.00
Minimum Value 0.00
Maximum Value 65535
Related Parameters P251, P259
264
SCANport Remote Data Out: C2
[Rem Data Out:C2]
This parameter shows the value of datalink C2
which is being passed to a SCANport device.
Link this parameter to the parameter that is to be
passed through datalink C2.
Parameter Type Sink (Read/Write)
Display Units None
Drive Units Display Units * 1
Factory Default 0.00
Minimum Value 0.00
Maximum Value 65535
Related Parameters P251, P259
265
SCANport Remote Data Out: D1
[Rem Data Out:D1]
This parameter shows the value of datalink D1
which is being passed to a SCANport device.
Link this parameter to the parameter that is to be
passed through datalink D1.
Parameter Type Sink (Read/Write)
Display Units None
Drive Units Display Units * 1
Factory Default 0.00
Minimum Value 0.00
Maximum Value 65535
Related Parameters P251, P259

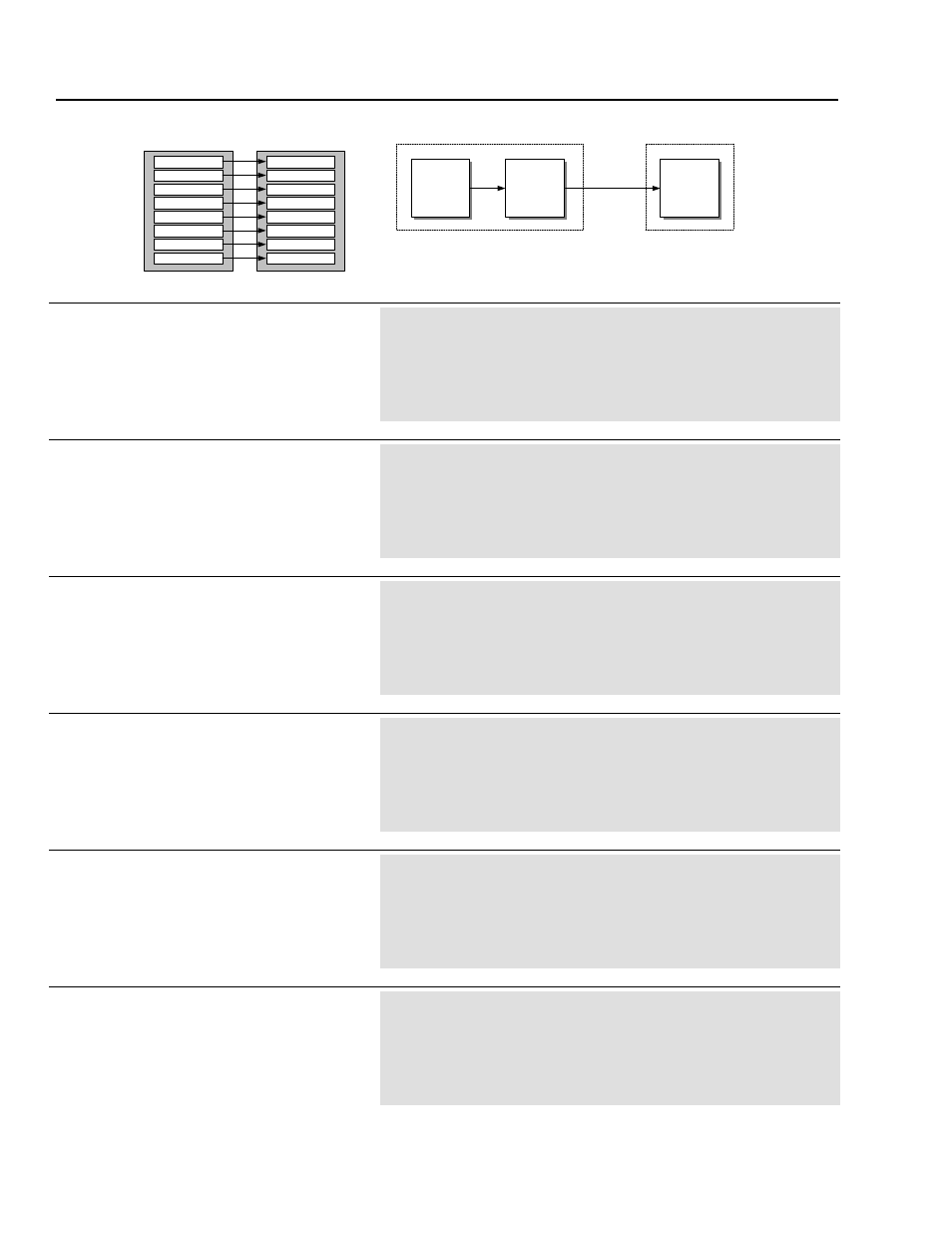

U sing SCA Nport Rem ote Data O ut
A 1 D ata In
A 2 D ata In
B 1 D ata In
B 2 D ata In
C 2 D ata In
D 1 D ata In
C 1 D ata In
D 2 D ata In
P259 (D ata O ut A 1)
P260 (D ata O ut A 2)
P261 (D ata O ut B1)
P262 (D ata O ut B2)
P264 (D ata O ut C2)
P265 (D ata O u t D 1)
P263 (D ata O ut C1)
P266 (D ata O u t D 2)
RG U S CA Nport Device
S CA N p ort D evice RG U
00101011101100
A1 Data In
P xxx
Source
Param eter 1
P 259
SC ANport
Rem ote
Data Out: A 1
(Link to Pxxx)
D atalink A 1
Sending a SC ANport Im age
