Connecting the rgu to the drive lineup, Splicing busbars, Testing the system – Rockwell Automation 2364F Regenerative DC Bus Supply Unit (RGU) User Manual
Page 84: Testing the system (standalone rgu with inverters), Test failures, Connecting the rgu to the drive lineup -14, Splicing busbars -14, Testing the system -14

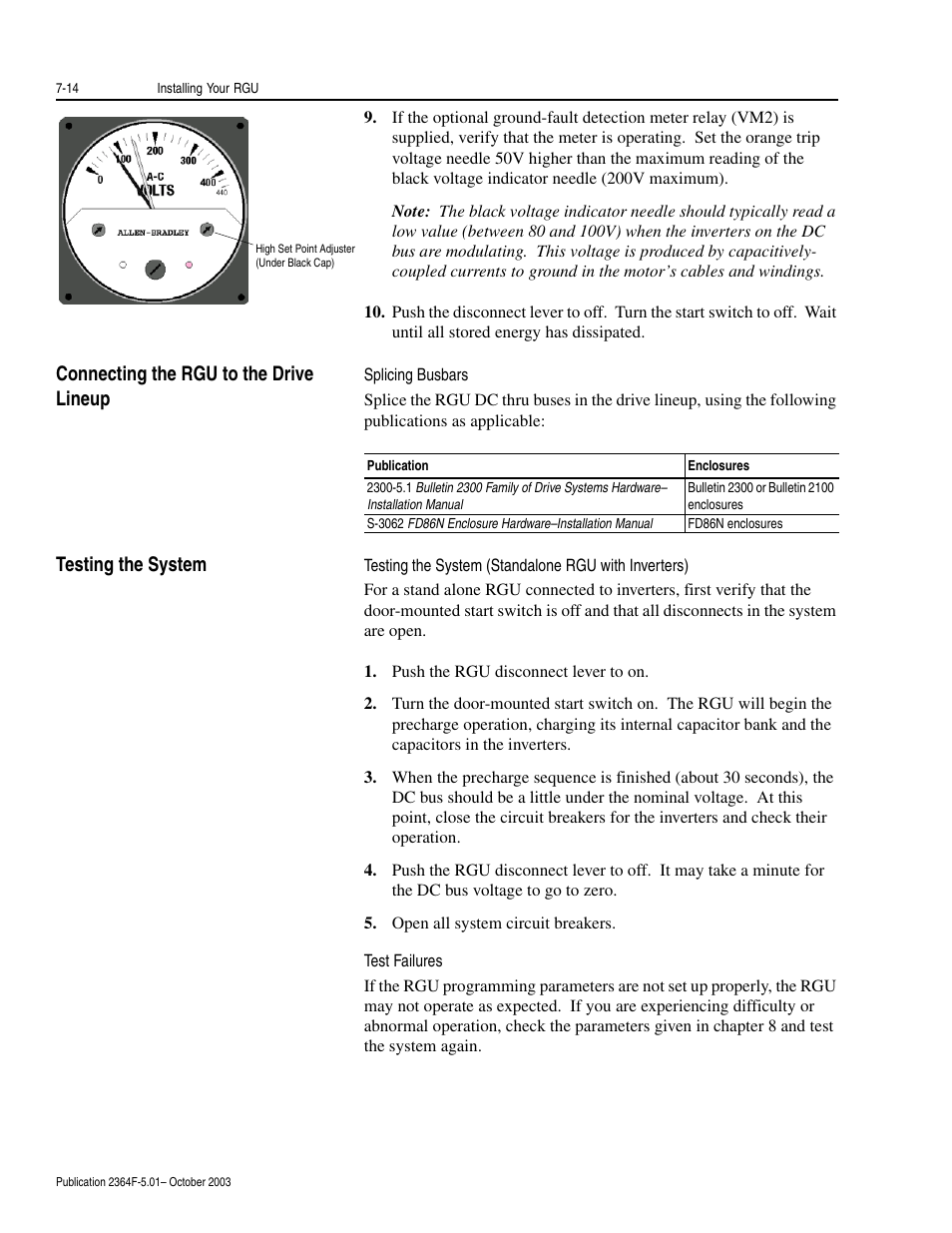

Connecting the rgu to the drive lineup, Splicing busbars, Testing the system | Testing the system (standalone rgu with inverters), Test failures, Connecting the rgu to the drive lineup -14, Splicing busbars -14, Testing the system -14 | Rockwell Automation 2364F Regenerative DC Bus Supply Unit (RGU) User Manual | Page 84 / 222 See also other documents in the category Rockwell Automation Equipment:
