B-52 1756-DMD30 Specific Information
172 Setpt 1 Data
Provides data for comparison to parameter 173 [Setpt1
TripPoint], driving bit 16 [At Setpt 1] of parameter 155 [Logic
Status]. Units:
Default:
Min:
Max:
Type:
File:
Group: P.U.
0
-8
8
Linkable, Read-Write, , Floating Point
Speed Control
Setpoint Monitor
173 Setpt1 TripPoint
Provides the midpoint for operation of bit 16 [At Setpt 1] of
parameter 155 [Logic Status]. Units:
Default:
Min:
Max:
Type:
File:
Group: P.U.
0.1
-8
8
Linkable, Read-Write, Floating Point
Speed Control
Setpoint Monitor

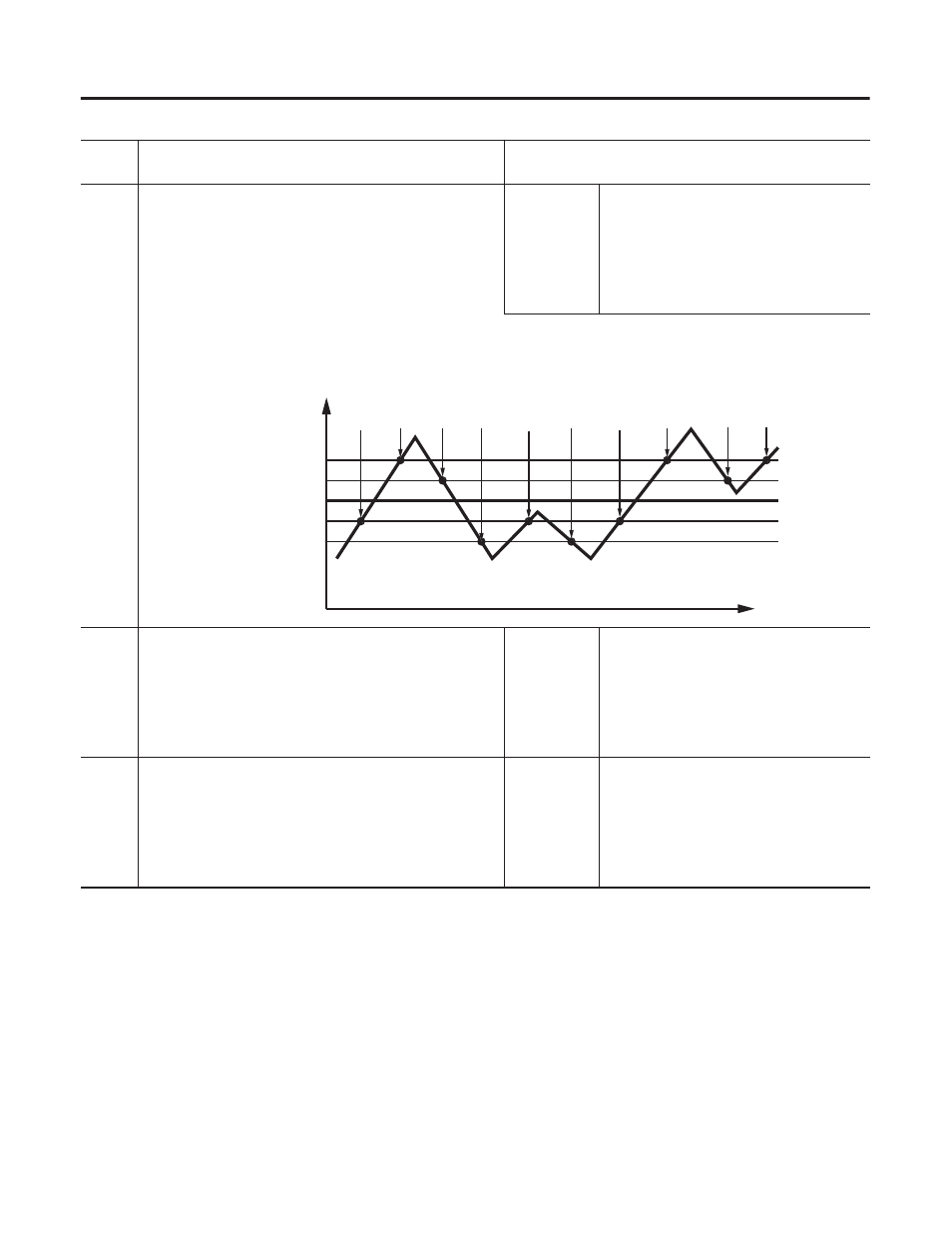

174 Setpt 1 Limit
Creates a tolerance - hysteresis band around the value in
parameter 173 [Setpt1 TripPoint]. Turn-on level for ascending
data = TripPoint - Limit. Turn-off level for ascending data =
TripPoint + 2(Limit). Turn-on level for descending data =
TripPoint + Limit. Turn-off level for descending data = TripPoint
- 2(Limit). Units:
Default:
Min:
Max:
Type:
File:
Group: P.U.
0.01
0
0.5
Linkable, Read-Write, Floating Point
Speed Control
Setpoint Monitor
No. Name
Description Values
P173 [Setpt1 TripPoint]
P172 [Setpt 1 Data]
bit 16 [At Setpt 1] tur
ns on
bit 16 [At Setpt 1] tur
ns off
bit 16 [At Setpt 1] tur
ns on
bit 16 [At Setpt 1] tur
ns off
bit 16 [At Setpt 1] tur
ns on
bit 16 [At Setpt 1] tur
ns on
bit 16 [At Setpt 1] tur
ns off
bit 16 [At Setpt 1] tur
ns on
bit 16 [At Setpt 1] tur
ns off
bit 16 [At Setpt 1] tur
ns off
P173 [Setpt1 TripPoint] + P174 [Setpt 1 Limit]
P173 [Setpt1 TripPoint] + 2 x P174 [Setpt 1 Limit]
P173 [Setpt1 TripPoint] - P174 [Setpt 1 Limit]
P173 [Setpt1 TripPoint] - 2 x P174 [Setpt 1 Limit]
Time
