Chapter 3
Programming Terminals
3–3

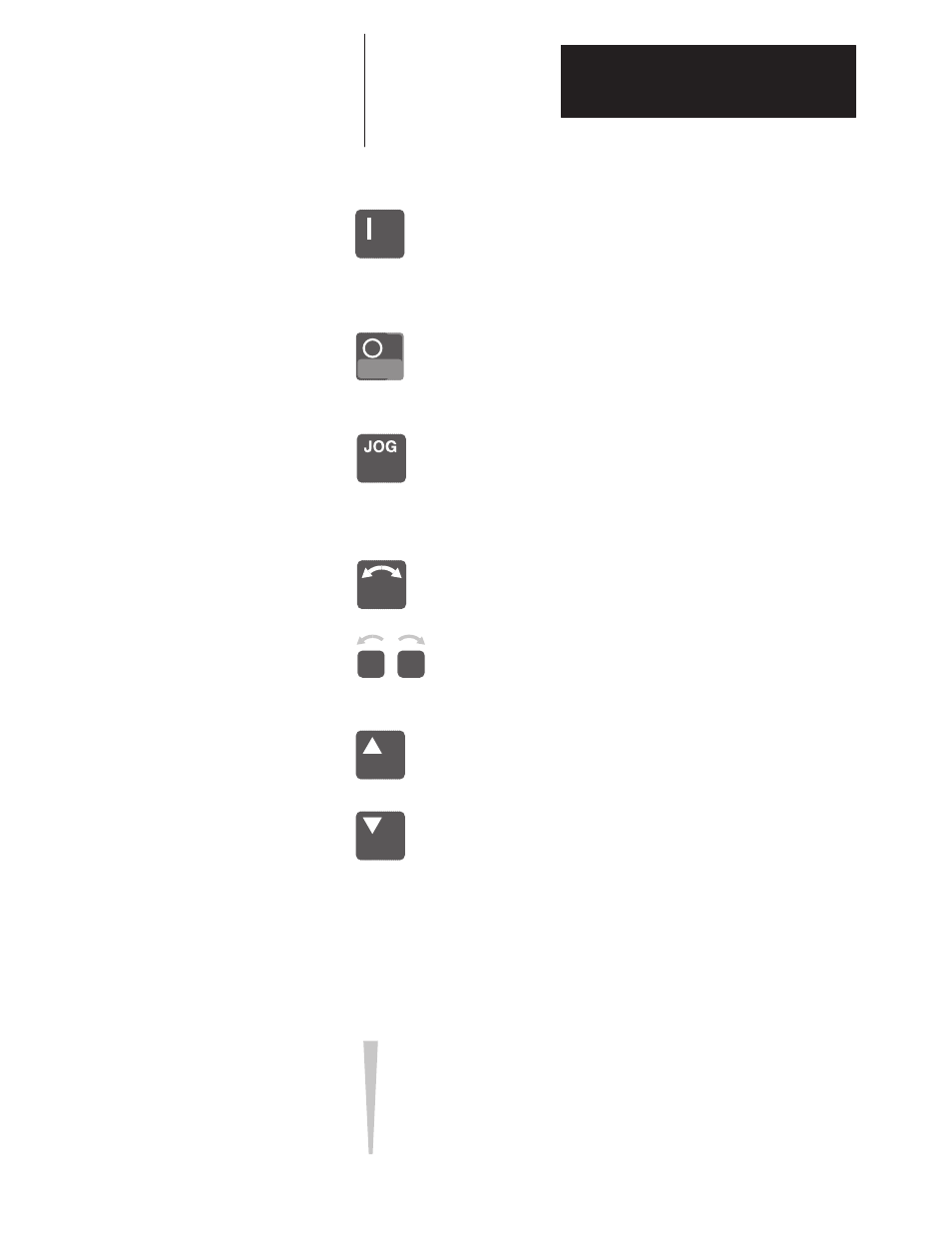

Key Descriptions (continued)
AB0283A
Start
By default, this key will initiate drive operation if hardware is
enabled and no other control devices are sending a Stop command.
To change this function, the [Command Mask] and [Typ 1 Logic
Axis] parameters must be reconfigured. Refer to Chapter 5.
Stop
When pressed, a stop sequence will be initiated at the System
Module causing a controlled stop to be initiated in each axis, as
determined by [Stop Mode], [Stop Time Lim] and [Stopping Cur].
Jog
By default, when this key is pressed the motor will jog at a
speed determined by the [Jog Vel] parameter for any axis that is
enabled (default will be 20% of motor rated speed). Releasing
the key will stop the function.
Change Direction (Jog/Digital Velocity Reference Modes Only)
Pressing this key will cause the motor to change direction. The
appropriate Direction Indicator will light to indicate direction.
Direction LEDs (Indicators)
These LEDs will illuminate to indicate the direction of motor
rotation for Axis 0 (by default).
Up/Down Arrows (only available with digital speed control)
Pressing these keys will increase or decrease the HIM
frequency command. An indication of this command will
be shown on the visual Speed Indicator. The drive will
run at this command if the HIM is the selected frequency
reference. See [Freq Select 1/2].
Pressing both keys simultaneously stores the current
HIM frequency command in HIM memory. Cycling
power or removing the HIM from the drive will set the
frequency command to the value stored in HIM memory.
If the Analog Speed Potentiometer option has been
ordered, the Up/Down keys and Speed Indicator will be
replaced by the pot.
Speed Indicator (only available with digital speed control)
Illuminates in steps to give an approximate visual
indication of the commanded speed.
If the Analog Speed Potentiometer option has been
ordered, the Up/Down keys and Speed Indicator will be
replaced by the pot.
AB0267A
AB0275A
AB0281A
AB0285A
AB0287A
AB0295A
AB0265A
Note:
Pot Range
0 – 32767
