Rockwell Automation Publication 520COM-UM002A-EN-E - April 2013 9
Chapter
1
Getting Started
The DeviceNet adapter is a communication option intended for installation into
a PowerFlex 525 drive. The Multi-Drive feature (
Chapter 7 ) also provides a
means for other supported PowerFlex drives and DSI Hosts to connect to a
DeviceNet network.

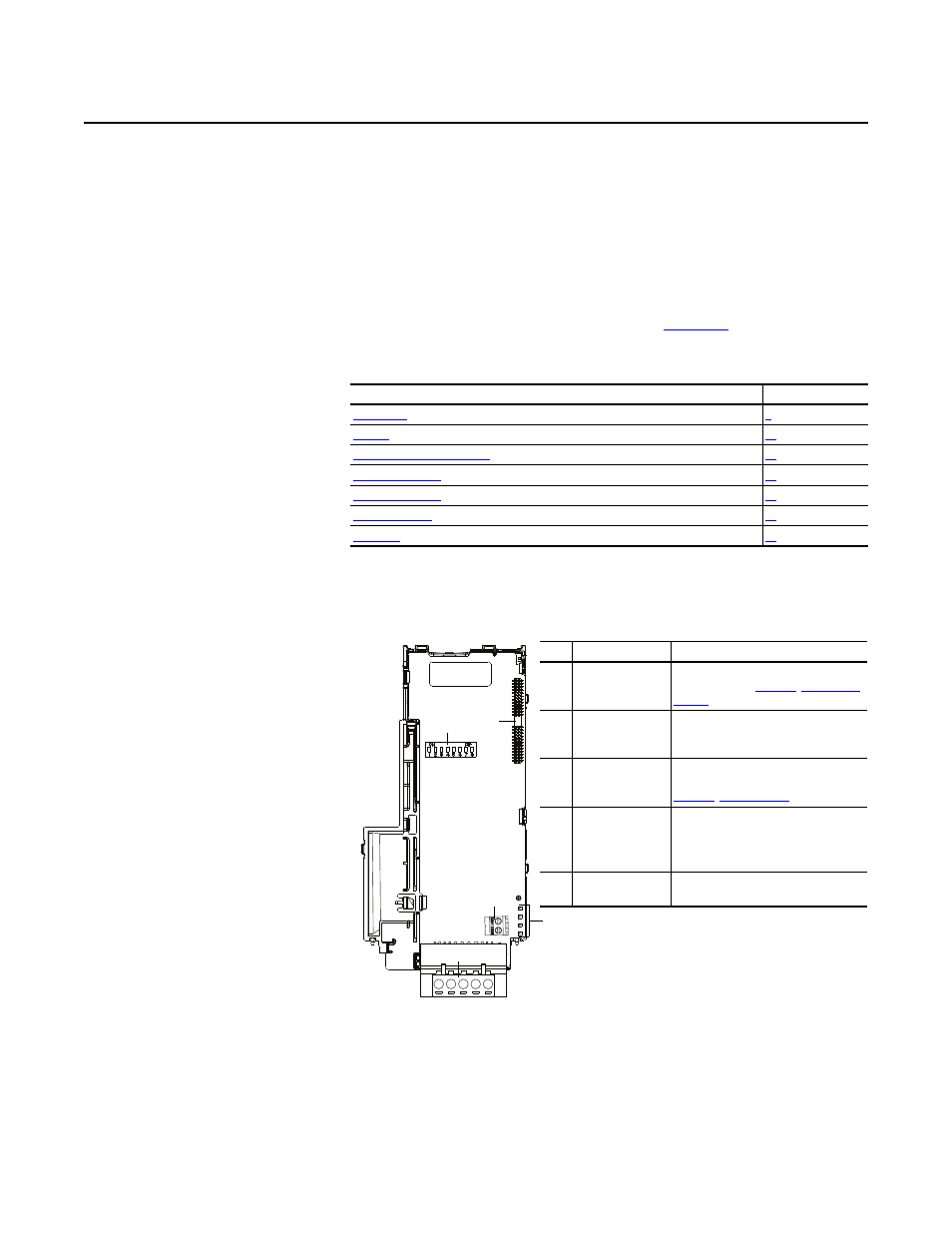

Components Components of the DeviceNet Adapter
Topic Page
Components 9
Features 10
Understanding Parameter Types 10
Compatible Products 11
Required Equipment 11
Safety Precautions 12
Quick Start 13
Item Part Description
➊ Node Address/Rate
switches Switches for setting the node address and
network data rate.
Chapter 2 , Installing the
Adapter .
➋ Communication card-
Drive header A 40-pin, double-row shrouded female
header. An interface connector is used to
connect this header to a header on the drive.
➌ Status indicators Three LEDs that indicate the status of the
connected drive, adapter and network. See
Chapter 8 , Troubleshooting
➍ CS1/CS2 terminals Provides a clean ground for the
communication bus cable shields.
CS1 or CS2 should be connected to a clean
ground or PE ground on the drive.
➎ DeviceNet connector A 5-pin connector to which a 5-pin linear
plug can be connected.
25-COMM-D
➊
➋
➌
➍
➎
