34 Rockwell Automation Publication 520COM-UM002A-EN-E - April 2013
Chapter 4 Configuring the I/O
6. Verify that your computer recognizes the drive. Select Communications >
RSWho
and, in the menu tree, click the “+” symbol next to the Ethernet
controller.
7. Note that two other RSLinx drivers (Ethernet devices or Remote Devices
through Linx Gateway) may be used. Use one of these drivers if the
“EtherNet/IP Driver” cannot see your drive.

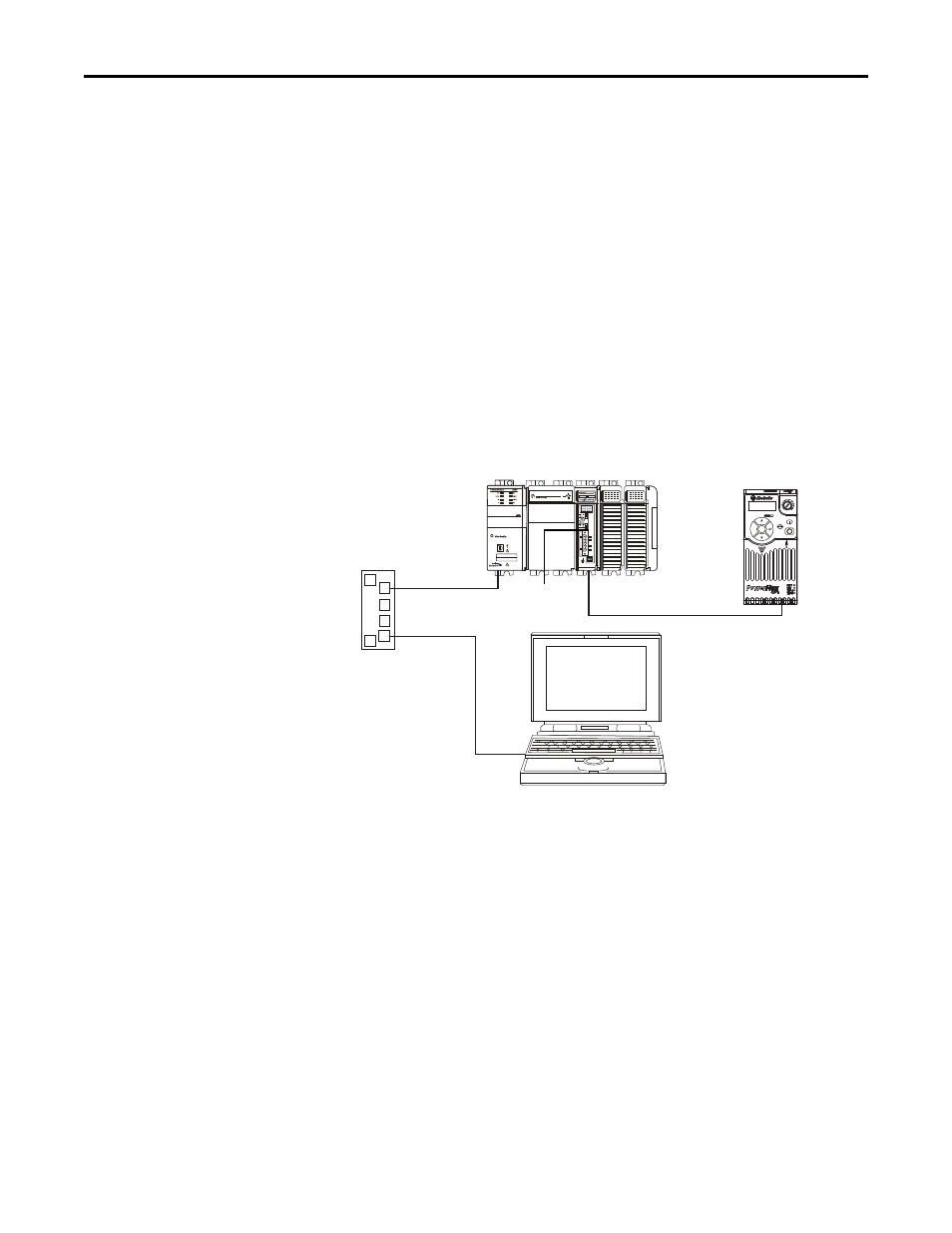

CompactLogix Example After the adapter is configured, the drive and adapter will be a single node on the
network. This section provides the steps needed to configure a simple EtherNet/
IP network. In our example, we will configure a 1769-L36ERM CompactLogix
controller with 1769-SDN scanner to communicate with a drive using Logic
Command/Status, Reference/Feedback, and eight Datalinks (four to read and
four to write) over the network.
Adding the Controller to the I/O Configuration
To establish communications between the controller and adapter over the
network, you must first add the CompactLogix controller and its embedded
EtherNet/IP bridge to the I/O configuration.
1 (Front) 1 (Front) 1 (Front)
2 (Rear)
00:00:BC:2E:69:F6
Esc Sel
Ethernet
switch
IP Address 192.168.1.3
1769-L36ERM CompactLogix controller
with embedded EtherNet/IP bridge
Node 1
PowerFlex 525 drive with 25-COMM-D
DeviceNet adapter (Frame A shown)
Computer with
Ethernet connection
Node 0
1769-SDN scanner
DeviceNet
