Rockwell Automation Publication 520COM-UM002A-EN-E - April 2013
17
Installing the Adapter
Chapter 2
Data Rate Switch Settings (UP = ON = 1)
Setting Single-Drive or Multi-Drive Mode
To select between Single-Drive or Multi-Drive mode, see
Configuration for Multi-Drive Mode on page 73
Connecting the Adapter to
the Drive
1.
Remove power from the drive.
2.
Use static control precautions.
3.
Separate the drive’s control module from the power module.

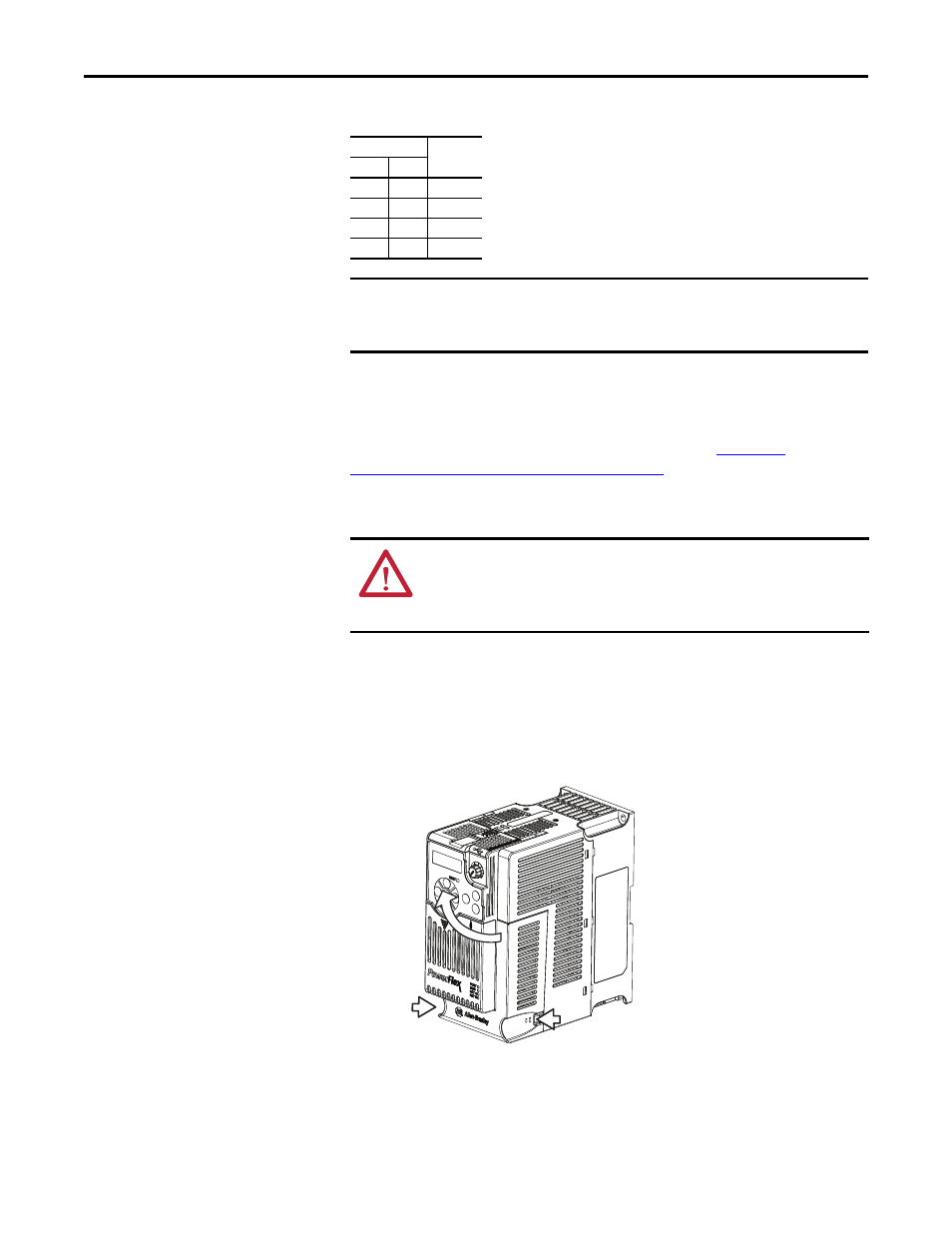

a. Press and hold down the catch on both sides of the frame cover, then
pullout and swing upwards to remove (Frames B...E only).
Switch Setting Data Rate
SW 7
SW 8
0
0
125 kbps
1
0
250 kbps
0
1
500 kbps
1
1
Autobaud
IMPORTANT
If all switches are in the OFF position (all 0’s), then the Node Address and Data
Rate are determined by parameter settings (Device parameters 07 [Net Addr
Cfg] and 09 [Net Rate Cfg]).
ATTENTION: Risk of injury or death exists. The PowerFlex drive may contain
high voltages that can cause injury or death. Remove power from the drive, and
then verify power has been discharged before connecting the DeviceNet
adapter to the network.
