Rockwell Automation 25-COMM-D PowerFlex 525 DeviceNet Adapter User Manual
Page 18
18
Rockwell Automation Publication 520COM-UM002A-EN-E - April 2013
Chapter 2
Installing the Adapter

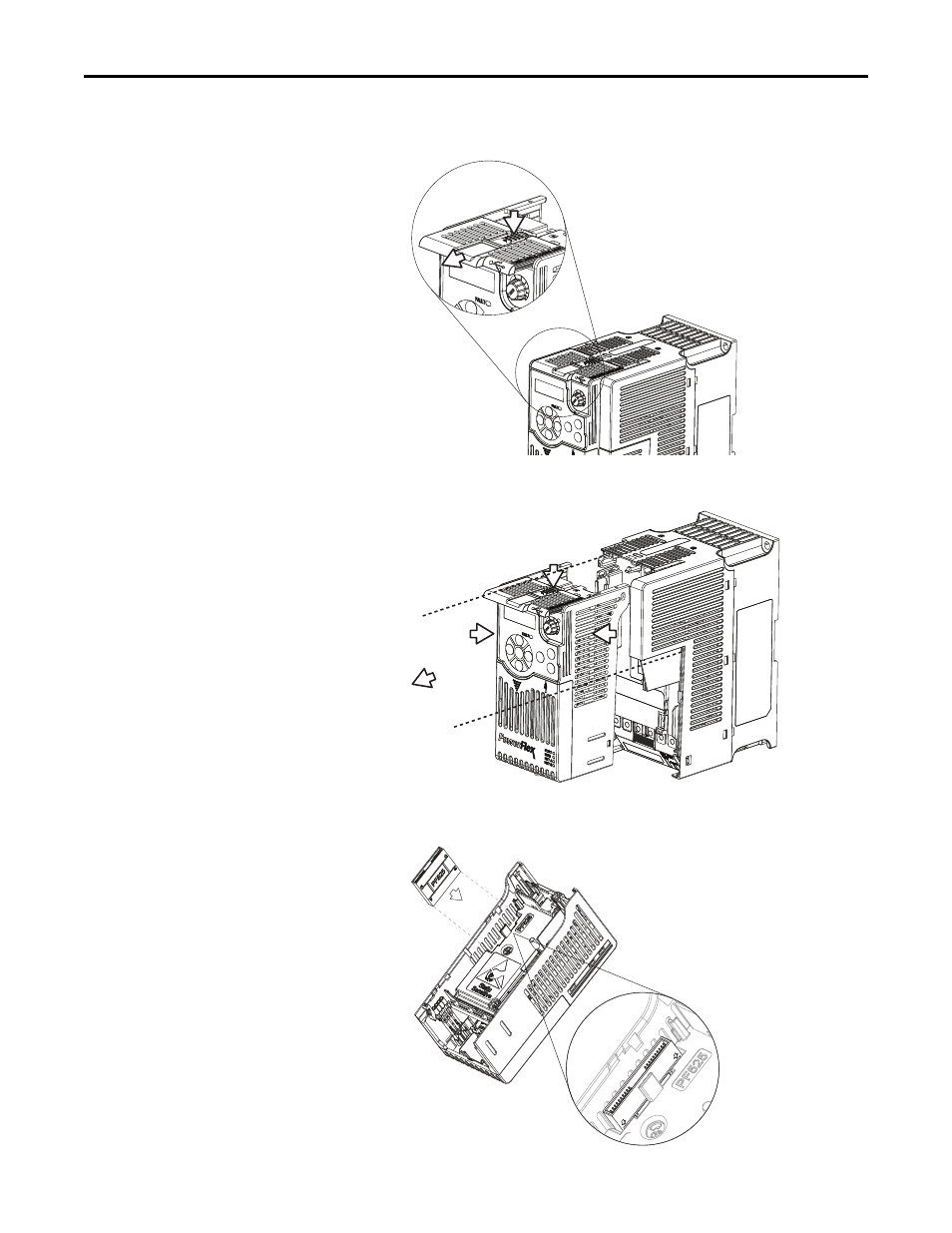

b. Press down and slide out the top cover of the control module to unlock
it from the power module.
c. Hold the sides and top of the control module firmly, then pull out to
separate it from the power module.
4.
Insert the interface connector for the adapter into the header located at the
back of the control module.
