Chapter 4
Configuring the I/O
1.
From the Communications menu in the RSLogix 5000/Logix Designer
dialog box, choose Download.

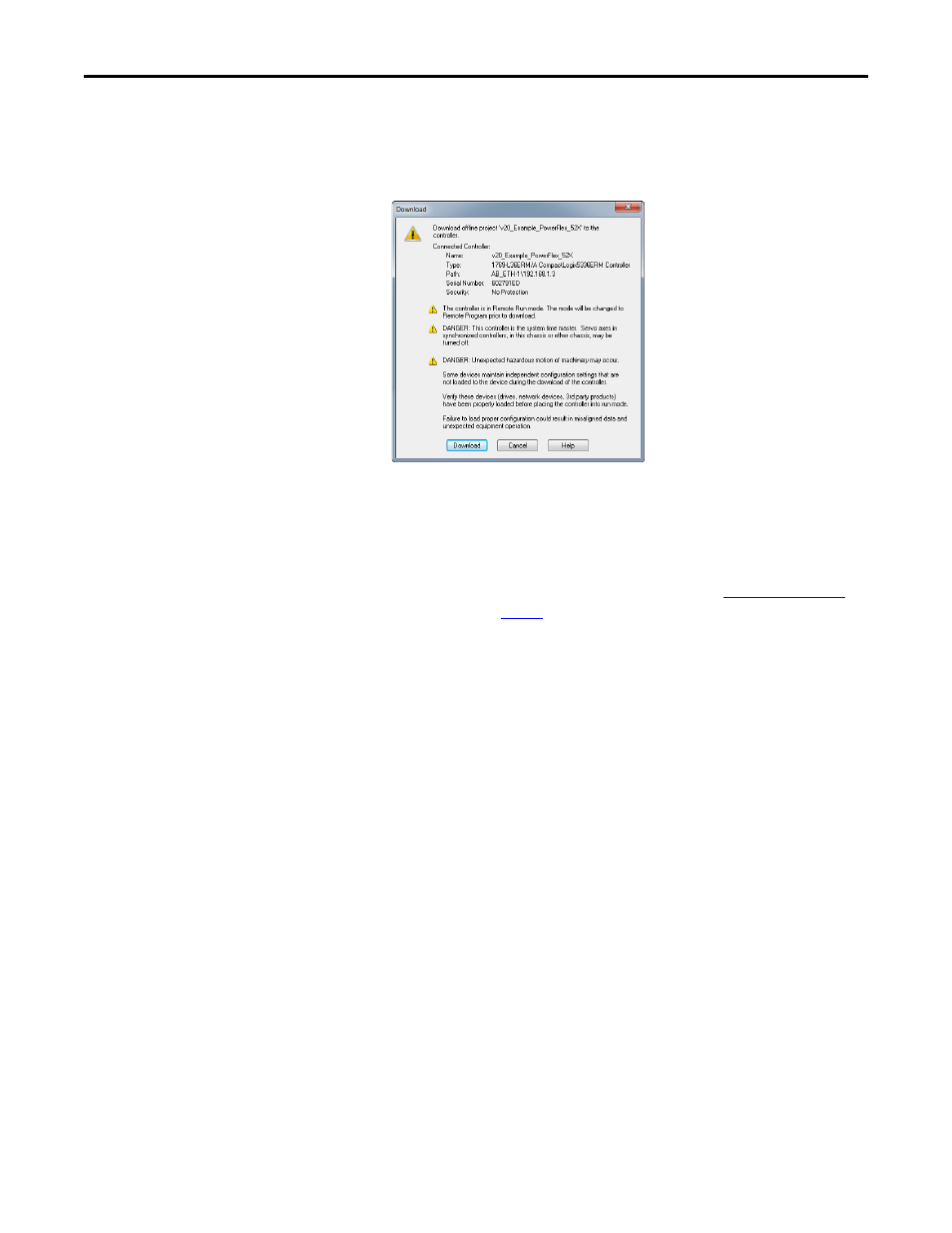

The Download dialog box appears.
2.
Click Download to download the configuration to the controller.
When the download is successfully completed, RSLogix 5000/Logix
Designer software goes into the Online mode and the I/O OK box in the
upper-left of the dialog box should be steady green.
3.
From the File menu, choose Save.
If this is the first time you saved the project, the Save As dialog box appears.
a. Navigate to a folder.
b. Type a file name.
c. Click Save to save the configuration as a file on your computer.
4.
To ensure that the present project configuration values are saved,
RSLogix 5000/Logix Designer software prompts you to upload them.
Click Yes to upload and save.
5.
Place the controller in Remote Run or Run Mode.
TIP
If a message box reports that RSLogix 5000/Logix Designer software is
unable to go online, find your controller in the Who Active dialog box.
From the Communications menu, choose Who Active. After finding
and selecting the controller, click Set Project Path to establish the path.
If your controller does not appear, you need to add or configure the
DeviceNet drive with RSLinx software. See
and RSLinx online help for details.
