16 Rockwell Automation Publication 520COM-UM002A-EN-E - April 2013
Chapter 2 Installing the Adapter

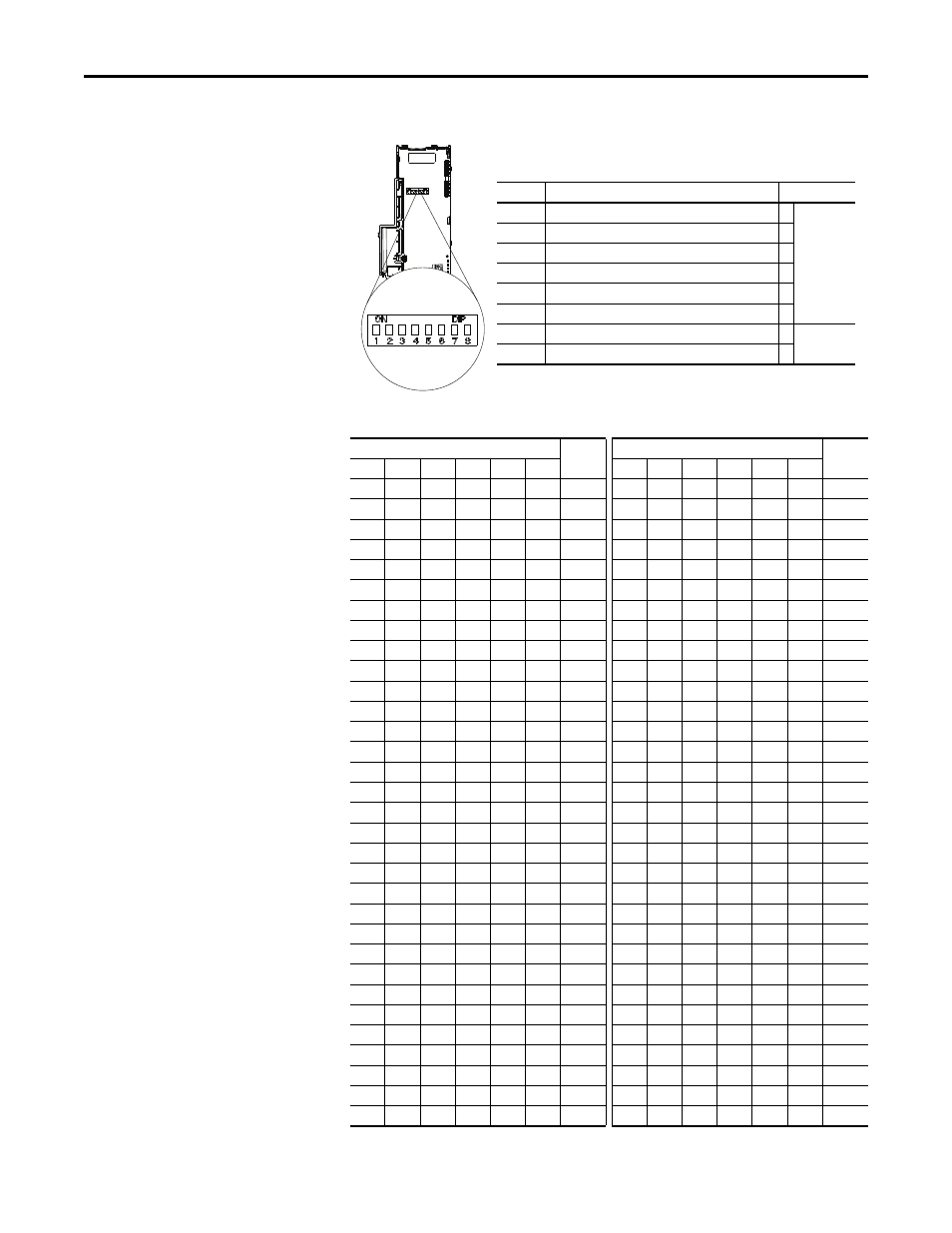

Setting the Node Address and Data Rate Using the DIP Switches
Node Address Switch Settings (UP = ON = 1)
Switch Setting Node
Address Switch Setting Node
Address
SW 1 SW 2 SW 3 SW 4 SW 5 SW 6 SW 1 SW 2 SW 3 SW 4 SW 5 SW 6
0 0 0 0 0 0 0 0 0 0 0 0 1 32
1 0 0 0 0 0 1 1 0 0 0 0 1 33
0 1 0 0 0 0 2 0 1 0 0 0 1 34
1 1 0 0 0 0 3 1 1 0 0 0 1 35
0 0 1 0 0 0 4 0 0 1 0 0 1 36
1 0 1 0 0 0 5 1 0 1 0 0 1 37
0 1 1 0 0 0 6 0 1 1 0 0 1 38
1 1 1 0 0 0 7 1 1 1 0 0 1 39
0 0 0 1 0 0 8 0 0 0 1 0 1 40
1 0 0 1 0 0 9 1 0 0 1 0 1 41
0 1 0 1 0 0 10 0 1 0 1 0 1 42
1 1 0 1 0 0 11 1 1 0 1 0 1 43
0 0 1 1 0 0 12 0 0 1 1 0 1 44
1 0 1 1 0 0 13 1 0 1 1 0 1 45
0 1 1 1 0 0 14 0 1 1 1 0 1 46
1 1 1 1 0 0 15 1 1 1 1 0 1 47
0 0 0 0 1 0 16 0 0 0 0 1 1 48
1 0 0 0 1 0 17 1 0 0 0 1 1 49
0 1 0 0 1 0 18 0 1 0 0 1 1 50
1 1 0 0 1 0 19 1 1 0 0 1 1 51
0 0 1 0 1 0 20 0 0 1 0 1 1 52
1 0 1 0 1 0 21 1 0 1 0 1 1 53
0 1 1 0 1 0 22 0 1 1 0 1 1 54
1 1 1 0 1 0 23 1 1 1 0 1 1 55
0 0 0 1 1 0 24 0 0 0 1 1 1 56
1 0 0 1 1 0 25 1 0 0 1 1 1 57
0 1 0 1 1 0 26 0 1 0 1 1 1 58
1 1 0 1 1 0 27 1 1 0 1 1 1 59
0 0 1 1 1 0 28 0 0 1 1 1 1 60
1 0 1 1 1 0 29 1 0 1 1 1 1 61
0 1 1 1 1 0 30 0 1 1 1 1 1 62
1 1 1 1 1 0 31 1 1 1 1 1 1 63
Switch Description Default
SW1 Least Significant Bit (LSB) of Node Address 1 Node 63
SW2 Bit 1 of Node Address 1
SW3 Bit 2 of Node Address 1
SW4 Bit 3 of Node Address 1
SW5 Bit 4 of Node Address 1
SW6 Most Significant Bit (MSB) of Node Address 1
SW7 Least Significant Bit (LSB) of Data Rate 1 Autobaud
SW8 Most Significant Bit (MSB) of Data Rate 1
