36

Rockwell Automation Publication 520COM-UM002A-EN-E - April 2013

Chapter 4

Configuring the I/O

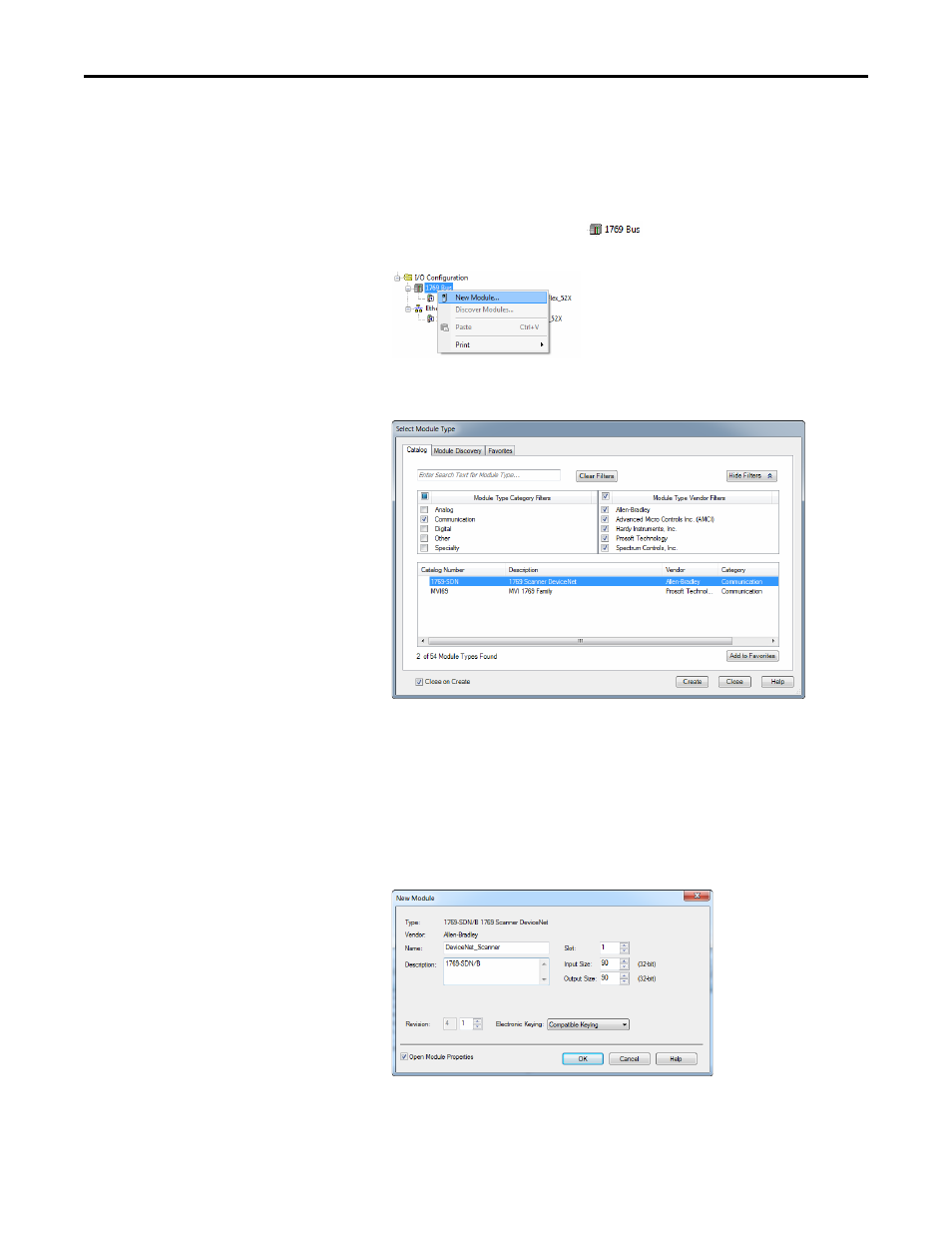

Adding the Scanner to the I/O Configuration

To establish communication between the controller and adapter over the
network, you must add the scanner to the I/O configuration.

1.

In the treeview, right-click the

icon under the I/O Configuration

folder and choose New Module.... The Select Module dialog box appears.

2.

Select the Communication group to display all of the available
communication modules.

3.

In the list, select the DeviceNet scanner used by your controller. In this
example, we used a 1769-SDN DeviceNet scanner, so the 1769-SDN
option is selected.

4.

Click Create.

5.

In the select Major Revision pop-up dialog box, select the major revision of
its firmware.

6.

Click OK. The scanner’s New Module dialog box appears.
