Emergency Operations
3606 Rev 11/99 91

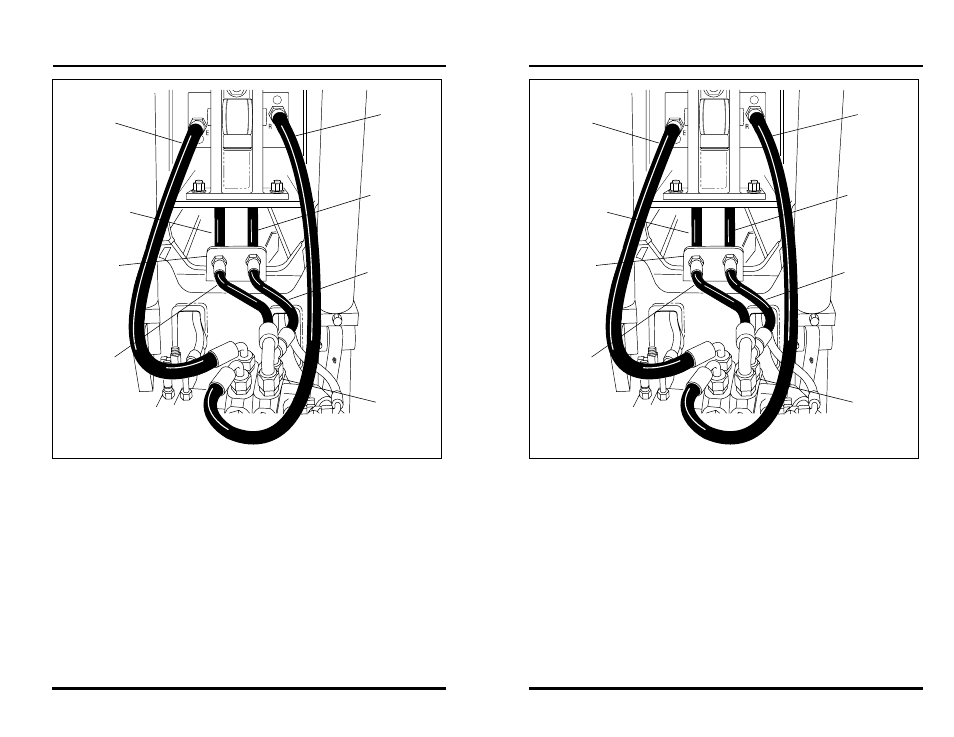

Figure 57
13. Completely remove the load from the carriage and/or attachment if
you haven’t already done so.
14. Return to the cab, fasten your seat belt and start the engine.
15. Cycle the lift and extend cylinders several times to bleed air from
the system. Check for leaks.
16. Recheck the hydraulic oil level. Add oil if necessary.
OS0430
Boom
Retract
Line
Boom
Extend
Line
Bulkhead
(Ref.)
Control
Valve
(Ref.)
Boom Lift
Line (Lift
Cylinder to
Bulkhead)
Boom Lift
Line (Bulk-
head to
Control
Valve)
Boom Lower
Line (Lift
Cylinder to
Bulkhead)
Boom
Lower
Line
(Bulkhead
to Control
Valve)
