SkyTrak 3606 Operation Manual - Manual (Page 87)

Emergency Operations
3606 Rev 11/99 85

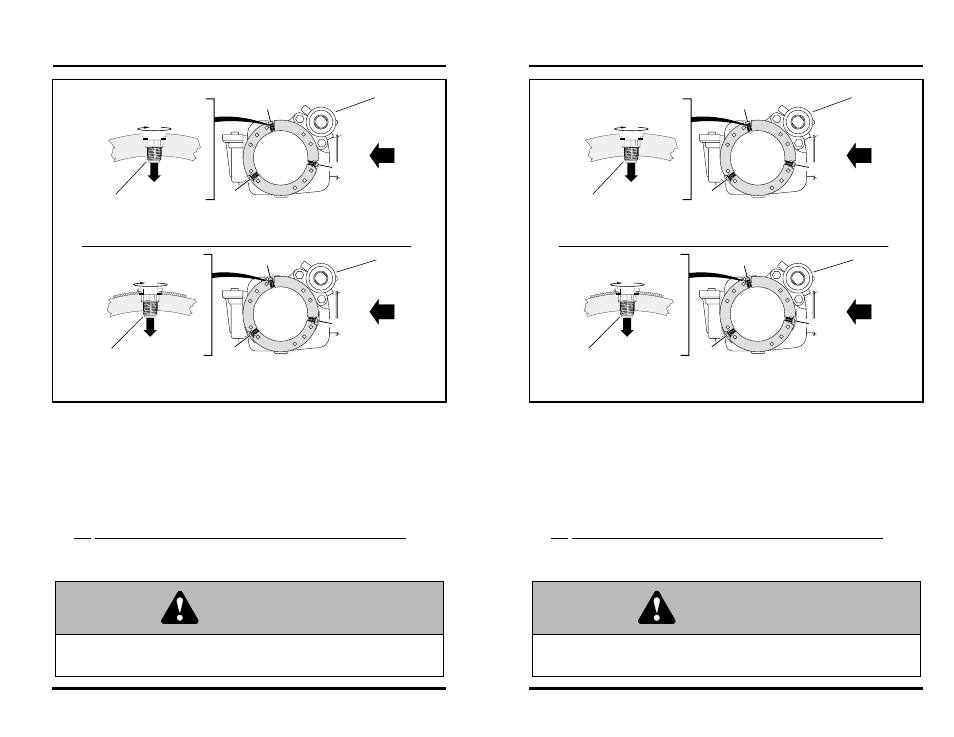

Figure 54
9. Crawl out from under the vehicle and clear the area of any unnec-
essary personnel.
10. Before removing the blocking from each of the four tires, have
someone depress and hold the service brake. Carefully remove the
blocking from each of the four tires.
11. Tow the vehicle to a secure location.
12. Block all four wheels and continue following the procedures.
Re-activating the Parking Brakes
WARNING
BLOCK ALL FOUR WHEELS. Failure to do so could result in death or
serious injury from vehicle roll away.
LEFTSIDE CROSS SECTION
OF FRONT AXLE
FRONT
LEFTSIDE CROSS SECTION
OF FRONT AXLE
A
C
B
A
C
B
FRONT
OS2210
Brake
Release
Bolt
Steering
Cylinder
(Ref.)
Turn Clockwise to
Release Brake
EARLY PRODUCTION
CURRENT PRODUCTION
Brake
Release
Bolt
Steering
Cylinder
(Ref.)
Turn Clockwise to
Release Brake
Emergency Operations
3606 Rev 11/99 85
Figure 54
9. Crawl out from under the vehicle and clear the area of any unnec-
essary personnel.
10. Before removing the blocking from each of the four tires, have
someone depress and hold the service brake. Carefully remove the
blocking from each of the four tires.
11. Tow the vehicle to a secure location.
12. Block all four wheels and continue following the procedures.
Re-activating the Parking Brakes
WARNING
BLOCK ALL FOUR WHEELS. Failure to do so could result in death or
serious injury from vehicle roll away.
LEFTSIDE CROSS SECTION
OF FRONT AXLE
FRONT
LEFTSIDE CROSS SECTION
OF FRONT AXLE
A
C
B
A
C
B
FRONT
OS2210
Brake
Release
Bolt
Steering
Cylinder
(Ref.)
Turn Clockwise to
Release Brake
EARLY PRODUCTION
CURRENT PRODUCTION
Brake
Release
Bolt
Steering
Cylinder
(Ref.)
Turn Clockwise to
Release Brake
