42

3606 Rev 11/99

Operation

Cab Heater/
Cab Air Conditioning Controls

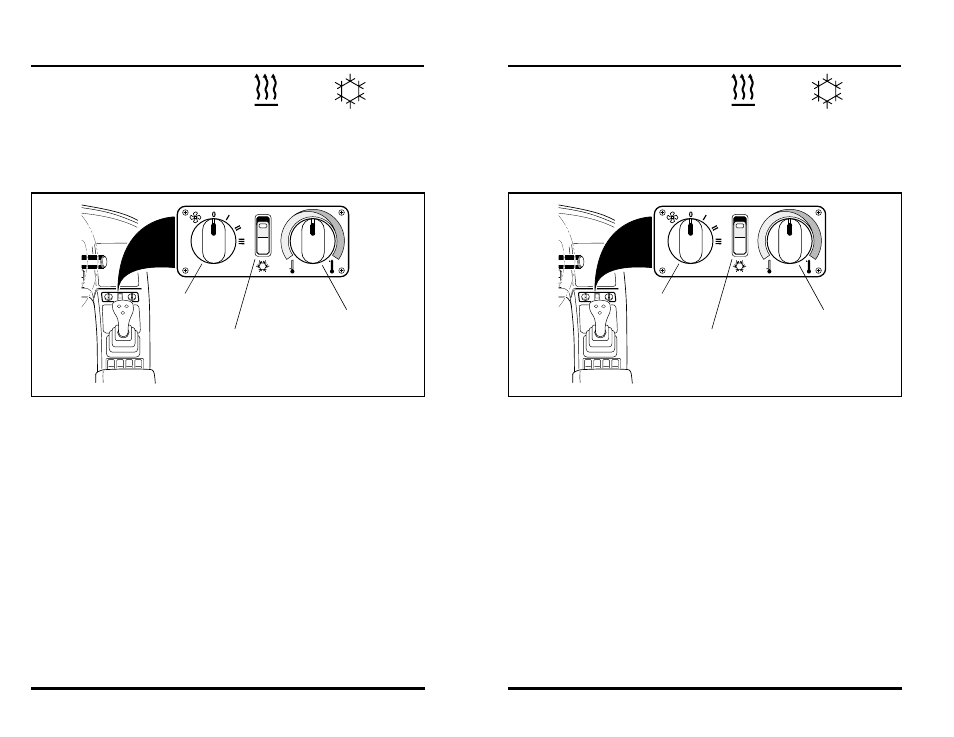

(Figure 29)

The cab heater and air conditioning controls are located directly below the
vehicles Capacity Chart Booklet. From left to right the control panel consists
of: a stepped fan control knob, an A/C on-off rocker switch (A/C units only),
and a temperature control knob.

Figure 29

Control of air flow is made by opening, closing or redirecting the air vent
louvers in five seperate locations inside the cab. For instance, if the front
glass needs rapid defrosting, redirect the air flow at the front two vents
(directing the vent louvers toward the glass) and close the remaining three
vents. This will increase the volume of air flow to the front glass and speed
defrosting.

To heat the cab:

if so equipped, turn A/C rocker switch to OFF position,

turn temperature control knob to far right position (red = hot),

direct desired air flow by adjusting vent louvers,

turn fan control to “3” to assure rapid warm-up.
