General Maintenance

Fresh Air Intake Filter

Periodically remove the cabs rear panel and inspect the fresh air intake filter
(Figure 68). The filter must be cleaned sometimes as often as twice a day,
depending on the operating environment. This is done by removing the filter
and shaking it. Pressurized air can also be used to blow out dust. The filter
will clean outside air when pressurizing the cab. The filter should be
replaced when required.

NOTE: Correctly position the filter so the air flow is directed into the cab.

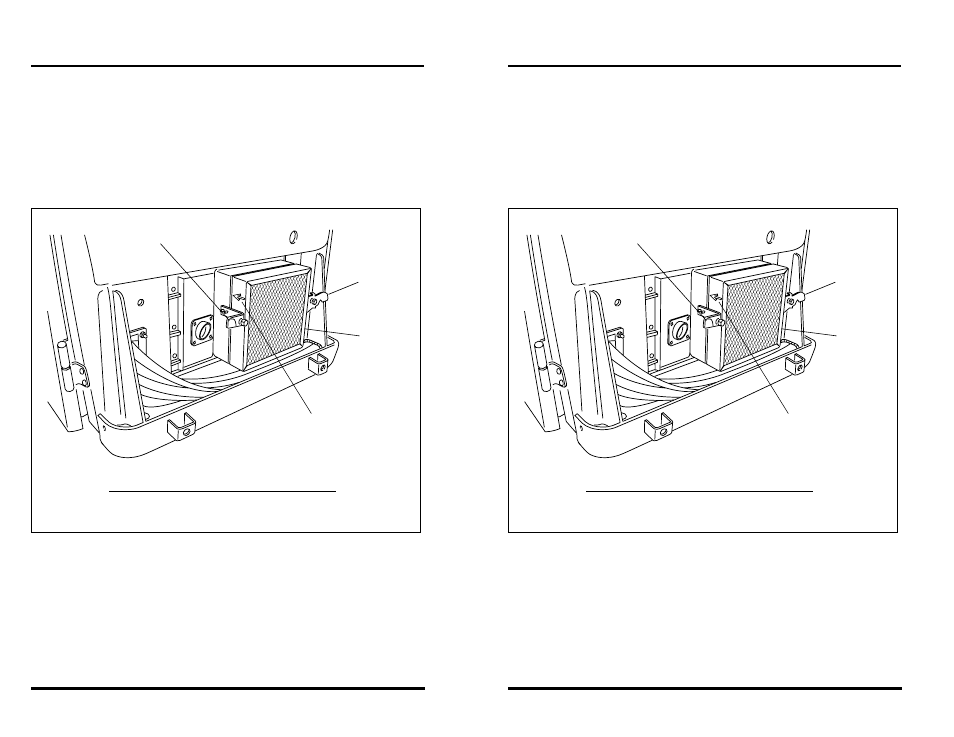

Figure 68

OS1790

Filter

Latch

Filter

Latch

Fresh

Air

Intake

Filter

Note

Direction

of

Air Flow

REAR OF CAB with REAR PANEL REMOVED
