Operation
3606 Rev 11/99 75
All approved forks for this vehicle are marked with a maximum load capacity
rating. This rating is stamped on the left edge of the fork just below the fork
pivot shaft (Figure 51). The rating is listed in U.S. pounds and based upon a
24” (610 mm) load center. This rating specifies the maximum load capacity
that the individual fork can safely carry at a maximum load center of 24”
(610 mm). Since forks are always used in multiples, the total rating of any
combination of forks will be the sum of their rated capacity. Other than block
forks, all forks should be used in matched pairs. Block forks should be used
in matched sets.

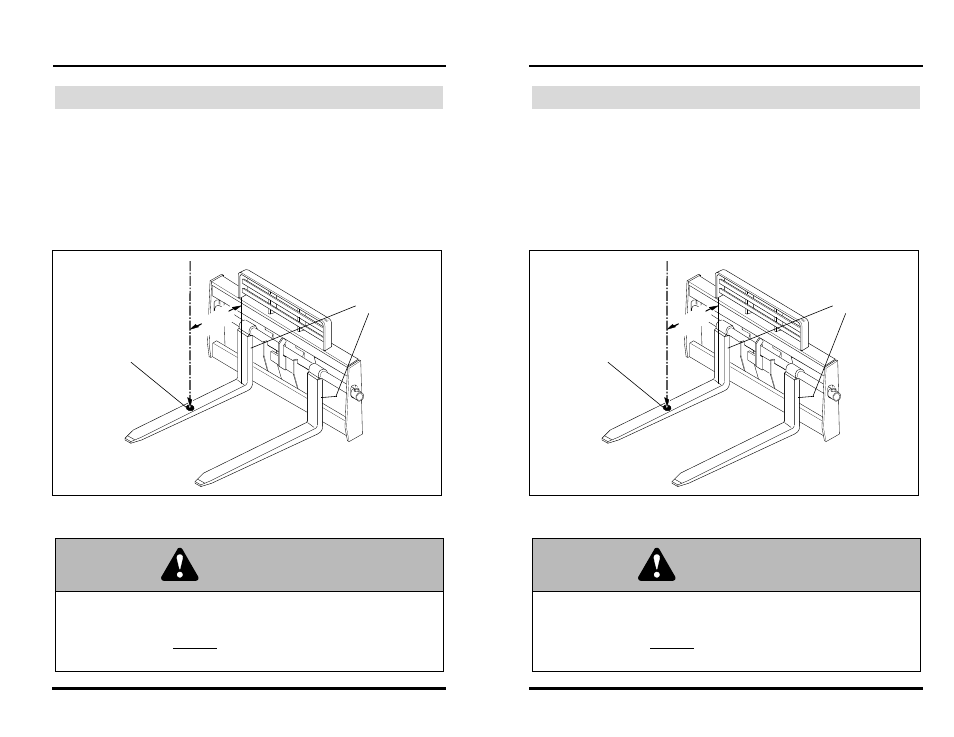

Figure 51
Fork Rating
WARNING
DO NOT exceed the total rated capacity of the specific pair of forks
being used. Forks can break causing loss of load and possible death or
serious injury to the operator or personnel in the area. If the total rated
capacity of the forks exceeds the capacity of the vehicle, the vehicle
capacity should not be exceeded.
4000 x 24
4000 x 24
24 in.
(610mm)
OS0390
Stamped
Load
Rating
Load
Center
