The joystick will provide the following typical functions for each specified
attachment listed below if they are connected properly. Operation will be
reversed if incorrectly connected. Shutting the vehicle down, releasing the
hydraulic pressure and reversing the disconnect couplings on the hoses
that are supplied with the attachment will often correct the problem. Contact
your local Sky Trak distributor or the Sky Trak service department for more
information.
Side Tilt Carriage Operation
• Handle right............................. tilt right
• Handle left ............................... tilt left
Swing Carriage Operation
• Handle right............................. swing right
• Handle left ............................... swing left
Auxiliary Hydraulic Control - Optional
(Center button depressed)
MODE 4
The auxiliary hydraulic control regulates the functions of an optional
attachment. Some of the optional attachments that require auxiliary hydraulics
are: Side Tilt Carriage, Swing Carriage.

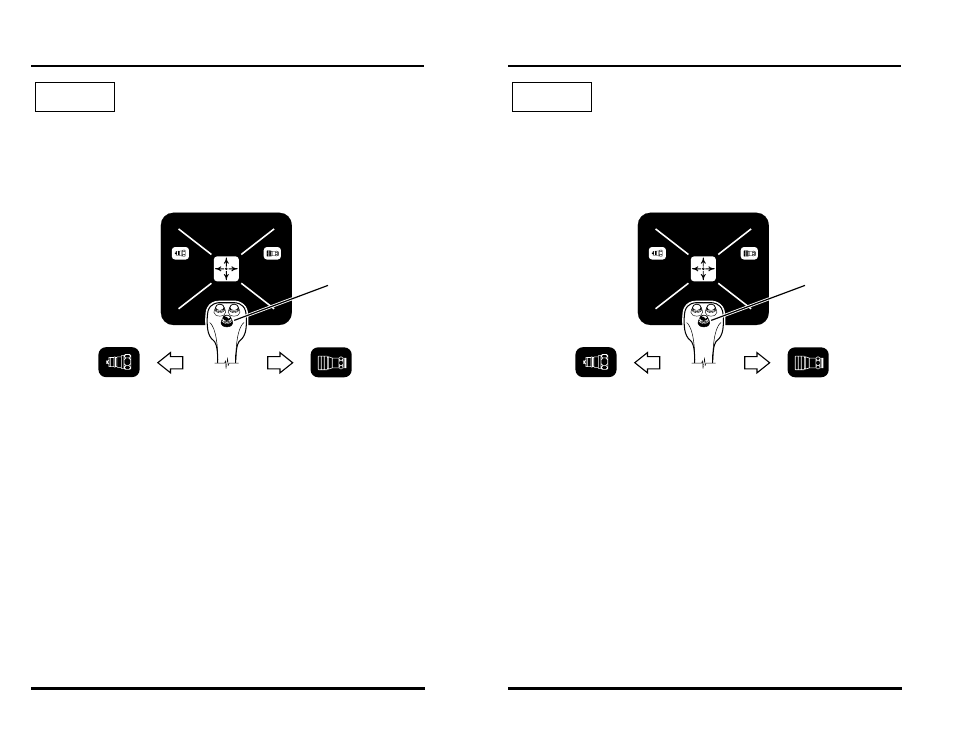

OS2090
When the joystick is moved to
the left, it will provide hydraulic
system pressure through the
male coupling for the auxiliary
attachment.
When the joystick is moved to
the right, it will provide hydraulic
system pressure through the
female coupling for the auxiliary
attachment.
Depress
Center
Button
