Operation
Locked Mode
(Figure 35)
With the boom above 40° and by activating one or more of the following
functions listed below, the Stabil-TRAK system is in the locked mode and
the rear axle is locked so it is rigid with the frame. The Stabil-TRAK light will
be ON.
• engaging the parking brake switch
• placing the travel select lever in (N) NEUTRAL
• depressing and holding the service brake pedal
The frame sway control will function slower than normal in this mode.

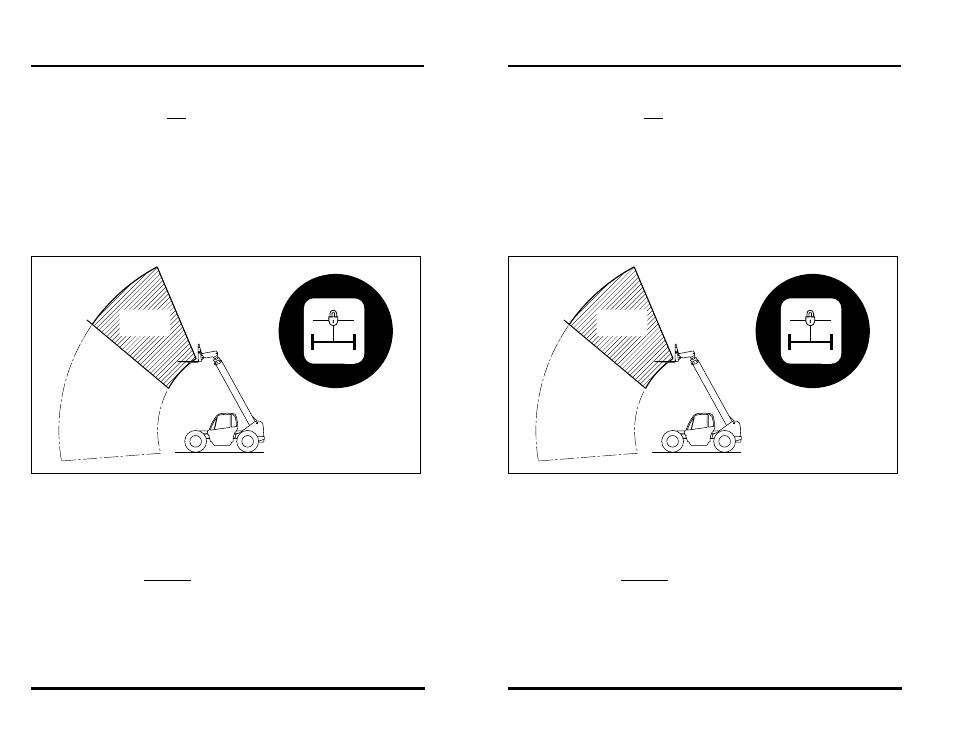

Figure 35
Final Positioning Mode
(Figure 36)
With the boom above 40°, the Stabil-TRAK System is now in final
positioning mode. In this mode the rear axle is unlocked and is allowed to
pivot but will respond SLOWLY to changes in terrain. The Stabil-TRAK
light will be OFF.
The frame sway control will function normally in this mode.
IMPORTANT! It is important that you regularly check that this system is
functioning properly. Refer to the test procedure on page 56 for the proper
system function.
Above
40°
LOCKED
MODE
Stabil-TRAK
Light
"ON"
