Operation

3606 Rev 11/99

53

Understanding the Stabil-TRAK™ System

The following describes the three basic modes of the patented Stabil-TRAK
system. The vehicle may operate in any one of these three modes.

Free Pivot Mode

(Figure 34)

With the boom below 40°, the Stabil-TRAK system is in the free pivot mode
and the rear axle is allowed to pivot freely. The frame sway control will
function normally. The Stabil-TRAK light will be OFF.

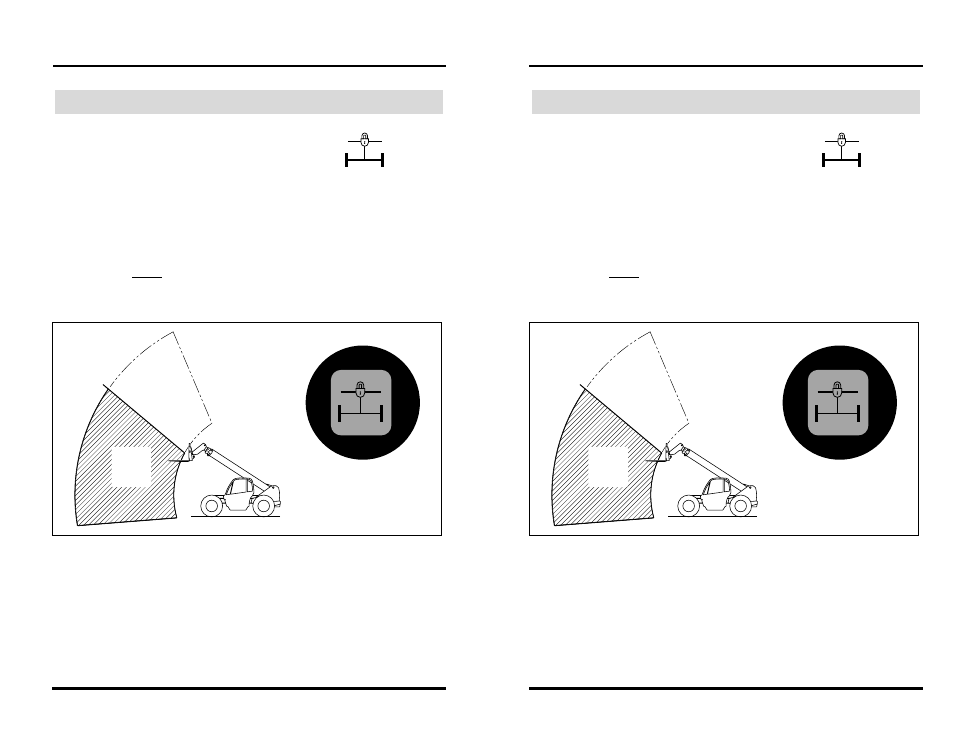

Figure 34

Operating

OS1970

Stabil-TRAK

Light

"OFF"

Below

40°

FREE

PIVOT

MODE
