Operation
3606 Rev 11/99
31
The display panel provides the operator with important information. It is
“user friendly” and only provides the operator with the information needed at
any given time.
POWER-UP Lights
(Figure 14)
At POWER-UP the display panel will illuminate all its lights for several
seconds as a test function. During this time an audible alarm will sound.
The FASTEN SEAT BELT and READ OPERATOR MANUAL symbols will
remain illuminated for five to seven seconds. This is an important reminder
to the operator to fasten the seat belt and to review the operators manual if
there are any questions about safe operation.
After the five to seven second time period the audible alarm will cease and
the FASTEN SEAT BELT and READ OPERATOR MANUAL symbols will go
out.
If at any time the operator gets up off the seat, these lights will illuminate
again and shut off shortly after the operator sits back down. Do not forget to
refasten your seat belt before operation. Always wear the seat belt when
operating the vehicle.

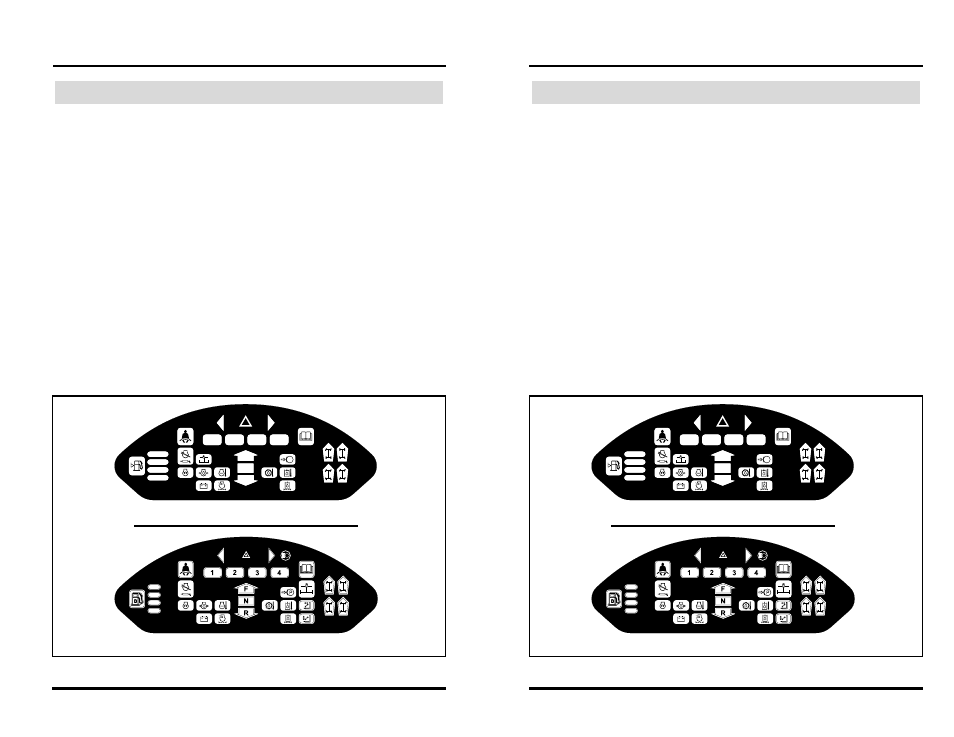

Figure 14
Operators Display Panel
1
2
3
4
F
N
R
P
D
OS0222
