Operation
3606 Rev 11/99
65

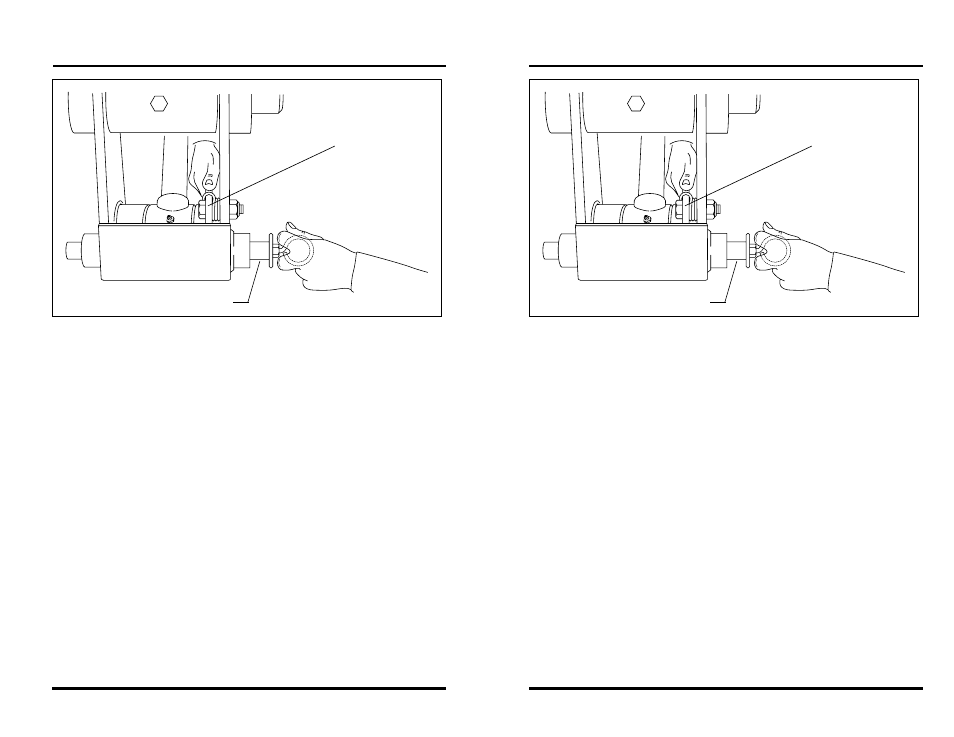

Figure 42
6. Return to the operators compartment, fasten the seat belt and
lower the attachment to the ground in a level position. Tilt the
attachment forward. This will rotate the quick attach link back away
from the attachment.
7. Lower, then retract the boom until the attachment pivot pins have
disconnected from the attachment.
Attachment Reconnect
1. Be sure you are performing this procedure on level ground. Position
the vehicle directly behind the attachment to be mounted.
2. Tilt the quick attach backward.
3. Extend the boom approximately 10 feet (3,05 meters) and drive the
vehicle forward until the attachment pivot pins are below and
between the two hooks on the attachment.
4. Raise the boom until the attachment pivot pins have seated fully in
the hooks of the attachment.
5. Tilt the attachment up slightly. The quick attach link should be tight
against the rear of the attachment and the holes in the link and the
attachment should be aligned.
OS0331
Quick Attach Pin
Quick
Attach
Pin
Lock
Lever
Operation
3606 Rev 11/99
65
Figure 42
6. Return to the operators compartment, fasten the seat belt and
lower the attachment to the ground in a level position. Tilt the
attachment forward. This will rotate the quick attach link back away
from the attachment.
7. Lower, then retract the boom until the attachment pivot pins have
disconnected from the attachment.
Attachment Reconnect
1. Be sure you are performing this procedure on level ground. Position
the vehicle directly behind the attachment to be mounted.
2. Tilt the quick attach backward.
3. Extend the boom approximately 10 feet (3,05 meters) and drive the
vehicle forward until the attachment pivot pins are below and
between the two hooks on the attachment.
4. Raise the boom until the attachment pivot pins have seated fully in
the hooks of the attachment.
5. Tilt the attachment up slightly. The quick attach link should be tight
against the rear of the attachment and the holes in the link and the
attachment should be aligned.
OS0331
Quick Attach Pin
Quick
Attach
Pin
Lock
Lever
