General Maintenance

3606 Rev 11/99

115

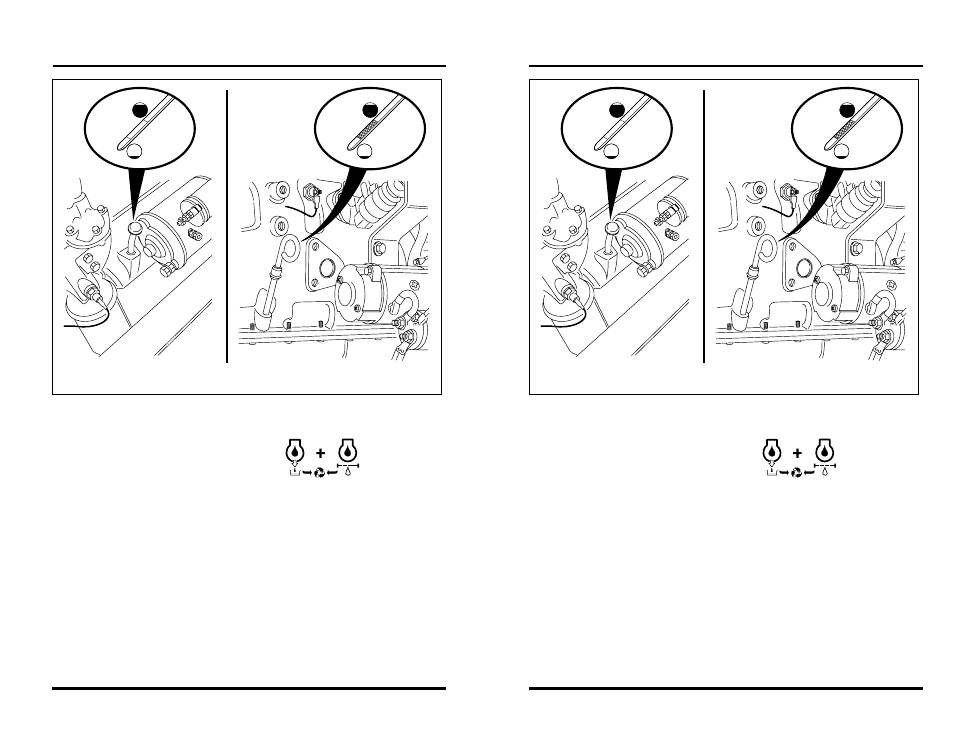

Figure 72

B. Oil and Filter Change

(Cummins & Perkins Engine First 50 Hours)
(Cummins Engine 250 Hour Intervals)
(Perkins Engine 500 Hour Intervals)

1. Operate the engine until warm (approximately 5 minutes).

2. Level the vehicle, ground the carriage, place the travel select lever

in (N) NEUTRAL, come to a complete stop and engage the parking
brake switch and shut off the engine.

3. Unlatch, unlock and open the engine cover.

4. Place a receptacle under the engines oil pan drain.

5. Remove the drain plug from the engine oil pan. (Refer to Figure 73

for proper location of the drain plug for your vehicles engine).

6. Allow the oil to drain completely into the receptacle. Transfer the oil

to a container with a cover and label the container as used motor
oil. Dispose of properly.

OS0522

(PERKINS ENGINE)

(CUMMINS ENGINE)

FULL

ADD

FULL

ADD

OS0830
