General Maintenance

3606 Rev 11/99

131

13. Run vehicle and operate all hydraulic functions. Cycle all modes of

controls to purge air from the system.

14. Check for leaks.

A. Transmission Oil Level Check

(10 Hour Intervals)

1. Level the vehicle, ground the carriage, place the travel select lever

in (N) NEUTRAL and engage the parking brake switch.

2. Check the transmission oil level with the engine at idle and the oil at

normal operating temperature.

3. Remove the transmission dipstick (Figure 87). Check oil level.

4. Add 10W Motor Oil to transmission as required to bring the level up

to the full mark.

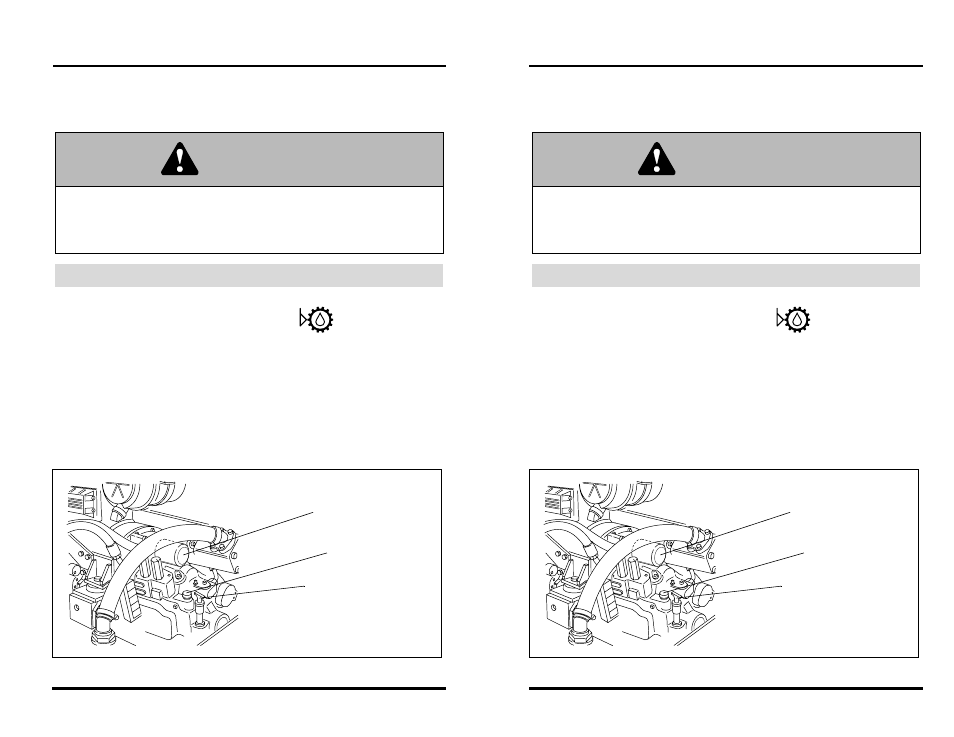

Figure 87

WARNING

DO NOT run or otherwise operate the vehicle if any hydraulic hose or
fitting is found to be leaking or visibly damaged. Serious injury could
result from contact with hydraulic fluid expelled under extreme
pressure from hoses or fittings.

9. Transmission Oil and Filter

OS0890

OS0680

Transmission

Filter (Ref.)

Transmission

Level

Dipstick

Breather

(Ref.)
