Operation
Warning Indicator Lights

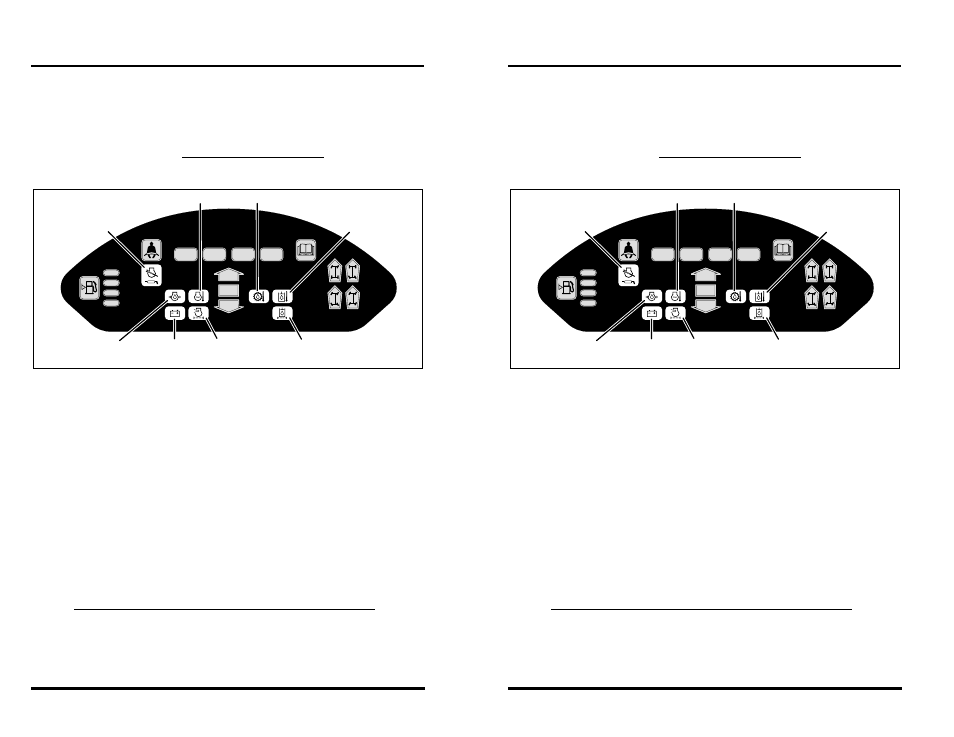

(Figure 17)
There are eight additional “hidden” indicator lights in the display panel that
become illuminated during critical circumstances. All eight warning indicator
lights demand immediate attention and vehicle servicing. In many cases the
vehicle should be shut down AS SOON AS PRACTICAL to prevent serious
mechanical failure.
Figure 17
The eight warning indicator lights are:
A. Engine Maintenance/Vehicle Lubrication Indicator -
This light becomes illuminated every 250 hours of operation. Call
for service. This indicator reminds the operator that important
maintenance operations are required at this time. After servicing,
the indicator can be reset by depressing and holding the reset
button (Figure 18) then turning the ignition switch to the ON
position. The indicator light will illuminate during power-up and will
go out when it is reset. The reset button can then be released.
B. Engine Coolant Temperature Warning Indicator -
This light becomes illuminated when the engine coolant
temperature is too high; above 210° F (85° C). An audible alarm will
also sound.
SHUT THE VEHICLE DOWN AS SOON AS PRACTICAL.
C. Transmission Temperature Warning Indicator -
This light becomes illuminated when the transmission oil
temperature is too high; above 250° F (107° C). An audible alarm
1 2 3 4
F
N
R
D
OS0531
A
B C
D
E F G H
