General Maintenance

3606 Rev 11/99

121

C. Replace In-line Fuel Strainer

(500 Hour Intervals)

1. Unlatch, unlock and open the engine cover.

2. On both Perkins and Cummins engines, the strainer is located

down line from the engines lift pump (Figure 78). Loosen the two
hose clamps that secure the strainer in place.

3. Remove the old strainer and dispose of properly.

4. Install the new strainer with arrow pointing toward the lift pump.

5. Assemble the hoses to the strainer and tighten the hose clamps.

6. Remove air from the fuel system (see “Bleeding Fuel System”).

7. Close, latch and lock the engine cover.

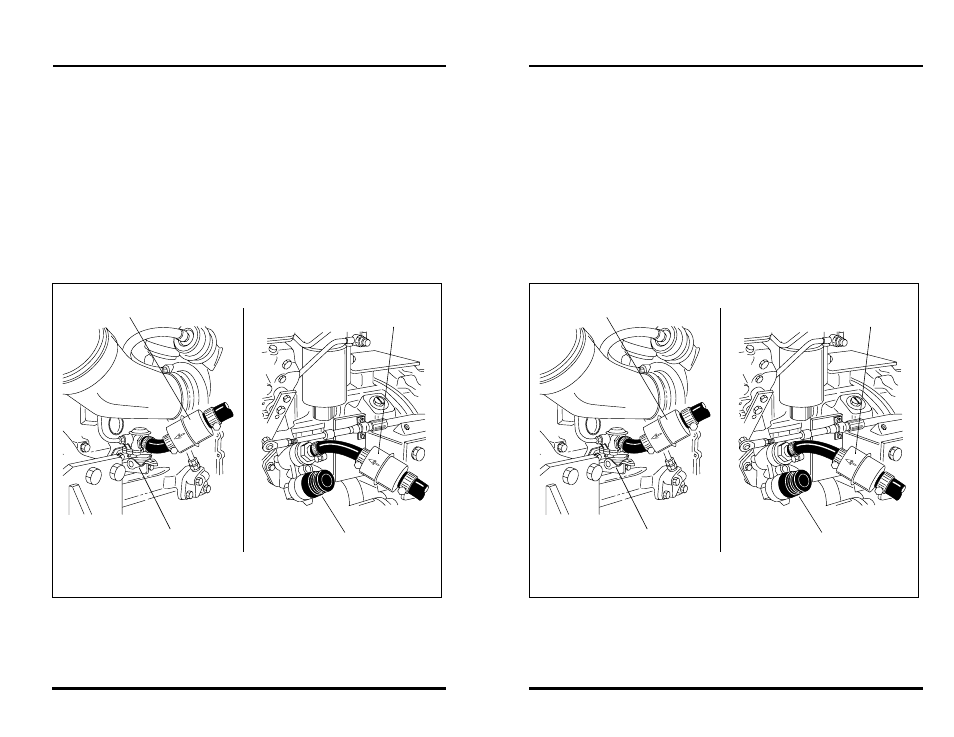

Figure 78

OS0590

(PERKINS ENGINE)

(CUMMINS ENGINE)

In-Line Fuel Strainer

In-Line Fuel

Strainer

Lift Pump

Lift Pump
