Operation

Operators Seat Adjustments

(Figure 13)

The operator’s seat can be adjusted three ways:

A. Fore and Aft Adjustment -

Pull the handle outward to adjust the seats forward and rearward
position. Release the handle to lock the seat in the desired position.

B. Suspension Adjustment -

Turn the knob or handle on the front of the seat to adjust the
suspension to correspond with the operator’s weight. Turn
clockwise to increase stiffness. Turn counter-clockwise to reduce
the stiffness.

C. Backrest Angle Adjustment -

The angle of the seats backrest can be adjusted to suit the
operator. Move the lever or turn the knob located on the left side of
the seats backrest to adjust the angle.

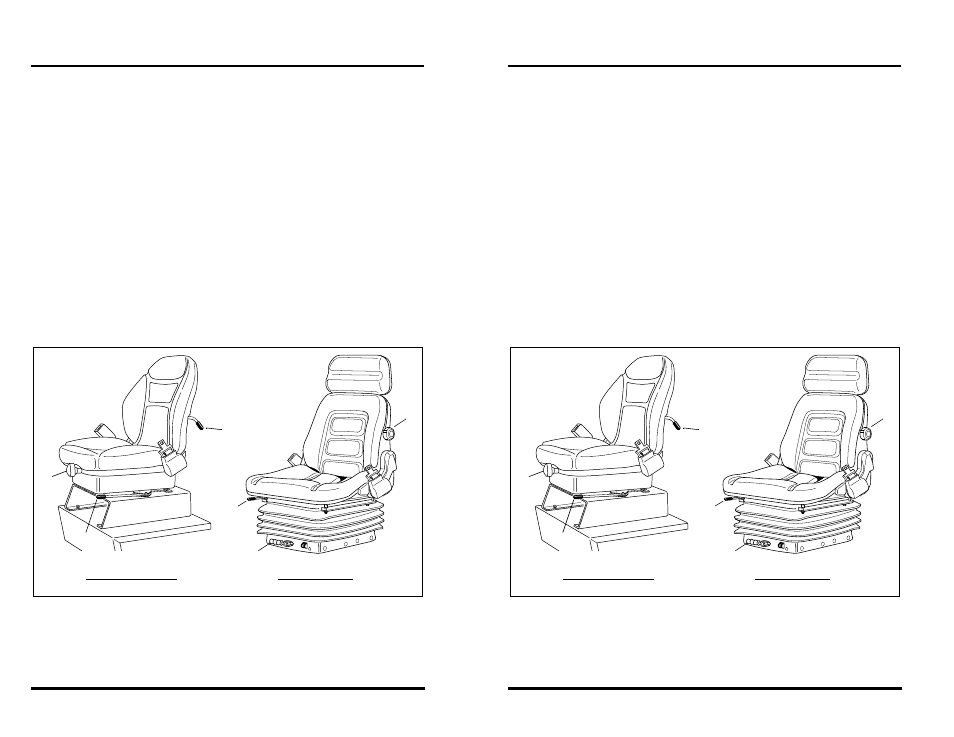

Figure 13

OS0200

A

B

C

A

B

C

OS2110

STANDARD SEAT

DELUXE SEAT
