General Maintenance

3606 Rev 11/99

135

4. Add SAE 80W90 or SAE80W140 Oil to bring the oil level up and

even with the plug hole.

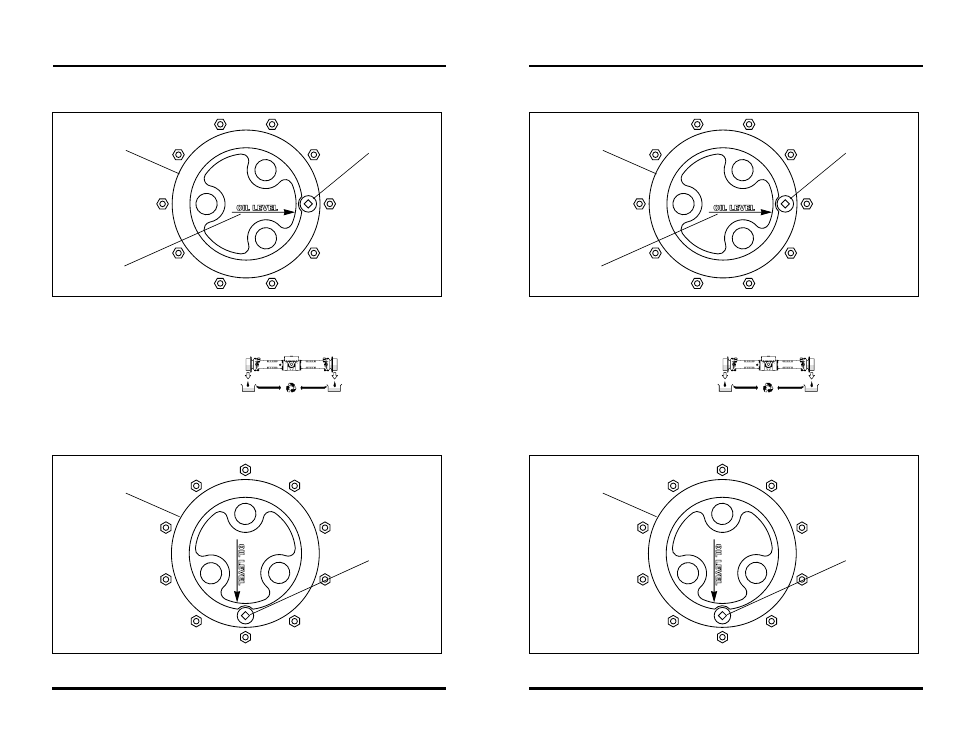

Figure 90

5. Clean and re-install the wheel end fill/drain plug.

B. Wheel End Oil Change

(1000 Hour Intervals)

1. Position the vehicle on level ground, move the vehicle forward or

backward enough to ensure that the wheel end fill/drain plug is in
the 6 o’clock position (Figure 91).

Figure 91

OS0710

Wheel End

Fill/Drain

Plug

Oil

Level

Line

Wheel End

OS0980

OS1020

Wheel End

Fill/Drain

Plug

Wheel End
