Operation
3606 Rev 11/99
25
OS2050

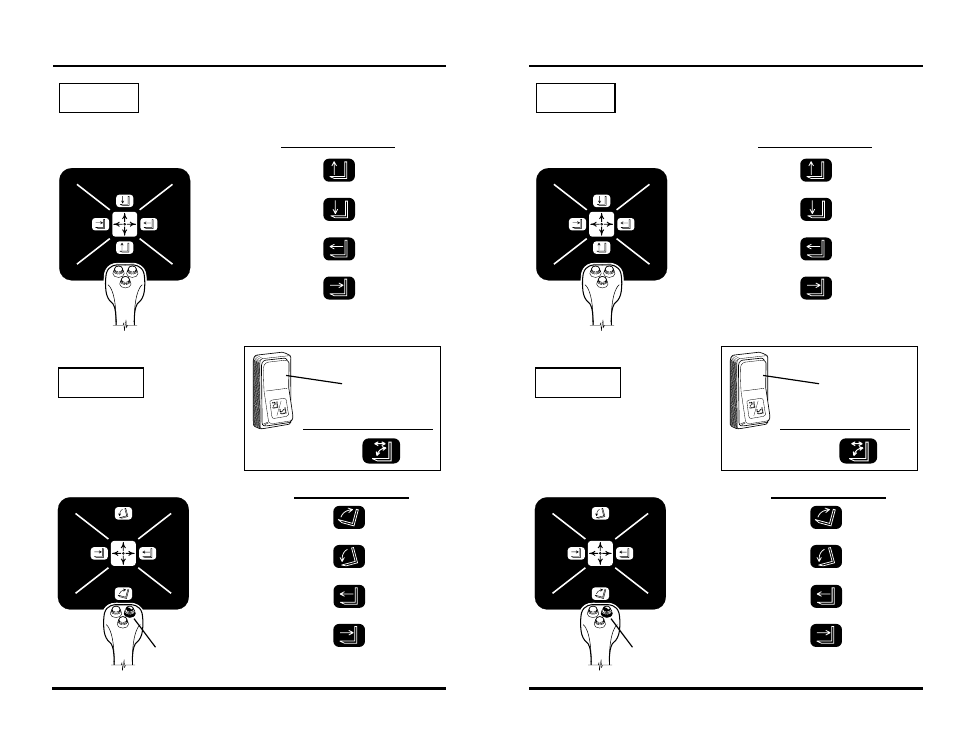

Boom Control (Default)
(No buttons depressed)
MODE 1
move handle
backward
move handle
forward
move handle
to the right
move handle
to the left
Boom Lift ...................
Boom Lower ..............
Boom Extend .............
Boom Retract .............
logic panel symbol
Attachment Tilt Up/Down
& Boom Extend/Retract
(Right button depressed)
MODE 2A
Attachment Tilt with
Extend & Retract
Attachment
Tilt Mode
Switch In
MODE 2A
display panel symbol
OS2060
move handle
backward
move handle
forward
move handle
to the right
move handle
to the left
Attachment Tilt Up ........
Attachment Tilt Down....
Boom Extend ................
Boom Retract ................
Depress
Right Button
logic panel symbol
Operation
3606 Rev 11/99
25
OS2050
Boom Control (Default)
(No buttons depressed)
MODE 1
move handle
backward
move handle
forward
move handle
to the right
move handle
to the left
Boom Lift ...................
Boom Lower ..............
Boom Extend .............
Boom Retract .............
logic panel symbol
Attachment Tilt Up/Down
& Boom Extend/Retract
(Right button depressed)
MODE 2A
Attachment Tilt with
Extend & Retract
Attachment
Tilt Mode
Switch In
MODE 2A
display panel symbol
OS2060
move handle
backward
move handle
forward
move handle
to the right
move handle
to the left
Attachment Tilt Up ........
Attachment Tilt Down....
Boom Extend ................
Boom Retract ................
Depress
Right Button
logic panel symbol
