36 3606 Rev 11/99
Operation

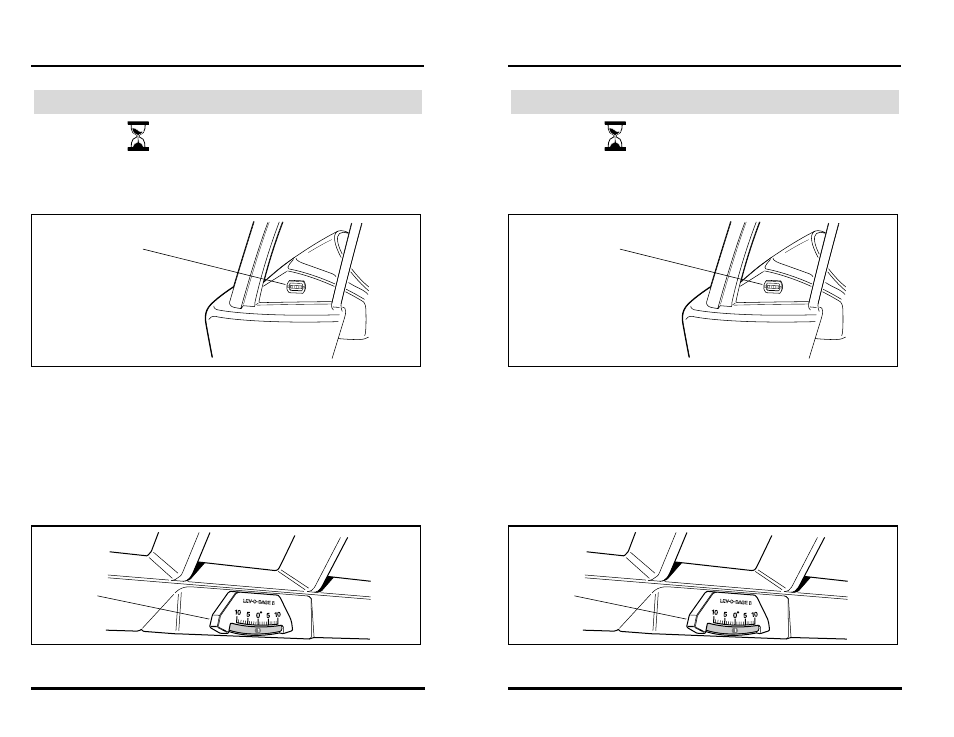

Hourmeter
(Figure 19)
The hourmeter records engine operating hours and has a total readout of
99,999.9 hours. It is located on the left side of the operators console and is
best viewed from outside the vehicle.
Figure 19
Frame Level Indicator
(Figure 20)
The frame level indicator is mounted on the top inside of the cab. This is a
bubble type indicator which allows the operator to tell if the vehicle has
been positioned in a level condition. Always sway (frame tilt) the vehicle
either right or left until the indicator reads zero degrees (0°). If zero cannot
be achieved, then reposition the vehicle until it is level before placing the
load.
Figure 20
Instruments and Indicators
OS0260
OS0750
Hourmeter
OS0232
Frame
Level
Indicator
