Operation
3606 Rev 11/99
33
Function Indicator Lights
(Figure 16)
There are three “hidden” function indicator lights in the display panel that
become illuminated only when a specific function has been activated. They
are:
A. Engine Preheat Indicator (Optional)
This light will begin to flash when the operator holds the ignition key
in the PREHEAT position. After 30 seconds the light will glow
steadily, indicating the engine is warm enough to start.
B. Parking Brake Indicator
This light becomes illuminated any time the parking brake switch is
applied and the ignition switch is ON.
C. Stabil-TRAK Indicator
This light becomes illuminated when the system has been
activated.

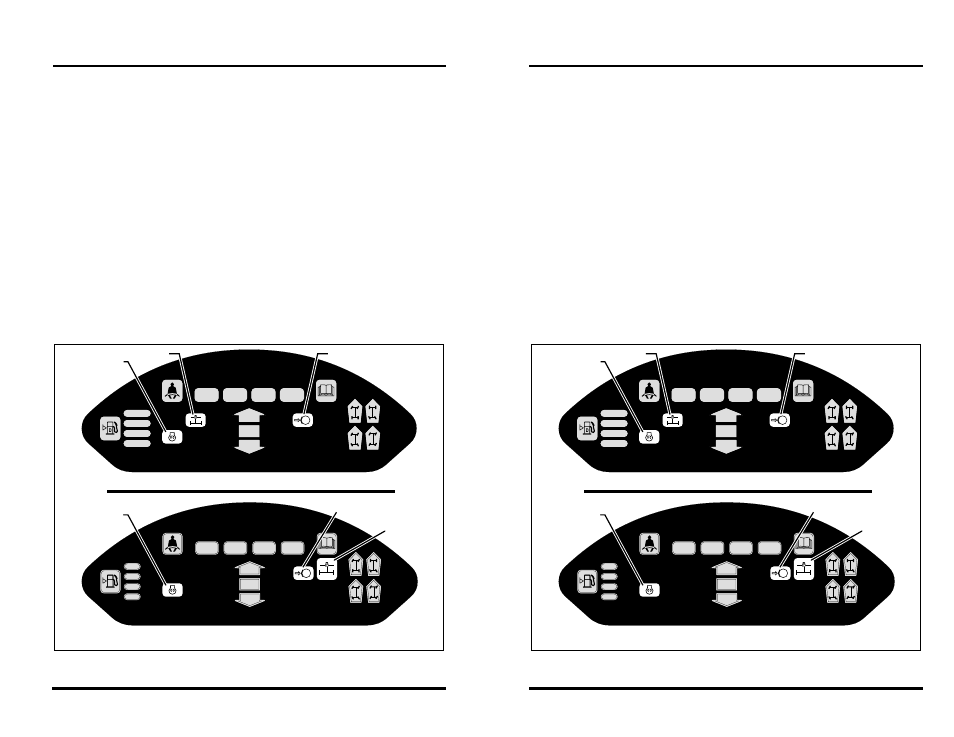

Figure 16
