SkyTrak 3606 Operation Manual - Manual (Page 34)

32 3606 Rev 11/99
Operation
Normal Operating Lights
(Figure 15)
After the engine has started, the display panel provides the operator with
information about:
A. Fuel Level Indicators
Make sure the vehicle is level to ensure an accurate fuel level
reading. Each bar represents 1/4 of the tank. The fuel level
indicator symbol will illuminate a low level GREEN light for night
visibility. When 1/8 tank is reached the last bar will turn OFF and the
fuel level indicator symbol will change from a GREEN indicator to
an intense ORANGE indicator light. Refuel at this point.
B. Travel & Gear Select Indicators
The light that illuminates indicates which direction the vehicle is
presently travelling and the gear presently engaged.
C. Steering Mode Indicators
The light that illuminates will indicate which steering mode is
presently engaged.
D. Attachment Tilt Mode Indicator
One of these two lights will be illuminated to indicate which
attachment tilt mode is presently engaged.

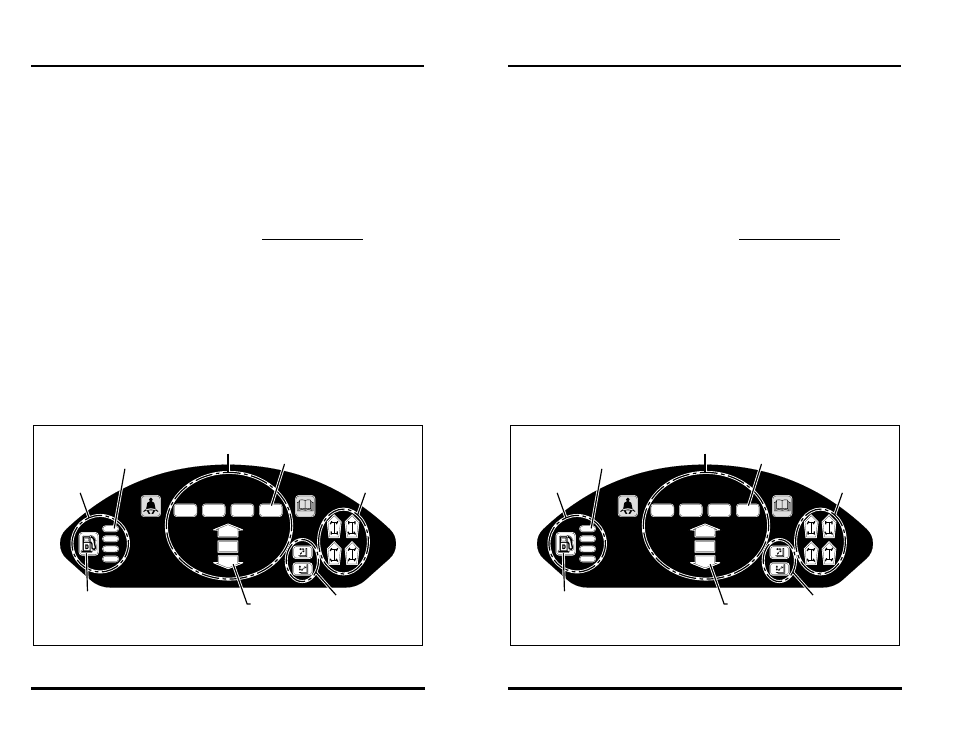

Figure 15
1 2 3 4
F
N
R
OS0211
Travel
Select Indicators
D
C
B
A
Fuel
Indicator
Symbol
Fuel Level
Indicator Bars
Gear Select
Indicators
32 3606 Rev 11/99
Operation
Normal Operating Lights
(Figure 15)
After the engine has started, the display panel provides the operator with
information about:
A. Fuel Level Indicators
Make sure the vehicle is level to ensure an accurate fuel level
reading. Each bar represents 1/4 of the tank. The fuel level
indicator symbol will illuminate a low level GREEN light for night
visibility. When 1/8 tank is reached the last bar will turn OFF and the
fuel level indicator symbol will change from a GREEN indicator to
an intense ORANGE indicator light. Refuel at this point.
B. Travel & Gear Select Indicators
The light that illuminates indicates which direction the vehicle is
presently travelling and the gear presently engaged.
C. Steering Mode Indicators
The light that illuminates will indicate which steering mode is
presently engaged.
D. Attachment Tilt Mode Indicator
One of these two lights will be illuminated to indicate which
attachment tilt mode is presently engaged.
Figure 15
1 2 3 4
F
N
R
OS0211
Travel
Select Indicators
D
C
B
A
Fuel
Indicator
Symbol
Fuel Level
Indicator Bars
Gear Select
Indicators
