Section III: Web Browser Management
250
Changing a PVID Value
The procedure in this section explains how to change a PVID value for a
switch port. As explained in Port-based VLAN Overview on page 120, a
port is assigned a PVID when it becomes an untagged port of a VLAN. A
port’s PVID will be the same as the VLAN’s VID. For example, if you assign
Port 4 on a switch as an untagged port to a VLAN with a VID of 7, the port
is automatically assigned a PVID also of 7.
The assignment of PVIDs is performed automatically by the AT-S25
software. There should be little need for you to manually change this
value. But the AT-S25 software does allow you to adjust the value if you
find it necessary.
To change the PVID for a port, perform the following procedure:
1. From the Home page, select Configuration.
2. From the Configuration page, select Layer 2.
3. From the Layer 2 page, select the COS tab.
A graphical image of the AT-8300 Series switch is displayed.
4. Click the port whose PVID value you want to change. You can select
only one port at a time.
A selected port turns white. (To deselect a port, click it again.)
5. Click Modify.
The COS Setting window in Figure 106 is displayed.

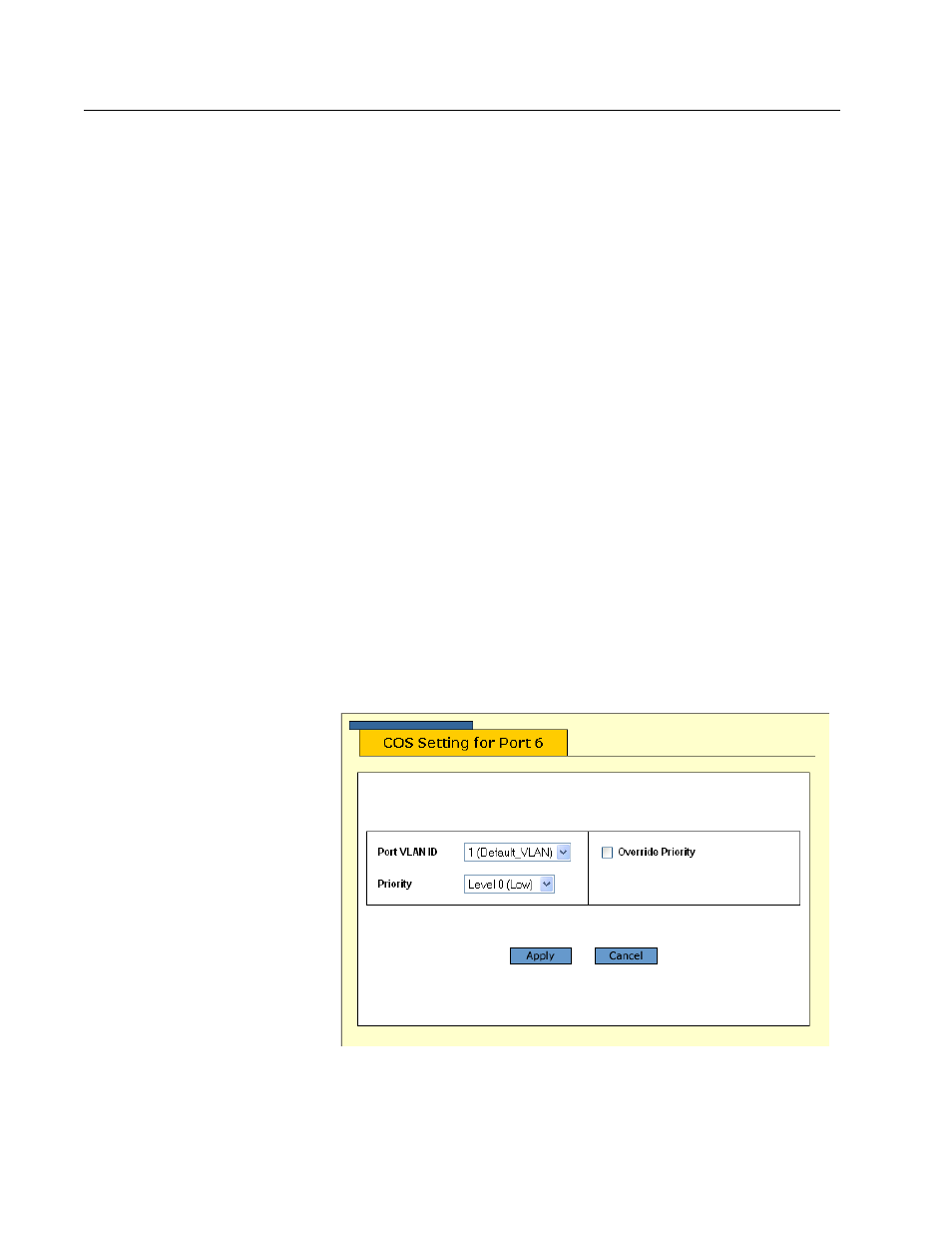

Figure 106 COS Setting Window
