Preface
22
7. From the local management interface menu bar, select Properties
from the File menu or click the Properties icon . The AT-S25
Properties window in Figure 3 is displayed.

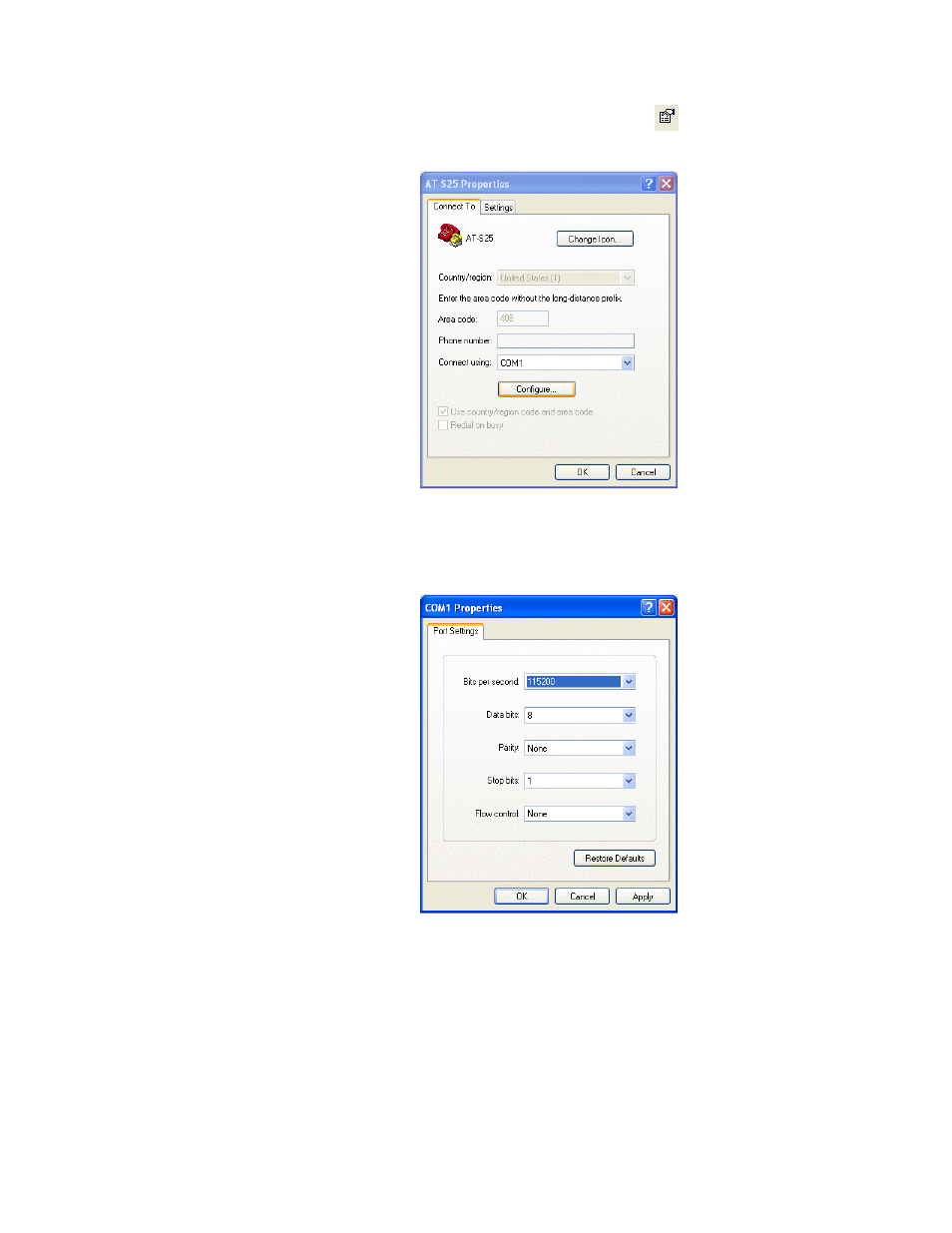

Figure 3 AT-S25 Properties Window
8. Click the Configure button. The Properties window of the connecting
COM in Figure 4 is displayed.
Figure 4 COM1 Properties Window
9. From the Bits per second pull-down list, select 115200; and click OK.
You are returned to the AT-S25 Properties.
10. In the AT-S25 Properties window, click OK. You are now returned to
the ATI Diagnostics menu in the HyperTerminal window.
