AT-S25 Management Software User’s Guide
115
The Display RSTP Port Configuration window in Figure 39 is
displayed.

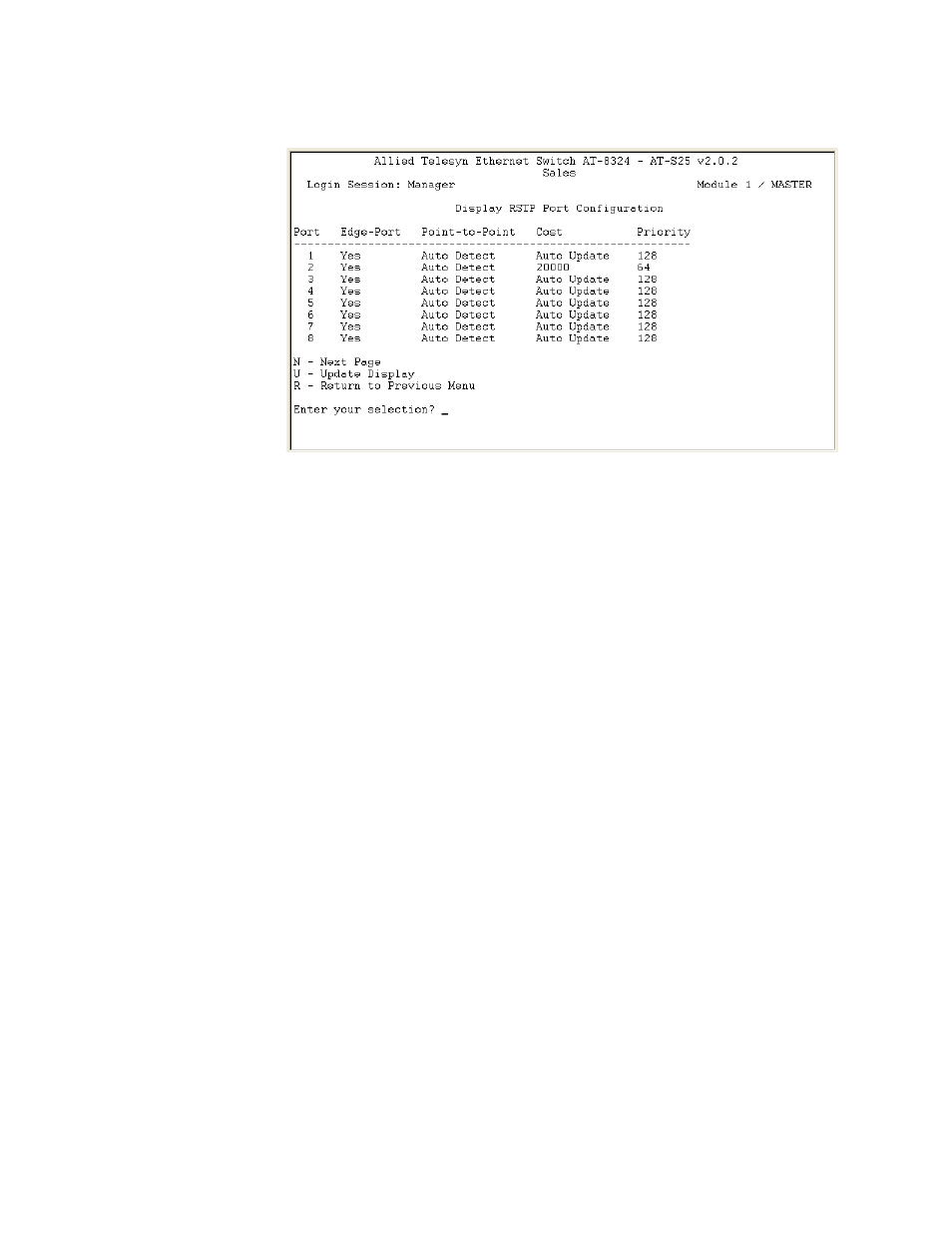

Figure 43 Display RSTP Port Configuration Window
The parameters displayed in this window are for viewing
purposes only. For description of the parameters, refer to Table 9,
STP and RSTP Parameters on page 102.
Displaying a
Port’s RSTP
Status
To display a port’s RSTP status, perform the following procedure:
1. From the Spanning Tree Menu, type 2 to select Active Protocol Version.
The following prompt is displayed:
Enter new value (S-STP, R-RSTP):
2. Type R to select RSTP.
3. Type 4 to select RSTP Configuration.
The RSTP Menu in Figure 40 on page 110 is displayed.
4. From the RSTP Menu, type P to select RSTP Port Parameters.
The RSTP Port Parameters window in Figure 41 on page 111 is
displayed.
5. From the RSTP Port Parameters window, type M if you wish to select
a module other than the one currently displayed.
The prompt message is displayed:
Select Module ID: [1 to 8] ->
6. Enter the ID of the module you wish to select, and press the Enter key.
