AT-S25 Management Software User’s Guide
205
Returning the AT-S25 Software to the Factory Default Values
The procedure in this section returns all AT-S25 software parameters,
except the IP address, subnet mask, and gateway address, to their
default values. This procedure also deletes any VLANs that you have
created on the switch.
Note
The AT-S25 software default values can be found in Appendix A,
AT-S25 Default Settings on page 272.
To return the AT-S25 management software to its default settings,
perform the following procedure:
1. From the Home Page, select Configuration.
The Configuration window is displayed with the System menu
option selected by default.
2. If the System menu option is not selected, select it and then select the
Factory Default tab.
The Factory Default tab in Figure 80 is displayed.

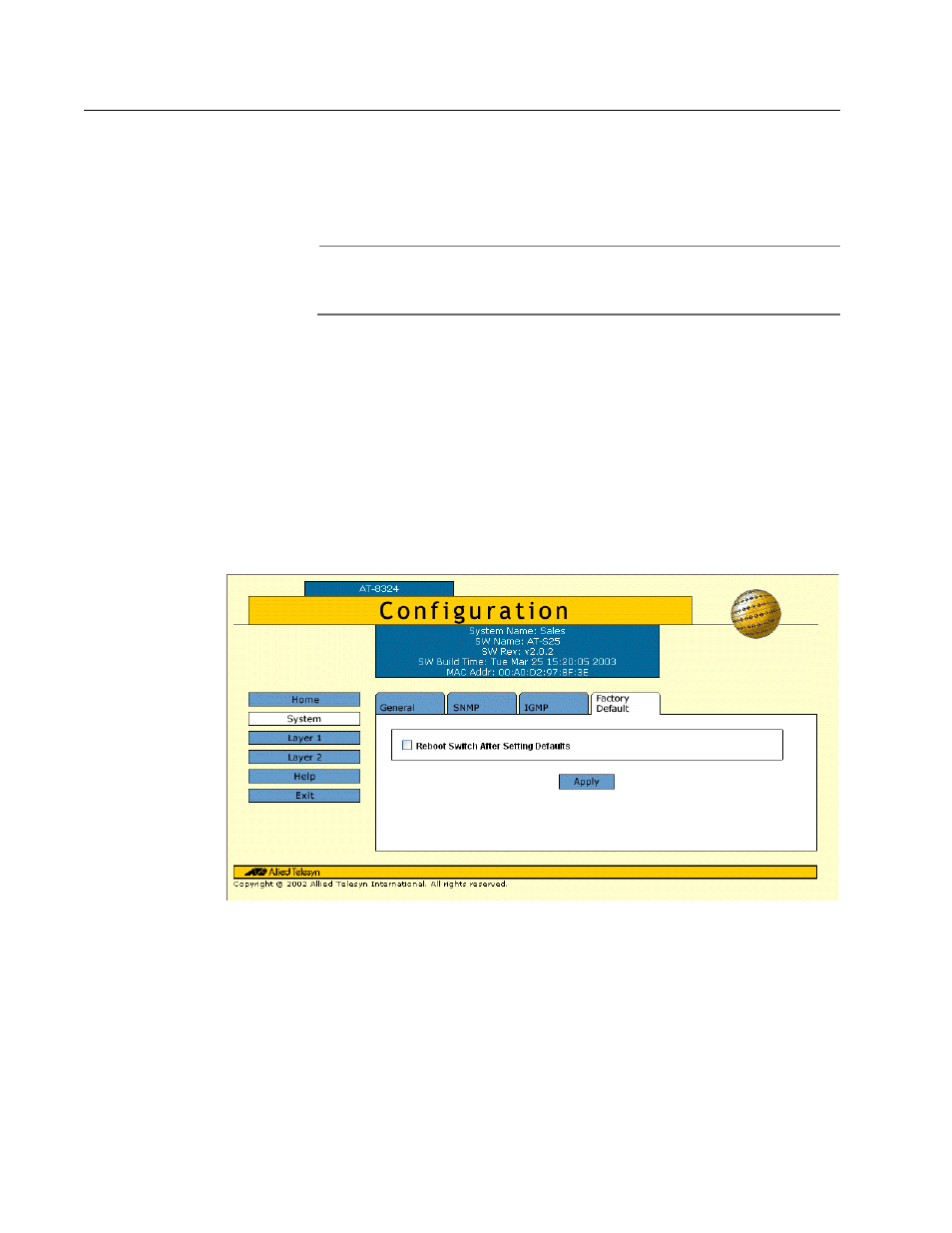

Figure 80 Configuration - Factory Default Window
3. Click the check box next to Reboot Switch After Setting Defaults.
4. Click Apply.
5. Follow the prompts.
